Overview

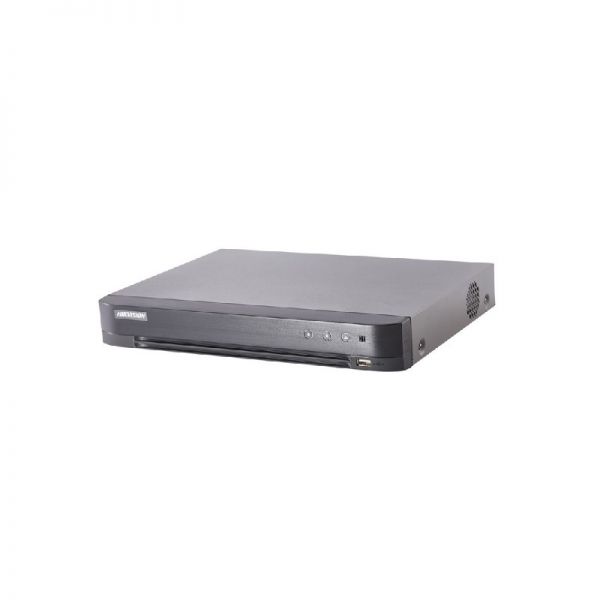

The Hikvision DS-7216HQHI-K1/E is a versatile 16-channel 1080p DVR, offering high-definition recording and playback with the efficient H.265 compression standard. Its 1U form factor ensures space efficiency, making it ideal for various surveillance applications. With robust features and reliable performance, the DS-7216HQHI-K1/E is the perfect addition to your security setup.

Quick Spec

Brand Hikvision
Model DS-7216HQHI-K1/E
Channels 16
Resolution 1080p
Compression H.265

Product Features

  • ● Supports 1080p and 720p recording resolutions
  • ● Efficient H.265 video compression
  • ● Remote access via multiple devices
  • ● Supports multiple HDDs for extended storage
  • ● 1U form factor for easy installation

Product Applications

  • ● Retail stores requiring high-definition video recording for security
  • ● Corporate offices for continuous surveillance and remote monitoring
  • ● Warehouses needing extensive storage and multi-channel recording capabilities

Supported Options

Accessory Model
External HDD Hikvision DS-HDD-5TB
Rack Mount Kit Hikvision RMK-1U
Power Supply Hikvision PS-12V/5A

Compare to Similar Items

Model Difference
DS-7208HQHI-K1/E 8 channels instead of 16
DS-7232HQHI-K2 32 channels, higher storage support
DS-7104HQHI-K1 4 channels, smaller form factor

Get more information

For further details on the Hikvision DS-7216HQHI-K1/E, including prices and datasheets, please contact us through Live Chat or email us at Contact@huatenmax.com. Check Hikvision DS-7216HQHI-K1/E price and DS-7216HQHI-K1/E datasheet, and buy Hikvision DS-7216HQHI-K1/E DVR with the best price and fast shipping. Free Live Chat support is available.

Specification

DS-7216HQHI-K1/E Specifications

Brand Hikvision
Model DS-7216HQHI-K1/E
Video Input and Transmission 16 channels
Compression H.265 / H.264
Video Output Resolution 1080p
Audio Input 1-channel, RCA (2.0 Vp-p, 1k??)
Audio Output 1-channel, RCA (Linear, 1k??)
HD-TVI Input 16-ch
HDMI Output 1-ch, 1920 ?? 1080
VGA Output 1-ch, 1920 ?? 1080
HDD Interface 1 SATA interface
Maximum Capacity Up to 10TB capacity per HDD
Ethernet 1 RJ-45 10/100 Mbps Ethernet interface
USB Interface 2 ?? USB 2.0
Power Supply 12V DC
Power Consumption ?? 20 W
Operating Temperature -10??C to +55??C (+14??F to +131??F)
Dimensions (W ?? D ?? H) 315 ?? 242 ?? 45 mm (12.40" ?? 9.53" ?? 1.77")
Net Weight (without HDD) ?? 1.16 kg (2.56 lb)
Installation 1U
Video Bit Rate 32 Kbps - 6 Mbps per channel
