AIR-AP1562I-E-K9

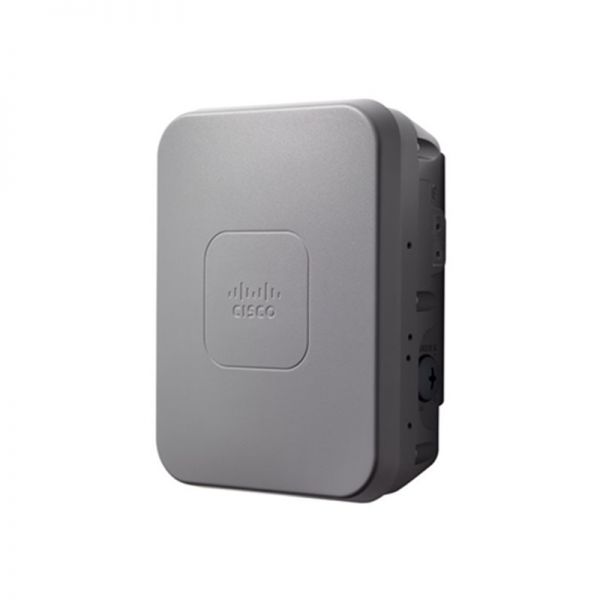

Model:AIR-AP1562I-E-K9 - Cisco Aironet 1562I Outdoor Access Point
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

The Cisco AIR-AP1562I-E-K9 is a robust and versatile 802.11ac Wave 2 Low-Profile Outdoor Access Point. With an integrated internal antenna, it is specifically designed to withstand the rigors of outdoor environments. The "E" Regulatory Domain ensures compliance with regional regulations. This access point is ideal for extending reliable Wi-Fi connectivity in various outdoor settings.

Quick Spec

BrandCisco
ModelAIR-AP1562I-E-K9
Frequency Band2.4 GHz / 5 GHz
Data RateUp to 1.3 Gbps
Antenna TypeInternal
Regulatory DomainE

Product Features

  • ● ● 802.11ac Wave 2 standard with MU-MIMO technology
  • ● ● Low-profile outdoor design with IP67 rating for dust and water resistance
  • ● ● Supports both 2.4 GHz and 5 GHz frequency bands
  • ● ● Built-in internal antennas for a streamlined appearance
  • ● ● Enhanced security features including WPA3 and secure boot

Product Applications

  • ● ● Public outdoor hotspots in parks, squares, and outdoor shopping areas
  • ● ● Campus environments that require robust outdoor connectivity
  • ● ● Outdoor event venues such as stadiums and concert arenas

Supported Options

AccessoryModel
Mounting BracketAIR-ACC1550-MNT
External AntennaAIR-ANT2524DW-R
Power InjectorAIR-PWRINJ6=

Compare to Similar Items

ModelDifferences
AIR-AP1562D-E-K9Differential external antennas, Dual Band operation
AIR-AP1552E-E-K9Legacy model with 802.11n support
AIR-AP1562I-B-K9Different regulatory domain (B)

Get more information

Check Cisco AIR-AP1562I-E-K9 price and AIR-AP1562I-E-K9 datasheet, buy Cisco AIR-AP1562I-E-K9 with best price and fast shipping. Free Live Chat are supported. For further information about the Cisco AIR-AP1562I-E-K9 and its pricing, please contact us through Live Chat or Contact@huatenmax.com.

Specification

AIR-AP1562I-E-K9 Specifications

Brand Cisco
Model AIR-AP1562I-E-K9
Wireless Standard 802.11ac Wave 2
Design Low-Profile Outdoor
Antenna Internal
Regulatory Domain E
Frequency Band 2.4 GHz and 5 GHz
Data Rate Up to 1.3 Gbps
Number of Radios 2
Ethernet Ports 2 x 10/100/1000BASE-T autosensing (RJ-45)
Powering Options 802.3at PoE+ and DC power
Environmental Rating IP67
Operating Temperature -40??C to +65??C (-40??F to +149??F)
Operating Humidity 0% to 100% (condensing)
Max Power Consumption 25.5 Watts
MIMO 3x3 multiple-input multiple-output (MIMO) technology
Beamforming Supported
Management Managed by Cisco Wireless LAN Controller
Encryption WPA/WPA2, AES
Security 802.1X, Radius, ACLs
Dimensions 8.5 x 6.8 x 5.0 inches
