Position：Home / Products / Switches / SMB Switches / Cisco Business 220 Series Smart Switches

  • Cisco CBS220-24FP-4G
  • Cisco CBS220-24FP-4G

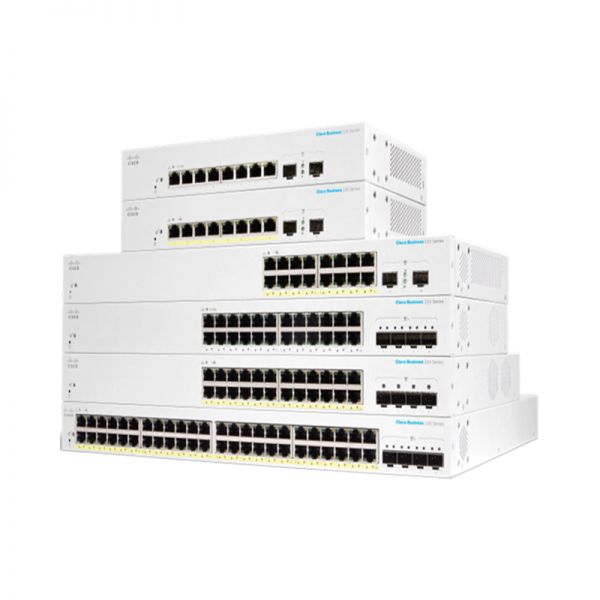

Cisco CBS220-24FP-4G

Model:Cisco CBS220-24FP-4G - Cisco Business 220 Series Smart Switches
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

The Cisco CBS220-24FP-4G is an ideal solution for small to medium-sized businesses looking for an efficient, reliable, and energy-saving switch. Equipped with 24 10/100/1000 ports and a power budget of 382W, it ensures seamless connectivity and high performance. With 4 Gigabit SFP ports, the switch provides versatile and scalable networking solutions. Its intuitive user interface makes it easy to deploy and manage for any network setup.

Quick Spec

Model Cisco CBS220-24FP-4G
Total Ports 24 10/100/1000 ports
Power Budget 382W
Uplink Ports 4 Gigabit SFP
Switching Capacity 52 Gbps

Product Features

  • 24 10/100/1000 PoE+ Ports
  • 382W Power Budget to support various devices
  • 4 Gigabit SFP Uplink Ports
  • User-friendly web-based management
  • Energy Efficient Design reducing power consumption

Product Applications

  • Ideal for small to medium-sized business networks requiring high performance and flexibility.
  • Perfect for powering devices such as IP cameras, IP phones, and wireless access points using Power over Ethernet (PoE).
  • Suitable for deployment in tight IT budget scenarios, offering affordable yet robust network management.

Supported Options

Cisco 10G SFP+ Module SFP-10G-SR
Cisco GLC-SX-MMD 1000BASE-SX SFP Transceiver GLC-SX-MMD
Cisco 1000BASE-T SFP Transceiver GLC-T

Compare to Similar Items

Cisco CBS220-24FP-4G Cisco CBS250-24FP-4G Cisco CBS350-24FP-4G
Total Ports 24 10/100/1000 24 10/100/1000 24 10/100/1000
Power Budget 382W 384W 384W
Uplink Ports 4 Gigabit SFP 4 Gigabit SFP 4 x 10G SFP+
Managed Basic Managed Smart Managed Fully Managed
Switching Capacity 52 Gbps 52 Gbps 128 Gbps

Get more information

For more information about the Cisco CBS220-24FP-4G, please contact us through Live Chat or at Contact@huatenmax.com. Check Cisco CBS220-24FP-4G price and CBS220-24FP-4G datasheet, buy Cisco CBS220-24FP-4G Switch with the best price and fast shipping. Free Live Chat support is available.

Specification

Cisco CBS220-24FP-4G Specifications

Brand Cisco
Model CBS220-24FP-4G
Ports 24 10/100/1000 ports
Power Budget 382W
Uplink Ports 4 Gigabit SFP
Management Web GUI
Switching Capacity 52 Gbps
Forwarding Capacity 38.69 Mpps
MAC Address Table 8K entries
Layer Support Layer 2
Power Over Ethernet (PoE) Standard IEEE 802.3af and 802.3at
Fan Fanless
Jumbo Frame Support Up to 9KB
QoS Quality of Service support
VLAN Support Yes
Spanning Tree Protocol IEEE 802.1D, 802.1w, 802.1s
Interface RJ-45
Dimensions 44.5 x 22.4 x 4.4 cm
Operating Temperature 0��C to 50��C
Mounting Rack-mountable
Warranty Limited Lifetime
