Position：Home / Products / Wireless / Cisco Wireless / Cisco Catalyst 9100 WiFi 6 Access Point

  • C9124AXD-B
  • C9124AXD-B

C9124AXD-B

Model:C9124AXD-B - Cisco Catalyst 9124 Series Access Points
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

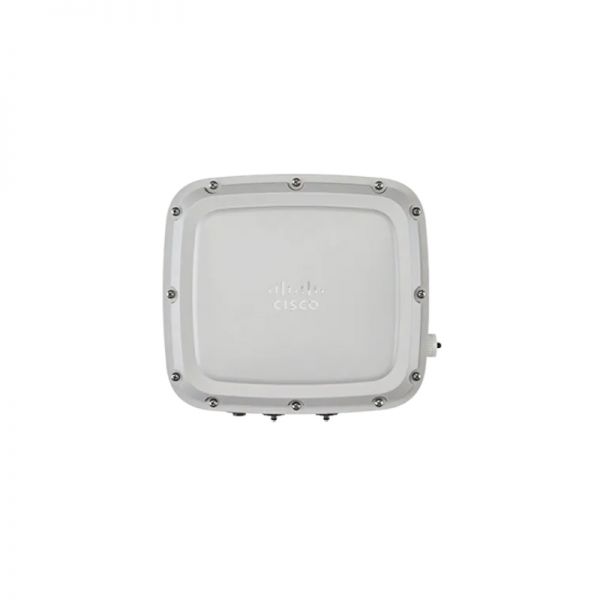

The Cisco Catalyst 9124AXD-B is a high-performance Wi-Fi 6 outdoor access point featuring a directional antenna, ideal for enterprises seeking robust outdoor connectivity. This device excels in providing reliable, high-speed internet access in harsh outdoor environments, making it perfect for stadiums, industrial complexes, and expansive outdoor venues. Its advanced features ensure seamless connectivity and enhanced user experience with the latest wireless standards.

C9124AXD-B Product Highlights
  • ● Wi-Fi 6 Technology
  • ● Directional Antenna
  • ● Outdoor Durability
  • ● High-Performance Networking
  • ● B Regulatory Domain
Product Features Comparison
Feature C9124AXD-B C9115AXI-E C9130AXI-B C9105AXI-Z C9120AXI-R
Wireless Standard Wi-Fi 6 Wi-Fi 6 Wi-Fi 6 Wi-Fi 6 Wi-Fi 6
Deployment Outdoor Indoor Indoor Indoor Indoor
Antenna Type Directional Omnidirectional Omnidirectional Omnidirectional Omnidirectional
Max Data Rate 5.38 Gbps 5.38 Gbps 5.38 Gbps 4.8 Gbps 5.38 Gbps
Operating Temperature -40°C to 65°C 0°C to 40°C 0°C to 40°C -20°C to 50°C 0°C to 40°C
Power over Ethernet Yes Yes Yes Yes Yes
C9124AXD-B Product Application Scenarios
  • ● Outdoor stadium connectivity
  • ● Industrial complex coverage
  • ● Large outdoor events
Optional Add-ons
Model Description
AIR-PWR-50 50W Power Adapter
AIR-ANT2544V4M-R Outdoor Omnidirectional Antenna
AIR-BRKT-50 Wall Mount Kit
Get More Information

Discover unbeatable prices and fast shipping for the Cisco C9124AXD-B. Access the detailed C9124AXD-B datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at Contact@huatenmax.com.

Specification

C9124AXD-B Specifications

Model Number C9124AXD-B
Product Name Cisco Catalyst 9124 Wi-Fi 6 Outdoor Access Point
Regulatory Domain -B (For specific regions)
Wi-Fi Standard 802.11ax (Wi-Fi 6)
Frequency Bands 2.4 GHz, 5 GHz
Antenna Type Directional
Maximum Data Rate Up to 5.4 Gbps
MIMO 4x4
Ethernet Ports 1x 10/100/1000 Base-T
Management Interface Cisco DNA Center, CLI, Web UI
Power Options 802.3at PoE, DC input
Environmental Rating IP67
Operating Temperature Range -40°C to 65°C
Dimensions (H x W x D) 13.0 in x 13.0 in x 4.4 in
Transmit Power Up to 23 dBm
Security Features WPA3, AES Encryption, 802.1X
Operating System Cisco IOS XE
Supported Data Rates 6.5 Mbps to 3.5 Gbps (802.11ax)
Compliance FCC, CE
Warranty Limited Lifetime
Software Features Flexible Radio Assignment, CleanAir, RRM
