ASR1006-X

Overview

ASR1006-X is a Cisco ASR1006-X Chassis. The Cisco ASR 1006-X Router in a 6-rack unit (RU) form factor is providing the most flexible edge routing solution in the Cisco ASR 1000 Series. It supports: dual routing processors, embedded services processor, up to 100 Gbps throughput, up to 8 shared port adapters (SPAs), and the highest port density solution of the three Cisco ASR 1000 Routers.

Quick Spec

Table 1 shows the quick spec.

Part Number

ASR1006-X

Route Processor

2 route-processor slots

Cisco ASR 1000 Series ESP

2 ESP slots

Ethernet Port Adapters

4 EPA slots

Shared Port Adapters

8 SPA slots

Number of SIPs or Ethernet line cards supported

2

Default Memory

8-GB DRAM RP2

8-GB DRAM RP3

Dimension

Height: 10.47 in. (265.9 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Weight

36.5 lb empty

Product Details

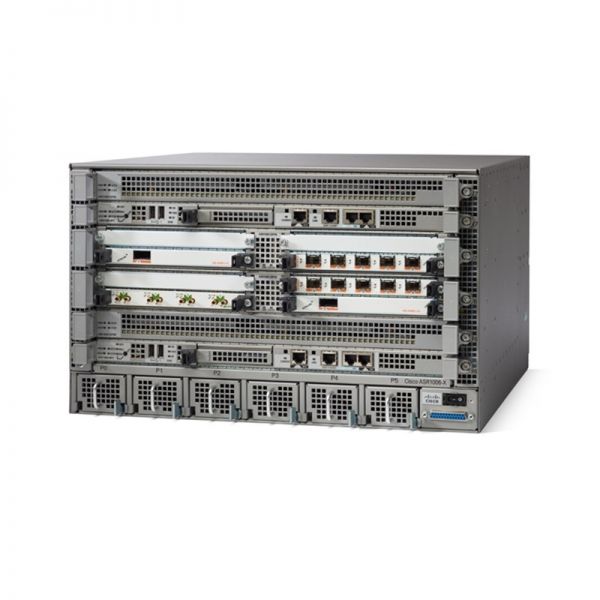

Figure 1 shows the appearance of ASR1006-X. It’s only a chassis. Those modules need to be purchased separately.

ASR1006-X Front View

Figure 2 shows the back view of ASR1006-X.

The Cisco ASR 1006-X Router can support up to six AC or six DC power supplies. The chassis does not support mixed AC and DC configuration.

ASR1006-X Back View

The Modules, Cards and Accessories

Table 2 shows the recommended modules, cards and accessories of ASR1006-X.

Model

Description

Card

ASR1000-RP2

Cisco ASR1000 Route Processor 2, 8GB DRAM

ASR1000-RP3

Cisco ASR1000 Route Processor 3

ASR1000-SIP40

Cisco ASR1000 SPA Interface Processor 40

License

FLASR1-SBC-16K

Cisco ASR 1000 License FLASR1-SBC-16K

FLASR1-CUBEE-100R

Cisco ASR 1000 License FLASR1-CUBEE-100R

FLASR1-IPB-AESK9

Cisco ASR 1000 Upgrade License FLASR1-IPB-AESK9

Embedded Services Processor

ASR1000-ESP100=

Cisco ASR1000 Embedded Services Processor, 100G

ASR1000-ESP40

Cisco ASR1000 Embedded Services Processor, 40G

Compare to Similar Item

Table 3 shows the comparison.

Models

ASR1006-X

ASR1001-X

Rack Height

6U

1U

SFP Ports

N/A

6 x 1 G

SPA slots

8

1

ESP Slots

2

Integrated

RP Slots

2

Integrated

Get more information

Do you have any question about the Cisco ASR1006-X?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

ASR 1006-X Specification

Dimension

Height: 10.47 in. (265.9 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Default memory

8-GB DRAM RP2

8-GB DRAM RP3

Number of SIPs or Ethernet line cards supported

2

Shared port adapters

8 SPA slots

Ethernet port adapters

4 EPA slots

Cisco ASR 1000 Series ESP

2 ESP slots

Route processor

2 route-processor slots

Redundancy

Hardware: Yes

Built-in Gigabit Ethernet ports

0

Built-in 10 Gigabit Ethernet port

No

Network interface module

No

ESP support

Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) and
Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100)

ESP bandwidth

40 to 100 Gbps

ESP memory

Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40):
8-GB DRAM

Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM

SIPs and Ethernet line cards

Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), Cisco ASR1000 Series MIP 100-Gbps Carrier Card (ASR1000-MIP100), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE line cards (ASR1000-2T+20X1GE); and six 10 GE line cards (ASR1000-6TGE)

Embedded hardware-based encryption

Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput

Minimum Cisco IOS XE Software release

Cisco IOS XE Software Release 3.16.0

Rack-mounting

Yes: 19-inch

Wall-mounting

No

External USB flash memory

1-GB USB flash-memory support

Redundant power supply

Yes: Dual power supplies by default, expandable up to a total of six, depending on configuration and redundancy preferences; option of either 1100W AC or 950W DC

Note: A mix of AC and DC power supplies is not supported.

Power input

Worldwide ranging AC input range (85 to 264 VAC)

Worldwide ranging DC

(-40 to -72; -48V nominal)

Power consumption

●  Maximum (DC): 4600W

●  Maximum (AC): 4500W

Airflow

Front-to-back

Operating temperature (nominal)

Same as for Cisco ASR 1001-X

Operating temperature (short-term)

Same as for Cisco ASR 1001-X

Operating humidity (nominal) (relative humidity)

Same as for Cisco ASR 1001-X

Operating humidity (short-term)

Same as for Cisco ASR 1001-X

Storage temperature

Same as for Cisco ASR 1001-X

Storage humidity (relative humidity)

Same as for Cisco ASR 1001-X

Operating altitude

Same as for Cisco ASR 1001-X

Network Equipment Building Standards (NEBS)

GR-1089 and GR-63

EMC standards

Same as for Cisco ASR 1001-X

Safety Standard

UL60950-1

CSA C22.2 No. 60950-1-03

EN 60950-1

IEC 60950-1

AS/NZS 60950.1
