Position：Home / Products / Routers / Cisco Routers / Cisco Router ASR 9000

  • A9K-RSP-8G
  • A9K-RSP-8G

A9K-RSP-8G

Quote | Help
Overview

A9K-RSP-8G is the Cisco ASR 9000 Equipment ASR9K Fabric, Controller with 8G memory. Cisco ASR 9000 Series Route Switch Processor (RSP) is a scalable, low-power, next-generation Carrier Ethernet platform with a system architecture specifically designed to accommodate service providers’ unique convergence requirements of Layer 2 Ethernet transport plus Layer 3 services.

Quick Specs

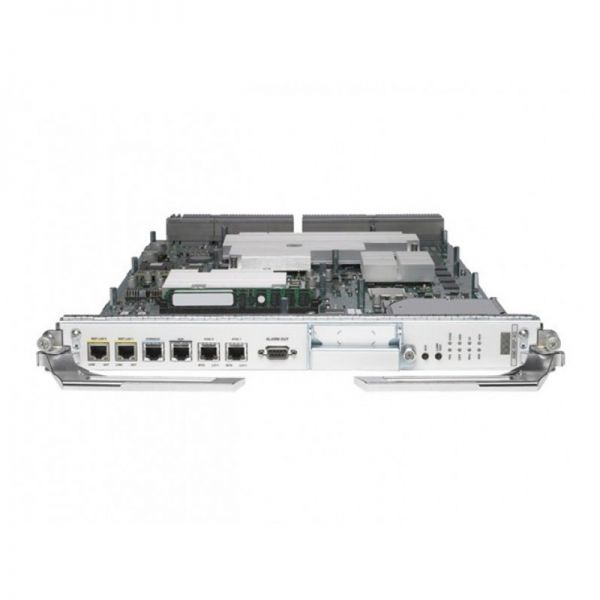

This figure shows the appearance of A9K-RSP-8G.

A9K-RSP-8G

Table 1 shows the quick specs.

Model

A9K-RSP-8G

Type

Cisco ASR 9000 Equipment ASR9K Fabric, Controller with 4G memory

Memory internal

8-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP-8G

Hard disk: 40-GB SAS HDD

4-GB eUSB Flash memory

Memory external

1-GB Compact Flash

Timing (two independent clock source connections)

RJ-45 connector for external timing reference interfaces (for example, BITS/SSU)

Compatibility

Table 2 shows the compatibility products of A9K-RSP-8G.

Model

Description

ASR-9010-DC

Cisco ASR 9010 DC Chassis

ASR-9010-DC-V2

ASR 9010 DC Chassis with PEM Version 2

ASR-9010-AC

Cisco ASR 9010 AC Chassis

ASR-9010-AC-V2

ASR 9010 AC Chassis with PEM Version 2

ASR-9006-DC

Cisco ASR 9006 DC Chassis

ASR-9006-DC-V2

ASR-9006-DC-V2 ASR 9006 DC Chassis with PEM Version 2

ASR-9006-AC

Cisco ASR 9006 AC Chassis

ASR-9006-AC-V2

ASR-9006-AC-V2 ASR 9006 AC Chassis with PEM Version 2

Compare to Similar Item

Table 3 shows the comparison between A9K-RSP-4G and A9K-RSP-8G.

Model

A9K-RSP-4G

A9K-RSP-8G

Type

Cisco ASR 9000 Equipment ASR9K Fabric, Controller with 4G memory

Cisco ASR 9000 Equipment ASR9K Fabric, Controller with 8G memory

Memory internal

4-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP-4G

Hard disk: 40-GB SAS HDD

4-GB eUSB Flash memory

8-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP-8G

Hard disk: 40-GB SAS HDD

4-GB eUSB Flash memory

Memory external

1-GB Compact Flash

Timing (two independent clock source connections)

RJ-45 connector for external timing reference interfaces (for example, BITS/SSU)

1-GB Compact Flash

Timing (two independent clock source connections)

RJ-45 connector for external timing reference interfaces (for example, BITS/SSU)

Get more information

Do you have any question about the Cisco A9K-RSP-8G

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

A9K-RSP-8G Specifications

CPU

◦ High-performance dual-core processors

Memory internal

◦ 8-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP-8G

◦ Hard disk: 40-GB SAS HDD

◦ 4-GB eUSB Flash memory

Memory external

◦ 1-GB Compact Flash

◦ Timing (two independent clock source connections)

◦ RJ-45 connector for external timing reference interfaces (for example, BITS/SSU)

Management

◦ Two 10/100/1000 BASE-T (RJ-45) LAN management ports

◦ One console port

◦ One auxiliary port

Alarms

Alarm outputs: Critical alarm (CR), major alarm (MJ), and minor alarm (MN)

LEDs

◦ Amber alarm cut-off (ACO) and lamp test

◦ System synchronization alarm (SYNC)

◦ Compact Flash activity (CF)

◦ Hard Disk Drive (HDD)

◦ Fan tray visual indicator (UFAN/LFAN)
