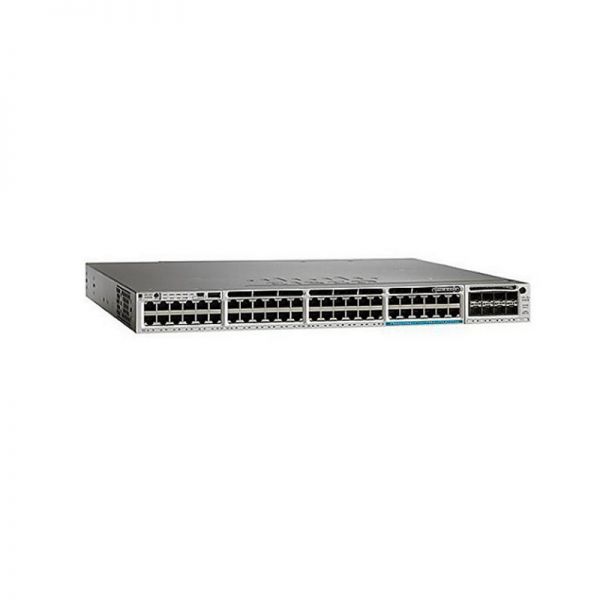

Model:WS-C3850-12X48UW-S Catalyst 3850 Switch
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com1

Live Chat
Overview

Cisco WS-C3850-12X48UW-S provides Stackable 12 100M/1G/2.5G/5G/10G and 36 1 G UPoE ports, 1 network module slot, 5 AP license, and 1100 W power supply. Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data? Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise?-480 technology.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

WS-C3850-12X48UW-S

Enclosure Type

1 RU

Feature Set

IP Base

Ports

12 100M/1G/2.5G/5G/10G and 36 1 G UPoE ports

Performance

Switching capacity: 176 Gbps | Stacking bandwidth: 480 Gbps

RAM

4GB

Flash Memory

2GB

Dimension

Width: 17.5 in

Depth: 19.2 in

Height: 1.8 in

Compare to Similar Item

Table 2 shows the comparison.

Product Code

WS-C3850-12X48U-S

WS-C3850-12X48UW-S

Enclosure Type

1 RU

1 RU

Feature Set

IP Base

IP Base

Ports

12 100M/1G/2.5G/5G/10G and 36 1 G UPoE ports

12 100M/1G/2.5G/5G/10G and 36 1 G UpoE ports

Switching capacity

176 Gbps

176 Gbps

RAM

4GB

4GB

Flash Memory

2GB

2GB

Bundle

None

5 AP License

Switch to Something New

Why Upgrade to Catalyst 9300??|?See the Catalyst 9300 Series?

Get more information

Do you have any question about the WS-C3850-12X48UW-S?

Contact us now via?Live Chat?or?Contact@huatenmax.com.

Specification

WS-C3850-12X48UW-S Specification

Description

Stackable 12 100M/1G/2.5G/5G/10G and 36 1 G UPoE ports, 1 network module slot, 1100 W power supply with 5 AP License

Ports

Stackable 12 100M/1G/2.5G/5G/10G and 36 1 G UPoE ports

Performance

Switching capacity: 176 Gbps ¦ Stacking bandwidth: 480 Gbps

Dimensions & Weight

Width: 17.5 in

Depth: 19.2 in

Height: 1.8 in

Weight: 17.64 lbs

Environmental Parameters

Min Operating Temperature: 23 °F

Max Operating Temperature: 113 °F

Humidity Range Operating: 10 - 95% (non-condensing)

Min Storage Temperature: -40 °F

Max Storage Temperature: 158 °F

PoE Power

60W

RAM

4 GB

Flash Memory

2 GB

Miscellaneous

MTBF: 202,030 hours

Compliant Standards: CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition,

EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GOST,

ICES-003 Class A, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM, RoHS,

UL 60950-1 Second Edition, VCCI Class A

Software

Cisco IOS IP Base

Power

Power Device: Internal power supply

Installed Qty: 1 (installed) / 2 (max)

Power Redundancy: Optional

Power Redundancy Scheme: 1+1 (with optional power supply)

Power Provided: 1100 Watt

Voltage Required: AC 120/230 V (50/60 Hz)

Features: Rear-to-front airflow
