Position：Home / Products / Switches / Cisco Switches / Cisco Switch Catalyst 6500

  • WS-C6509E-S32P10GE (USED)
  • WS-C6509E-S32P10GE (USED)

WS-C6509E-S32P10GE (USED)

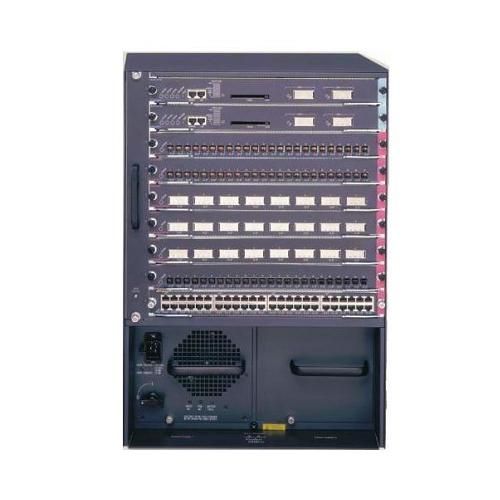

Model:WS-C6509E-S32P10GE Cisco 6500 Switch
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com1

Live Chat
Overview

The Cisco WS-C6509E-S32P10GE (USED) is a high-performance network switch from the renowned Cisco Catalyst series. It features exceptional reliability and flexibility, ideal for enterprise-level data centers and complex networking environments. Designed for engineers and network administrators, this used switch offers substantial cost savings while maintaining top-tier performance for demanding usage scenarios.

WS-C6509E-S32P10GE Product Highlights
  • ● Expandable chassis design
  • ● Integrated 10GE ports
  • ● Advanced PISA functionality
  • ● Redundant fan trays
  • ● High throughput capacity
Product Features Comparison
Feature WS-C6509E-S32P10GE WS-C4507R+E WS-C3650-24TD WS-C3850-12XS WS-C6880-X-LE WS-C2960X-48TS
Chassis Type Modular Modular Fixed Fixed Fixed Fixed
10GE Ports Integrated Upgradable No Yes Configurable No
Fan Tray Redundant Redundant Internal Internal Redundant Internal
Throughput High Medium Medium High Very High Medium
PISA Support Yes No No No No No
Power Supply Required Required Built-in Built-in Required Built-in
WS-C6509E-S32P10GE Product Application Scenarios
  • ● Enterprise data center network infrastructure
  • ● High-performance campus core switch
  • ● Scalable service provider networks
Optional Add-ons
Model Description
WS-X6724-SFP 24-port Gigabit Ethernet module
WS-F6700-CFC Centralized Forwarding Card
WS-CAC-6000W 6000W AC power supply unit
Get More Information

Discover unbeatable prices and fast shipping for the Cisco WS-C6509E-S32P10GE (USED). Access the detailed WS-C6509E-S32P10GE datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at Contact@huatenmax.com.

Specification

WS-C6509E-S32P10GE (USED) Specifications

Product Type Modular Switch
Chassis Type Cat6509E
Supervisor Engine WS-S32-10GE-PISA
Slots 9
Performance 720 Gbps
Bandwidth per Slot 40 Gbps
High-Availability Features Redundant Power Supply, Hot-swappable Fan Tray
Fan Tray Included (requires power supply)
Interface Options 10GE, GE, Fast Ethernet, Voice
Power Supply Options AC, DC (requires separate purchase)
Form Factor Rack-mountable
Layer Supported Layer 2 and Layer 3
Routing Protocols BGP, OSPF, EIGRP, RIP
Network Management CLI, SNMP, CiscoWorks
QoS 8 queues per port
Switching Capacity 720 Gbps
Forwarding Rate 400 Mpps
Max VLANs Supported 4000
MTBF 47,600 hours
Operating Temperature 0°C to 40°C (32°F to 104°F)
