Position：Home / Products / Switches / Cisco Switches / Cisco Switch Catalyst 6500

  • WS-C6506E-IPSF-K9 (USED)
  • WS-C6506E-IPSF-K9 (USED)

WS-C6506E-IPSF-K9 (USED)

Quote | Help
Overview

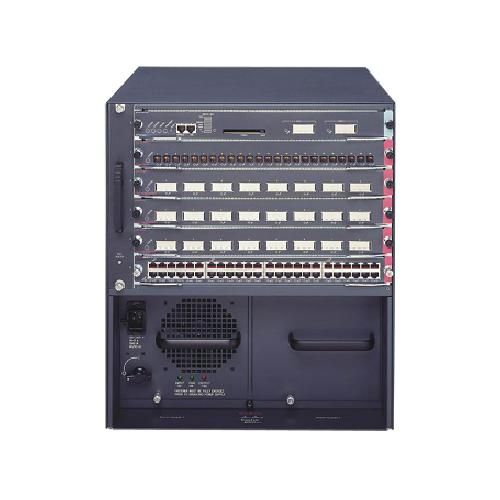

The Cisco WS-C6506E-IPSF-K9, a used network switch, delivers reliable performance with its 6506E chassis, four IDSM-2 modules, Supervisor Engine 32, and eight Fiber SFP ports. It is ideal for enterprise environments requiring robust, scalable, and secure network management solutions.

WS-C6506E-IPSF-K9 Product Highlights
  • ● 6506E Chassis
  • ● 4 x IDSM-2 Modules
  • ● Supervisor Engine 32
  • ● 8 Fiber SFP Ports
  • ● Power Supply Included
Product Features Comparison
Feature WS-C6506E-IPSF-K9 WS-C6509-E WS-C4510R+E WS-C4507R+E WS-C3850-48P WS-C3650-24PD WS-C2960X-48TS
Chassis 6506E 6509-E 4510R+E 4507R+E 3850 3650 2960X
Supervisor Engine Sup32 Sup2T Sup8-E Sup7-E Sup3 Sup3 Fixed
SFP Ports 8 48 10 10 4 2 4
IDSM-2 Modules 4 4 (Optional) 2 (Optional) 2 (Optional) None None None
Power Supply Included Included Included Included Included Included Included
Usage Enterprise Enterprise Enterprise Enterprise Branch/SME Branch/SME Branch/SME
WS-C6506E-IPSF-K9 Product Application Scenarios
  • ● Enterprise network management
  • ● Data center operations
  • ● Security monitoring
Optional Add-ons
Accessory Model Description
WS-X6516A-GBIC 16-Port GBIC Ethernet Module
WS-X6724-SFP 24-Port GigE Module (SFP)
C3K-PWR-750WAC 750W AC Power Supply
Get More Information

Discover unbeatable prices and fast shipping for the Cisco WS-C6506E-IPSF-K9. Access the detailed WS-C6506E-IPSF-K9 datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at Contact@huatenmax.com.

Specification

WS-C6506E-IPSF-K9 (USED) Specifications

Brand Cisco
Model WS-C6506E-IPSF-K9
Condition Used
Chassis Cisco 6506E
Supervisor Engine Sup32
Intrusion Detection Modules 4 x IDSM2
Ports 8 Fiber SFP
Power Supply Included
Layer Support Layer 2 and Layer 3
Rack Units 9U
Forwarding Rate 15 Mpps (million packets per second)
Switch Fabric Capacity 32 Gbps
Flash Memory 512 MB
DRAM 1 GB
Redundancy Supports redundant power supplies
VLANs 4096 VLAN IDs
MTBF (Mean Time Between Failures) 100,000 hours
MAC Address Table Size 64,000 entries
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Relative Humidity 10% to 90%, non-condensing
Dimensions (H x W x D) 15.75 x 17.3 x 21.2 inches (400 x 439 x 538 mm)
Installation 19-inch rack-mountable
