Position：Home / Products / Unified Communications / Cisco Unified Communications / Cisco Webex

  • CS-KIT-K9
  • CS-KIT-K9

CS-KIT-K9

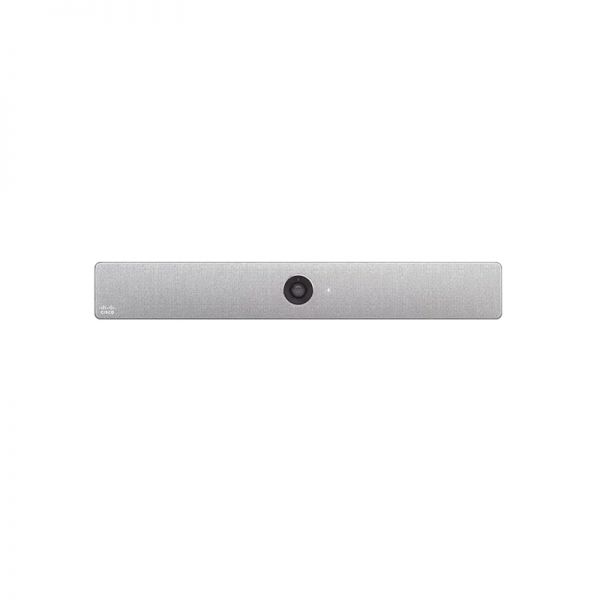

Model:CS-KIT-K9 - Cisco Webex Room Kit
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com1

Live Chat
Overview

The CS-KIT-K9 is a part of Cisco's Webex Room Kit series. These kits provide a range of features to enhance video conferencing experiences, including powerful cameras and microphones. This product is designed to elevate your meeting experience with high-quality video and audio.

Product Features

  • ● Smart meetings: Powerful, integrated cameras deliver intelligent view capabilities, such as automatic framing and speaker tracking; automatic noise suppression reduces meeting disruptions
  • ● Smart presentations: Ideal to pair with dual screens while supporting dual content sources, wireless sharing, and 4K content make for great presentations
  • ● Smart rooms: People count for usage metrics and resource allocation; tight integrations with screens to enhance user interactions; APIs and macros allow meeting personalization
  • ● Registration flexibility: Built for both cloud and on premises deployment, protecting your investment

Quick Spec

Table 1 shows the quick spec of the CS-KIT-K9.
Product Code CS-KIT-K9
Manufacturer Cisco
Description Cisco Webex Room Kit Upfront pricing (GPL)

Supported Options

Table 2 shows the supported options.

Cisco Table Microphone with 4-pin mini jack connector, 7.5 meters cable

CS-MIC-TABLE-J=

Cisco Table Microphone with 4-pin Euroblock connector, 9 meters cable

CS-MIC-TABLE-E=

Cisco Table Microphone extension cable for the 4-pin mini jack cables, 9 meters

CAB-MIC-EXT-J=

Cisco Table Microphone extension cable for the 4-pin mini Euroblock cables, 9 meters

CAB-MIC-EXT-E=

Second screen 1.5 m HDMI 2.0 certified cable

CAB-2HDMI-1.5M-GR

Presentation cable 8 m 4kp30 certified

CAB-PRES-2HDMI-GR

Get More Information

Do you have any question about the CS-KIT-K9 price?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

CS-KIT-K9 Specifications

Software compatibility

Cisco Collaboration Endpoint Software Version 9.14.5 or later, and Webex Room OS

Default components in Webex Room Kit

Default components in Webex Room Kit

Optional hardware components
●  Cisco Table Microphone
●  Microphone extension cable
●  HDMI second monitor cable 1.5 m/4.9 ft.
●  HDMI presentation cable 8 m/26.2 ft.

Bandwidth
●  Up to 6 Mbps point-to-point

Minimum bandwidth for resolution / frame rate
●  H.264:
●  720p30 from 768 kbps
●  720p60 from 1152 kbps
●  1080p30 from 1472 kbps
●  1080p60 from 2560 kbps

Firewall traversal
●  Cisco Expressway ™ technology
●  H.460.18, H.460.19 firewall traversal

Video standards
●  H.264, H.265

Video inputs
●  One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60
●  Consumer Electronics Control (CEC) 2.0

Video outputs
●  Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
●  Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p)
●  Consumer Electronics Control (CEC) 2.0

Audio standards
●  G.711, G.722, G.722.1, G.729, AAC-LD, and Opus

Audio features
●  High-quality 20 kHz audio
●  Prepared for subwoofer (line out)
●  Prepared for inductive loop (line out)
●  Automatic Gain Control (AGC)
●  Automatic noise reduction
●  Active lip synchronization

Audio inputs
●  Two microphones, 4-pin mini-jack
●  One audio in from HDMI
●  Internal microphone
●  Bluetooth ® - Not available on Non Radio Version *

Audio outputs (external)
●  1 line out mini-jack (stereo)
●  Bluetooth ® - Not available on Non Radio Version *

Speakers (integrated)
●  High-quality speakers: five speakers in balanced configuration
●  Frequency response 70 Hz to 20 kHz
●  Amplifier power: 24W
●  Max output level SPL 86 dB

Speaker tracking
●  6-element microphone array for accurate speaker tracking

Dual stream
●  H.239 (H.323) dual stream
●  Binary Floor Control Protocol (BFCP) (SIP) dual stream
●  Supports resolutions up to 3840 x 2160p5

Wireless sharing
●  Webex app appt (up to 3840 x 2160p5)
●  Cisco Intelligent Proximity client (up to 1920 x 1080p5)
●  Miracast (1080p30) – Not available on Non radio version

Multipoint support
●  4-way embedded SIP/H.323 conferencing capability with MultiSite option

MultiSite features (embedded multipoint) (optional upgrade)
●  Adaptive SIP/H.323 MultiSite:

◦      3-way resolution up to 1080p30 + content up to 4Kp5

◦      4-way resolution up to 720p30 + content up to 4Kp5

●  Full individual audio and video transcoding
●  H.323/SIP/VoIP in the same conference
●  Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5
●  Best Impression (automatic continuous presence layouts)
●  Encryption and dual stream from any site

Protocols
●  H.323
●  SIP
●  Cisco Webex

Embedded encryption
●  H.323 and SIP point-to-point
●  Standards-based: H.235 v3 and Advanced Encryption Standard (AES)
●  Automatic key generation and exchange

IP network features
●  DNS lookup for service configuration
●  Differentiated services (Quality of Service [QoS])
●  IP-adaptive bandwidth management (including flow control)
●  Automatic gatekeeper discovery
●  Dynamic playout and lip-sync buffering
●  H.245 Dual-Tone Multifrequency (DTMF) tones in H.323
●  RFC 4733 DTMF tones in SIP
●  Date and time support using Network Time Protocol (NTP)
●  Media adaptation and resilience
●  Uniform Resource Identifier (URI) dialing
●  Dynamic Host Configuration Protocol (DHCP)
●  802.1X network authentication
●  802.1Q Virtual LAN
●  802.1p (QoS and Class of Service [CoS])

Call Control
●  Cisco Unified Communications Manager (CUCM)

◦      Native registration with CUCM

◦      Requires CUCM Version 10.5.2 or later with device pack for Room Kit

●  Cisco Expressway

◦      Native registration with Expressway

●  Cisco Webex Service
●  Third-party H.323 Gatekeepers and standards-based SIP proxies

IPv6 network support
●  Single call stack support for both H.323 and SIP
●  Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
●  Support for both static and automatic IP configuration (stateless address auto configuration)

Security features
●  Management using HTTPS and SSH
●  IP administration password
●  Menu administration password
●  Disable IP services
●  Network settings protection

Certificate management
●  Certificate Authority Proxy Function (CAPF) support for additional security
●  Manufacturer-Installed Certificates (MIC)
●  Locally Significant Certificates (LSC)
●  X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported

Network interfaces
●  One Ethernet (RJ-45) 10/100/1000 for LAN
●  One Ethernet (RJ-45) for Webex Room Navigator touch panel direct pairing
●  Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz - not available in non-radio versions

Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz—5875 MHz. Using a Wifi connection is a flexible option, however an Ethernet connection is always preferred for high performance.

Other interfaces
●  USB 2.0 port, micro USB port, factory reset pinhole

Power
●  100 to 240 VAC, 50/60 Hz, 12V DC input
●  Average 20W, peak 70W

Operating temperature and humidity
●  0°C to 40°C (32°F to 104°F) ambient temperature
●  10% to 90% Relative Humidity (RH)

Storage and transport temperature
●  -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing)

Locking mechanism
●  Kensington security lock

Dimensions

Dimensions

●  Width: 27.5 in. (70.0 cm)
●  Height: 3.5 in. (10.6 cm)
●  Depth: 2.9 in. (8.8 cm)
●  Weight: 7 lb. (3.2 kg)

Camera Overview
●  5K UltraHD camera
●  Supports up to 60 fps (max 30 fps with speaker tracking and best overview enabled)
●  15.1 MP image sensor (5184 x 2916 pixels)
●  1/1.7 CMOS
●  3x zoom
●  f/2.0 aperture
●  83° horizontal field of view; 51.5° vertical field of view
●  Auto framing (audio + face detect)
●  Auto focus, brightness, and white balance
●  Focus distance 1 m to infinity
* The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Cisco Systems, Inc. is under license. Other trademarks and trade names are those of their respective owners.
