Overview

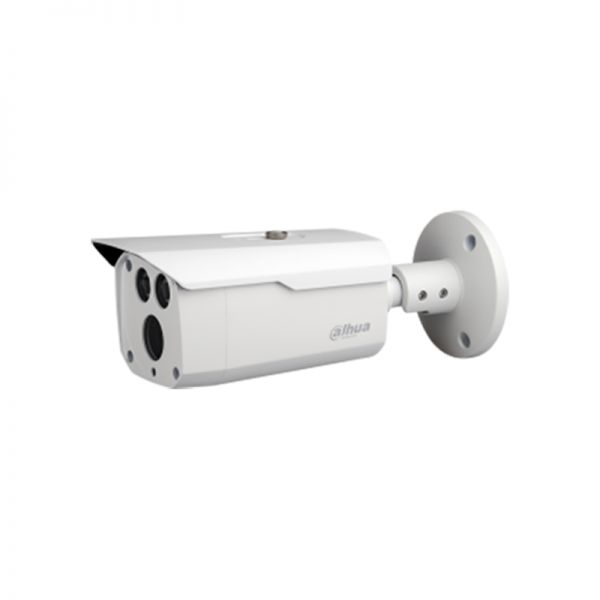

The Dahua HAC-HFW1200D-S4 is a high-performance 2MP Bullet Fix camera featuring an 80m IR range and IP67 weatherproof rating, available at ADI. Designed for both indoor and outdoor use, this camera offers superior video quality and durability, making it ideal for various surveillance applications. Whether you need reliable security monitoring for your home or business, the HAC-HFW1200D-S4 provides a versatile and cost-effective solution.

Quick Spec

Resolution 2MP
IR Distance 80m
Weatherproof Rating IP67
Lens Fixed Lens
Brand Dahua

Product Features

  • ● 2 Megapixel high-performance CMOS
  • ● Supports HDCVI/AHD/TVI/CVBS video outputs
  • ● 80m IR distance for enhanced night vision
  • ● IP67 rated for robust outdoor performance
  • ● Fixed lens for wide coverage area

Product Applications

  • ● Residential property security monitoring
  • ● Retail store surveillance
  • ● Parking lot and outdoor area monitoring

Supported Options

Sun Shield PFB204W
Junction Box PFA137
Mounting Bracket PFM321D

Compare to Similar Items

Model Differences
Dahua HAC-HFW1200R-S3 40m IR range, IP66 rating
Dahua HAC-HFW1400T-A 4MP resolution, built-in microphone
Dahua IPC-HFW2231T-ZS-S2 Zoom lens, H.265 compression support

Get more information

For further information about the Dahua HAC-HFW1200D-S4 and its pricing, contact us through Live Chat or email us at Contact@huatenmax.com. Check "Dahua HAC-HFW1200D-S4 price" and "HAC-HFW1200D-S4 datasheet", buy "Dahua HAC-HFW1200D-S4 series" with the best price and fast shipping. Free Live Chat support is available.

Specification

HAC-HFW1200D-S4 Specifications

Brand Dahua
Model HAC-HFW1200D-S4
Image Sensor 1/2.7" CMOS
Effective Pixels 1920(H) x 1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25s ~ 1/100,000s; NTSC: 1/30s ~ 1/100,000s
Minimum Illumination 0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 80m (262ft)
Lens Type Fixed lens, 3.6mm (2.8mm, 6mm optional)
Video Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output/ CVBS video output (switchable)
Max. IR LEDs Length 80m
Day/Night Auto(ICR) / Manual
OSD Menu Multi-language
Backlight Compensation BLC / HLC / DWDR
White Balance Auto / Manual
Gain Control Auto / Manual
No. of LEDs 2
Power Supply 12V DC ��25%
Power Consumption Max 5W
Working Environment -40��C ~ +60��C / Less than 95%RH (no condensation)
Ingress Protection IP67
