Position：Home / Products / Video Surveillance / Dahua Video Surveillance / Dahua CVI

  • A82AF5V
  • A82AF5V

A82AF5V

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com1

Live Chat
Overview

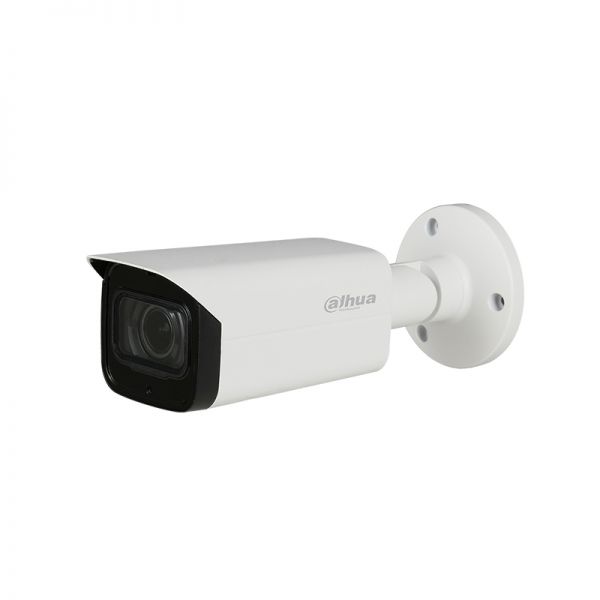

The Dahua A82AF5V is a high-performance 4K IR Vari-focal HDCVI Bullet camera designed for advanced surveillance needs. Featuring superior 4K resolution and IR capabilities, this robust camera ensures clear and precise monitoring in various light conditions, making it an ideal choice for security applications.

Quick Spec

Brand Dahua
Model A82AF5V
Resolution 4K
IR Distance Up to 50m
Lens Type Vari-focal

Product Features

  • ● 4K Ultra HD resolution for superior image clarity.
  • ● Intelligent IR technology for enhanced low-light performance.
  • ● Vari-focal lens for flexible viewing angles.
  • ● Weather-resistant housing for outdoor installations.
  • ● Advanced image processing algorithm for excellent detail.

Product Applications

  • ● Commercial properties requiring high-resolution surveillance.
  • ● Public areas needing reliable day-and-night monitoring.
  • ● Residential locations desiring advanced security solutions.

Supported Options

Wall Mount PFA152-E
Pole Mount PFA150
Junction Box PFA134

Compare to Similar Items

Model Differences
Dahua A82BS5V Fixed Lens, Lower IR Distance
Dahua A82CF5V Lower Resolution, Fixed IR
Dahua A82DF5V Motorized Zoom, Extended IR Range

Get more information

For further information about the Dahua A82AF5V, contact us via Live Chat or at Contact@huatenmax.com. Check "Dahua A82AF5V price" and "A82AF5V datasheet", buy "Dahua A82AF5V Camera" with the best price and fast shipping. Free Live Chat support is available.

Specification

A82AF5V Specifications

Brand Dahua
Model A82AF5V
Image Sensor 1/2.8?? 8MP CMOS
Resolution 4K (3840 x 2160)
Lens Type Vari-focal
Lens Size 2.7-12mm Motorized
IR Distance Up to 80 meters (262 feet)
IR LEDs 2 LEDs
Day/Night Mode Auto ICR
Minimum Illumination 0.005Lux/F1.6 (Color), 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output
Video Frame Rate 4K @15fps, 1080P @30fps
S/N Ratio More than 65dB
OSD Menu Multi-language
Operating Temperature -30??C to +60??C (-22??F to +140??F)
Ingress Protection IP67
Power Supply DC12V??30%
Power Consumption Max. 13.2W
Dimensions 273.2mm ?? 95.0mm ?? 95.0mm (10.8" ?? 3.7" ?? 3.7")
Lightning Protection TVS 6000V lightning protection
Audio Interface 1 channel
Certifications CE, FCC
