Overview

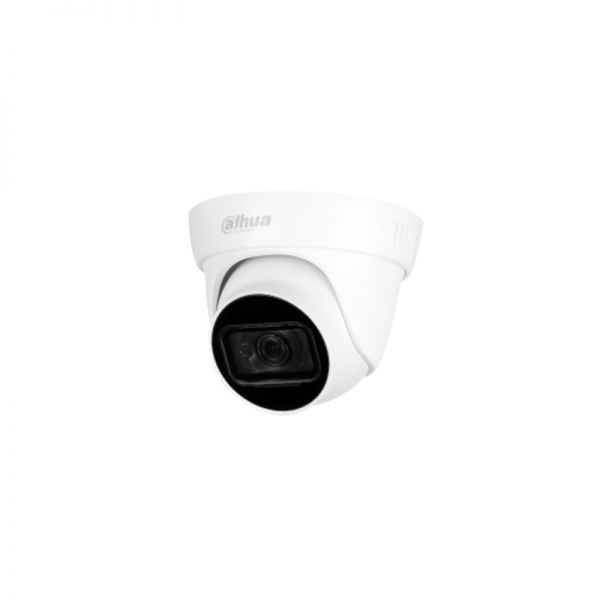

The Dahua HAC-HDW1230TL is a high-performance 2MP Starlight HDCVI IR Eyeball Camera designed to deliver superior image quality in low-light conditions. With its 3.6mm fixed lens (2.8mm optional), this camera is perfect for a range of surveillance applications, providing clear and detailed footage even in challenging environments. Its sleek and compact design makes installation effortless, ensuring reliable security monitoring at all times.

Quick Spec

Resolution 2 Megapixels
Lens 3.6mm fixed (2.8mm optional)
IR Range Up to 30 meters
Power Supply 12V DC
Weatherproof Rating IP67

Product Features

  • ● 2MP resolution offers clear and detailed images
  • ● Starlight technology for superior low-light performance
  • ● IR illumination up to 30 meters for night vision
  • ● Weatherproof design with IP67 rating
  • ● Compatible with both 3.6mm and 2.8mm lenses

Product Applications

  • ● Outdoor surveillance for residential properties
  • ● Commercial security monitoring for offices and retail outlets
  • ● Parking lots and public spaces requiring reliable surveillance

Supported Options

Power Adapter PA12V1A
Mount Bracket MB24G
Protective Housing PH265

Compare to Similar Items

Model Differences
Dahua HAC-HDW1200T No Starlight technology, up to 20 meters IR range
Dahua HAC-HDW1400TL 4MP resolution, slightly higher cost
Dahua HAC-HDW2231R-Z Motorized varifocal lens, 60 meters IR range

Get more information

Contact us through Live Chat or Contact@huatenmax.com for further information about the Dahua HAC-HDW1230TL and its price. Check Dahua HAC-HDW1230TL price and HAC-HDW1230TL datasheet, buy Dahua HAC-HDW1230TL Camera with the best price and fast shipping. Free Live Chat support is available.

Specification

HAC-HDW1230TL Specifications

Brand Dahua
Model HAC-HDW1230TL
Image Sensor 1/2.8" CMOS
Effective Pixels 1920(H) x 1080(V), 2MP
Resolution 1080p (1920��1080)
Video Frame Rate 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps
Min. Illumination 0.005Lux/F1.6, 30IRE, 0Lux IR on
Lens Type Fixed lens / Fixed iris
Lens Mount M12
Focal Length 3.6mm (2.8mm optional)
Horizontal FOV 87.5��(3.6mm), 107.8��(2.8mm)
IR Distance Up to 30m (98ft)
Day/Night Auto (ICR) / Color / B/W
OSD Menu Multi-language
Video Output 1-channel BNC HDCVI high definition video output / CVBS video output (Can switch)
Power Supply 12V DC ��30%
Power Consumption Max 3.6W (12V DC, IR on)
Operating Temperature -40��C to +60��C (-40��F to +140��F)
Ingress Protection IP67
Dimensions ��106mm��93.7mm (��4.17"��3.69")
Material Metal
