Overview

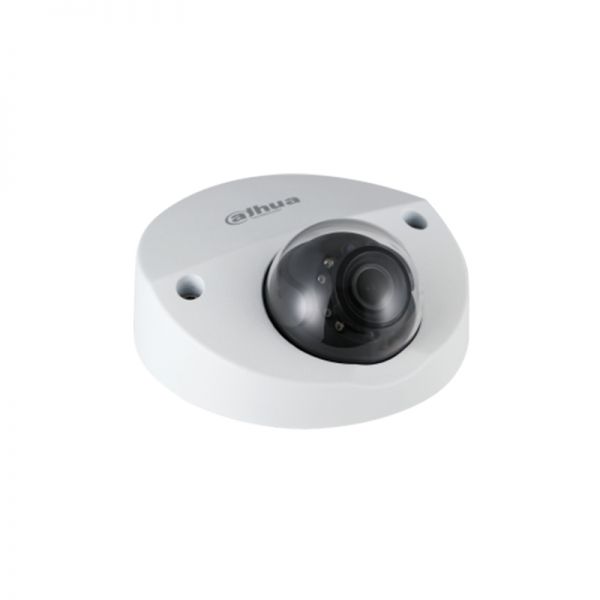

The Dahua HAC-HDBW2241F-M-A is a state-of-the-art 2MP Mobile HDCVI IR Dome Camera, specifically engineered for high-performance mobile surveillance. It offers unparalleled image clarity and robust durability in various applications, making it an outstanding choice for security setups requiring reliable video monitoring on the go.

Quick Spec

Image Sensor 1/2.9" 2 Megapixel CMOS
Resolution 1920 x 1080
IR Distance Up to 20 meters
Lens 3.6mm fixed lens
Ingress Protection IP67

Product Features

  • ● 2MP resolution for high-quality video capture.
  • ● Comprehensive 3.6mm fixed lens offers wide-angle monitoring.
  • ● Infrared capabilities provide clear imaging up to 20 meters in the dark.
  • ● Durable IP67-rated housing for comprehensive weather protection.
  • ● Supports multiple video formats including HDCVI, CVBS, AHD, and TVI.

Product Applications

  • ● Public transportation security, providing continuous monitoring on buses, trains, and taxis.
  • ● Shipping and logistic vehicle surveillance, ensuring goods are monitored throughout transit.
  • ● School buses, providing security for students by recording daily commutes.

Supported Options

Mount Bracket PFA136
Junction Box PFA139
Weather Shield PFA200

Compare to Similar Items

Model Difference
Dahua HAC-HDBW2231F-M-A 1MP resolution
Dahua HAC-HDBW2221F-M-A IR distance up to 50 meters
Dahua HAC-HDBW2241R-F No mobile functionality

Get more information

For additional information on the Dahua HAC-HDBW2241F-M-A, including pricing and the datasheet, please contact us through Live Chat or via email at Contact@huatenmax.com. Check Dahua HAC-HDBW2241F-M-A price and HAC-HDBW2241F-M-A datasheet, buy Dahua HAC-HDBW2241F-M-A with the best price and fast shipping. Free Live Chat is supported.

Specification

HAC-HDBW2241F-M-A Specifications

Brand Dahua
Product Name HAC-HDBW2241F-M-A
Camera Type Mobile HDCVI IR Dome Camera
Resolution 2MP
Image Sensor 1/2.8" CMOS Sensor
Effective Pixels 1920(H)��1080(V), 2MP
Night Vision IR LEDs, up to 20m
Lens Type Fixed lens
Lens Mount M12
Angle of View 104��
Video Frame Rate 1080p@25/30fps
Video Output 1-channel BNC HDCVI high definition video output / CVBS standard definition video output
Minimum Illumination 0.02Lux/F2.0, 30IRE, 0Lux IR on
Audio Interface Built-in mic
Input Voltage 12V DC ��30%
Power Consumption Max 3.2W
Operating Temperature -30��C to +60��C
Ingress Protection IP67
Dimensions ��108mm x 83.2mm
Material Metal
