IPC-D1B40

Overview

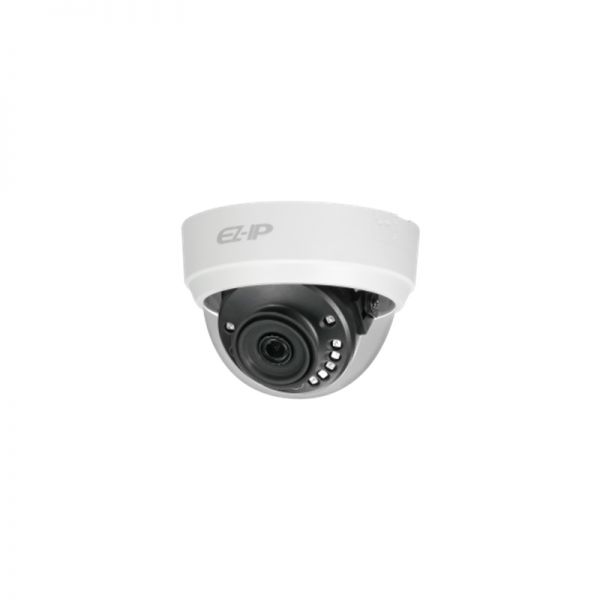

IPC-D1B40, Dahua 4MP IR Indoor Mini-Dome Network Camera, 1/3" 4Megapixel progressive CMOS; H.265+ & H.265 dual-stream encoding; 20fps@4M(2560x1440) &25/30fps@3M(2304x1296); DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

IPC-D1B40

Image Sensor

1/3" 4Megapixel progresive CMOS

Effective Pixels

2560(H)x1440(V)

RAM/ROM

256MB/16MB

Scanning System

Progressive

Minimum Illumination

0.09Lux/F2.0(Color,1/3s,30IRE)

0.5Lux/F2.0(Color,1/30s,30IRE)

0Lux/F2.0(IR on)

Focal Length

2.8 mm (3.6 mm optional)

Max. Aperture

F2.0/F2.0

Angle of View

H:101��/80��, V:54��/44��

Focus Control

Fixed

Casing

Metal+Plastic

Dimensions

��100mm x74.3mm (3.94" x 2.93")

Product Details

The IPC-D1B40provides these features:

* 1/3" 4Megapixel progressive CMOS

* H.265+ & H.265 dual-stream encoding

* 20fps@4M(2560x1440) &25/30fps@3M(2304x1296)

* DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC

* Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

* 2.8 mm fixed lens (3.6 mm optional)

* Max IR LEDs Length 20m

* PoE

Compare to Similar Items

Table 2 shows the comparison.

Product Code

IPC-D1B40

IPC-D2B20

IPC-D2B40

Image Sensor

1/3"4Megapixel progresive CMOS

1/2.7"2Megapixel progresive CMOS

1/3"4Megapixel progresive CMOS

Effective Pixels

2560(H)x1440(V)

1920(H)x1080(V)

2560(H)x1440(V)

RAM/ROM

256MB/16MB

64MB/16MB

256MB/16MB

S/N Ratio

More than 50dB

More than 50dB

More than 50dB

IR Distance

Distance up to 20m(65ft)

Distance up to 30m(98ft)

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

Auto/ Manual

Auto/ Manual

IR LEDs

12

1

1

Lens Type

Fixed

Fixed

Fixed

Mount Type

Board-in

Board-in

Board-in

Focal Length

2.8 mm (3.6 mm optional)

2.8 mm (3.6 mm optional)

2.8 mm (3.6 mm optional)

Max. Aperture

F2.0/F2.0

F2.0/F2.0

F2.0/F2.0

Angle of View

H:101��/80��, V:54��/44��

H:115��/87.5��, V:60��/47��

H:101��/80��, V:54��/44��

Focus Control

Fixed

Fixed

Fixed

Close Focus Distance

0.6m(2.63ft)

0.6m(1.97ft)

0.5m(1.64ft)

Power Supply

DC12V, PoE (802.3af)(Class 0)

DC12V, PoE (802.3af)(Class 0)

DC12V, PoE (802.3af)(Class 0)

Power Consumption

<4.2W

<5.1W

<4.4W

Casing

Metal+Plastic

Plastic

Plastic

Dimensions

��100mm x74.3mm (3.94"x 2.93")

��122mm x98.1mm (4.8"x3.86")

��122mm x98.1mm (4.8"x3.86")

Get More Information

Do you have any question about the IPC-D1B40

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

IPC-D1B40 Specification

Camera

Image Sensor

1/3" 4Megapixel progresive CMOS

Effective Pixels

2560(H)x1440(V)

RAM/ROM

256MB/16MB

Scanning System

Progressive

Minimum Illumination



0.09Lux/F2.0(Color,1/3s,30IRE)

0.5Lux/F2.0(Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 20m(65ft)

IR On/Off Control

Auto/ Manual

IR LEDs

12

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8 mm (3.6 mm optional)

Max. Aperture

F2.0/F2.0

Angle of View

H:101°/80°, V:54°/44°

Focus Control

Fixed

Close Focus Distance

0.6m(2.63ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

56m(184ft)

22.4m(73.5ft)

11.2m(36.7ft)

5.6m(18.4ft)

3.6 mm

80m(262.5ft)

32m(105ft)

16m(52.5ft)

8m(26.3ft)

PTZ

Pan/Tilt Range

Pan:0° ~355° ;Tilt:0° ~70° ;Rotation:0° ~355°

Intelligence

Event Trigger

Motion detection, Video tampering , Network disconnection, Scene change, IP address conflict, Illegal Access,Storageanomaly

Video

Compression

H.265/H.264/H.264B/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

4M(2560x1440)/3M(2304x1296)/1080P(1920x1080)/720P(1280x720)/VGA(640x480)/D1(704x576/704x480)/CIF(352x288/352x240)

Frame Rate



Main Stream: 4M(1 ~ 20fps)

Sub Stream: D1(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32K~6144K

H.265: 12K~ 6144K

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization

(EIS)

N/A

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS;SSH

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage



NAS(Network Attached Storage),

Local PC for instant recording

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS,DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: (EN 60950:2000)

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

<4.2W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

Φ100mm x 74.3mm (3.94" x 2.93")
