Position：Home / Products / Video Surveillance / Dahua Video Surveillance / Dahua Other Products

  • VTO2111D-WP-S1
  • VTO2111D-WP-S1

VTO2111D-WP-S1

Quote | Help
Overview

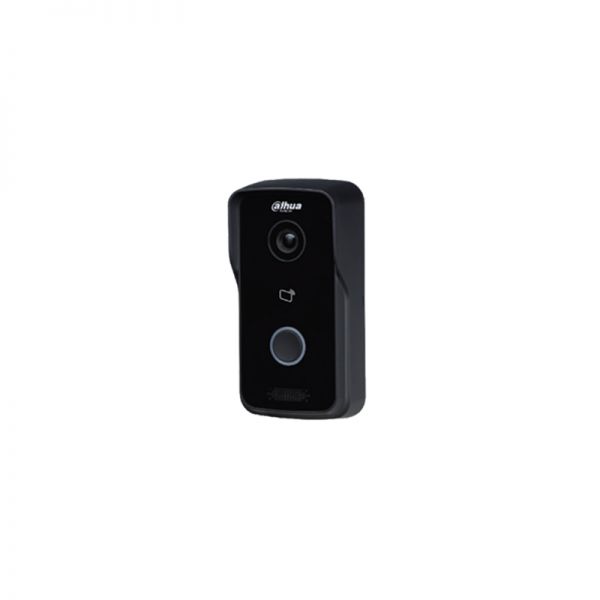

VTO2111D-WP-S1,Dahua 1MP Wi-Fi villa outdoor station, HD CMOS camera; large field of view angle; night vision; voice indication.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

VTO2111D-WP-S1

Main Processor

Micro Processor

Operation System

Embedded LINUX OS

Video Compression

H.264

Image Sensor

1/4"1MP CMOS

Lens

2.2mm

Angle of View

H:108��, V:81��, D:135��

Day/Night

ICR

Dimensions

135mmx70.4mmx34.4mm

Product Details

TheVTO2111D-WP-S1 provides these features:

* HD CMOS camera

* Large field of view angle

* Night vision

* Voice indication

* Remote intercom with mobile APP

* Airfly technology

* Surface mounted

* IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

GetMoreInformation

Do you have anyquestionabouttheVTO2111D-WP-S1

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

VTO2111D-WP-S1 Specification

System

Main Processor

Micro Processor

Operation System

Embedded LINUX OS

Video

Video Compression

H.264

Image Sensor

1/4" 1MP CMOS

Lens

2.2mm

Angle of View

H:108°, V:81°, D:135°

Day/Night

ICR

Audio

Audio Compression

G.711

Audio Input

Omnidirectional Mic

Audio Output

Audio Output

Bidirectional Talk

Support Dual-way Bidirectional talk

Operation Mode

Keypad Single

Mechanical Button

Reader

Mifare Card

Body Approaching

0.6m

Interface

Door Control

2(1 relay out for main lock, 1 extended by access control module)

Alarm In

2(1ch unlock button, 1ch feedback)

RS485

1

Network

Wi-Fi

IEEE802.11b/g/n

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP

General

Ingress Protection



IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Tamper Switch

1

Wireless Frequency

433MHz

Memory Slot

Micro SD, Max 32G

Installation

Surface

Material

Plastic

Power

DC 12V,PoE(802.3af)

Power Consumption

Work <7W

Working Environments

﹣30°C to +60°C

Relative Humidity

10%RH–90%RH

Dimensions

135mmx70.4mmx34.4mm
