HAP300

Quote | Help
Overview

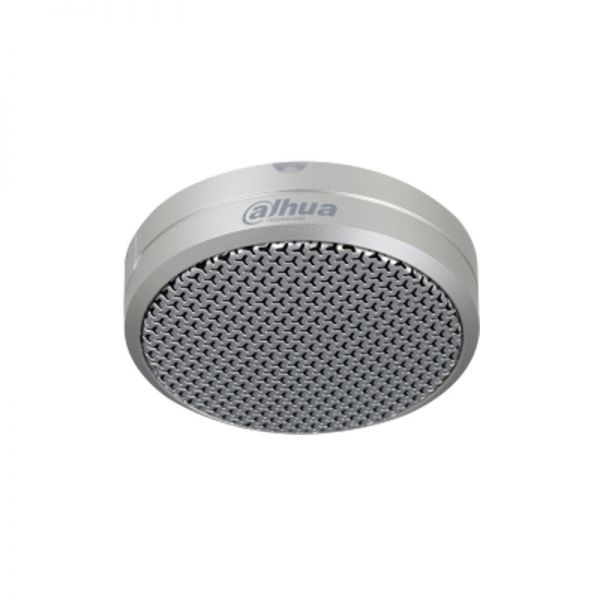

The Dahua HAP300 is a premium Hi-fidelity Pickup designed with advanced audio technology to capture clear and precise sound. Perfect for various surveillance and audio recording applications, the HAP300 is built to deliver high-quality audio performance in diverse environments, ensuring reliability and excellence.

Quick Spec

Brand Dahua
Model HAP300
Audio Input Unbalanced
Frequency Response 20Hz - 20kHz
Signal-to-Noise Ratio 70dB

Product Features

  • High-fidelity audio pickup with wide frequency response
  • Excellent signal-to-noise ratio of 70dB
  • Unbalanced audio input for easy integration
  • Durable and robust construction
  • Designed for optimal performance in various environments

Product Applications

  • Security surveillance systems for enhancing audio clarity
  • Professional audio recording setups requiring high fidelity
  • Public address systems for clear sound transmission

Supported Options

Accessory Model
Audio Cable DAC100
Microphone Stand DMS100
Power Supply DPS200

Compare to Similar Items

Model Difference
Dahua HAP200 Narrower frequency response
Dahua HAP400 Higher signal-to-noise ratio
Dahua HAP500 Balanced audio input

Get more information

Contact us through Live Chat or Contact@huatenmax.com for further information about the Dahua HAP300 and its price. Check 'Dahua HAP300' price and 'HAP300 datasheet', buy 'Dahua HAP300 Hi-fidelity Pickup' with best price and fast shipping. Free Live Chat is supported.

Specification

HAP300 Specification

Model
DH-HAP300
General
Scope
5~150 m2
Sensitivity
-30dB
Frequency response
20Hz～20kHz
Directional characteristic
Omni-directional
SNR
82dB(1m 40dB sound source SPL)
52dB(10m 45dB sound source SPL)
1kHz at 1Pa
Dynamic range
106dB(1KHz at Max dB SPL)
Max. sustainable sound pressure
120dB SPL(1KHz, THD 1%)
Output impedance
600?(non-equilibrium)
Output signal amplitude
2.5Vpp/-25dB
Microphone
Electret condenser microphone
Working voltage
DC 12V(9~18V)
Working current
50mA
Working temperature
-25?C~+70?C(-13℉~+158℉)
Material
Aluminum
Color
silver
Dimension
φ70mmx20.6mm (2.76”x3.13” x0.81”)
Weight
0.11kg(0.24lb)
Certification
CE/FCC
