Architecture |

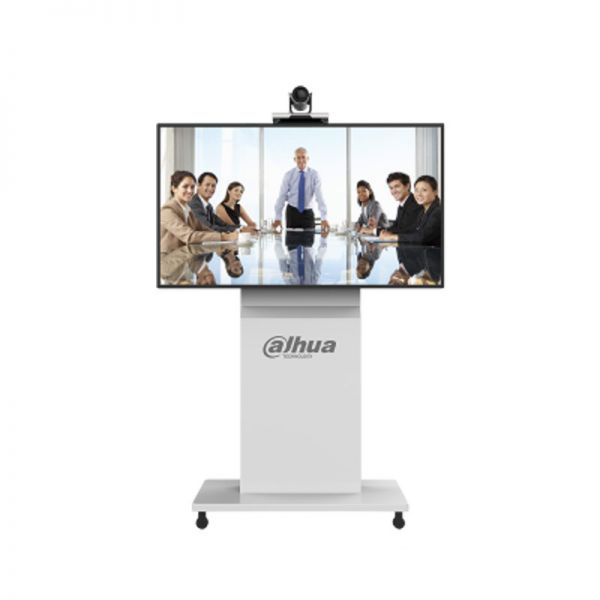

Architecture | Integrated design with 1080P full-HD camera, codec, MIC, 1 display screens, loudspeaker and a frame with wheels |
Display | 1 x 49”/55”/65” display |
Video Features |
Video Codec | H.265, H.264HP and H.264BP |
Video Resolution | Main stream: 1080P, 720P, D1 |
Demo stream: 1080P, 720P, D1 |
Frame Rate | 5~60fps |
Video Bitrate | 128kbit/s to 8Mbit/s |
Dual Stream | Dual 1080p |
Audio Features |
Audio Codec | OPUS, MP3, AAC-LC, G.719, G.711a and G.711u |
Audio Processing | AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control), ANS (Automatic Noise Suppression), Self-Adaptive Post-filtering, Audio Error Correction and Lip Sync |
Camera Features |
Image Sensor | 1/2.8” 2.1MP CMOS |
Lens | Horizontal Angle: 73° , Zoom: 12x Optical Zoom |
Frame Rate | 30/60fps @ 1080P, 30/60fps @ 720P |
Pan/Tilt | Pan: -120° ~ +120° Tilt: -30° ~ +30° |
Communicaton & Security |
Communicaton Protocols | ITU-T H.323, IETF SIP |
Transmission Protocols | IPv4, TCP/IP, RTP, SRTP, RTCP, HTTP, DNS, NTP and DHCP |
Other Protocols | H.225, H.235, H.245 and H.460 |
Network Features |
Network Packet Loss Tolerance | In the event of a 30% packet loss, the conference audio and video is unaffected |
Network Delay Tolerance | Normal conference processing for up to 800ms delay |
Interfaces |
Video Inputs | 1 x VGA, 1 x built-in camera input |
Video Outputs | 2x HDMI |
Audio Inputs | 2 x 3.5mm audio jack, 1 x USB |
Audio Outputs | 2 x HDMI, 1 x 3.5mm audio jack |
USB Interfaces | 2 x USB 2.0 host |
Network Interfaces | 1 x RJ45 10/100/1000M self-adaptive network port |
