  • TPC-ACSD8620-B
  • TPC-ACSD8620-B

TPC-ACSD8620-B

Quote | Help
Overview

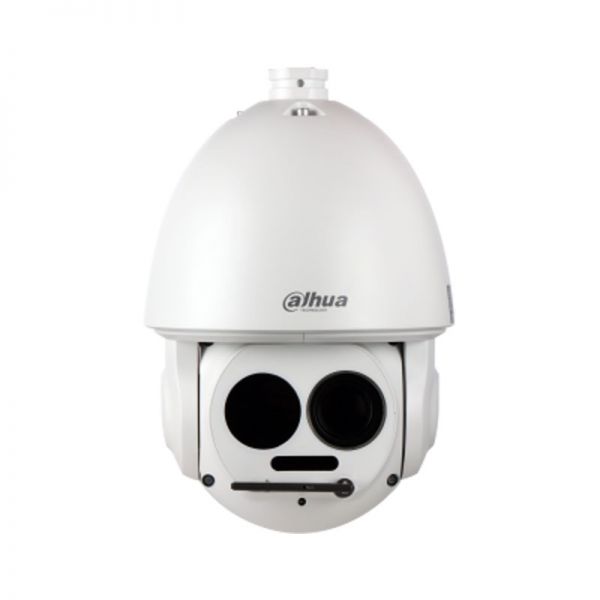

The Dahua TPC-ACSD8620-B is a state-of-the-art Thermal Network Anti-corrosion Hybrid Speed Dome Camera. It integrates thermal imaging with advanced anti-corrosion features, making it an ideal solution for challenging environments. The hybrid speed dome offers superior image quality and versatile application possibilities, ensuring reliable surveillance and security operations.

Quick Spec

Brand Dahua
Model TPC-ACSD8620-B
Image Sensor Thermal and Optical
Resolution 640x512 (thermal), 2MP (optical)
Anti-corrosion Standard ISO 12944-5 C5-M

Product Features

  • ● Dual Thermal and Optical Imaging
  • ● Advanced Anti-Corrosion Coating Compliant with ISO 12944-5 C5-M
  • ● Smart Tracking and Auto-Focus
  • ● Long Detection Range with 24/7 Operation
  • ● High-Speed Pan/Tilt for Wide Area Coverage

Product Applications

  • ● Maritime Surveillance: Ideal for monitoring vessel traffic and detecting intrusions in ports and harbors.
  • ● Industrial Plants: Suitable for monitoring critical areas in corrosive environments such as chemical processing and refineries.
  • ● Border Security: Perfect for long-range surveillance in national border areas, providing thermal and optical observations.

Supported Options

Accessory Model
Wall Mount PFB305W
Power Adapter AC24V/3A
Surge Protector PFA113

Compare to Similar Items

Related Model Key Differences
TPC-SD8420-B Only Optical Imaging, lower corrosion resistance
SD6AL245U-HNI High-speed PTZ but lacks thermal imaging
PTZ12230-IRB-N No anti-corrosion coating, shorter detection range

Get more information

For further information about the Dahua TPC-ACSD8620-B, its pricing, and availability, please contact us through Live Chat or email us at Contact@huatenmax.com. Check "Dahua TPC-ACSD8620-B price" and "TPC-ACSD8620-B datasheet", and buy "Dahua TPC-ACSD8620-B camera" with the best price and fast shipping. Free Live Chat support is available.

Specification

TPC-ACSD8620-B Specifications

Brand Dahua
Product Name Dahua Thermal Network Anti-corrosion Hybrid Speed Dome Camera
Model TPC-ACSD8620-B
Image Sensor Uncooled VOx Microbolometer
Resolution 640 x 512 Thermal; 1920 x 1080 Optical
Lens 35 mm Thermal; 20x Optical Zoom
Min. Illumination Color: 0.005 Lux; B/W: 0.0005 Lux (Optical)
Field of View Thermal: 17.7° x 14.2°; Optical: 62.8° ~ 2.2°
Detection Range Up to 3200 meters
Smart Detection IVS, Tripwire, Intrusion, Object Abandoned/Missing
Pan/Tilt Range Pan: 360° endless; Tilt: -90° to +90°
Pan/Tilt Speed Pan: 0.1° ~ 130°/s; Tilt: 0.1° ~ 60°/s
Ingress Protection IP67
Impact Protection IK10
Operating Temperature -40°C to +70°C (-40°F to +158°F)
Power Supply AC24V/3A (°25%)
Dimensions °248 mm ° 406 mm
Video Compression H.265, H.264, MJPEG
Network Protocols HTTP, HTTPS, FTP, TCP/IP, IPv4/IPv6, SNMP, SMTP, NTP, RTSP, RTP, UDP, DHCP, DNS, P2P
Audio Input/Output 1/1 Channel
Alarm Input/Output 7/2 Channel
