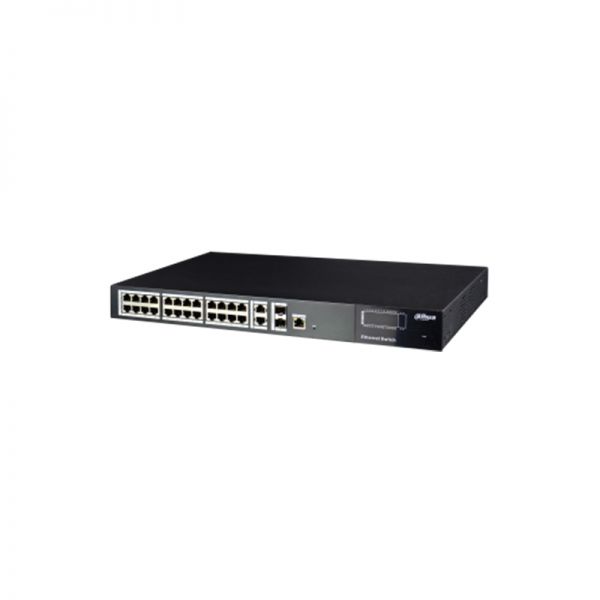

PFS4228-24T, Dahua 24-Port Ethernet Switch (Managed), 2-layer managed switch, provide web- based layer 2 network management by simple operation.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code
|
PFS4228-24T
|
|
Ethernet Ports
|
2*1000 Base-X (SFP)
2*10/100/1000 Base-T
24*10/100 Base-T
|
|
Switch Capacity
|
24.8G
|
|
Packet Forwarding Rate
|
9.52Gpps
|
|
Packet Buffer Memory
|
8Mb
|
|
MAC Table Size
|
16K
|
|
Exchange Mode
|
Store & forward
|
|
Power
|
AC 100-240V
|
|
Lightning Protection
|
Common Mode 2KV
Differential Mode 1KV
|
|
Dimension(Wx Dx H)
|
442mmx 263mmx 44.5mm
|
Product Details
ThePFS4228-24T provides these features:
* 2-layer managed switch
* Provide web- based layer 2 network management by simple operation
* Support high-speed data forwarding, perfectly designing for large flow of video data forwarding in security surveillance
* Support one-key recovery of IP address & user password
Compare to Similar Items
Table 2shows the comparison.
|
Product Code
|
PFS4226-24ET-360
|
PFS4228-24T
|
|
Ethernet Ports
|
Two (2) 10/100/1000 Base-T (Combo Port)
Two (2) 1000 Base-X (Combo Port)
24 x 10/100 Base-T Ports (PoE Power Supply)
|
2*1000 Base-X (SFP)
2*10/100/1000 Base-T
24*10/100 Base-T
|
|
Switching Capacity
|
8.8 Gbps
|
24.8G
|
|
Packet Forwarding Rate
|
6.55 Mpps
|
9.52Gpps
|
|
MAC Table Size
|
4K
|
16K
|
|
Port Aggregation
|
Static Link Aggregation, LACP Protocol
|
Link aggregation
|
|
Port Mirroring
|
Many-to-One Port Mirroring
|
Support many-to-one port mirroring
|
|
Network Management
|
Web (HTTP and HTTPS Protocols), SNMP V1/V2C/V3
|
WEB(http and https protocol)
|
|
Dimensions (W x D x H)
|
440.0 mm x 300.0 mm x 44.0 mm(17.32 in. x 11.81 in. x 1.73 in.)
|
442mmx 263mmx 44.5mm
|
