Overview

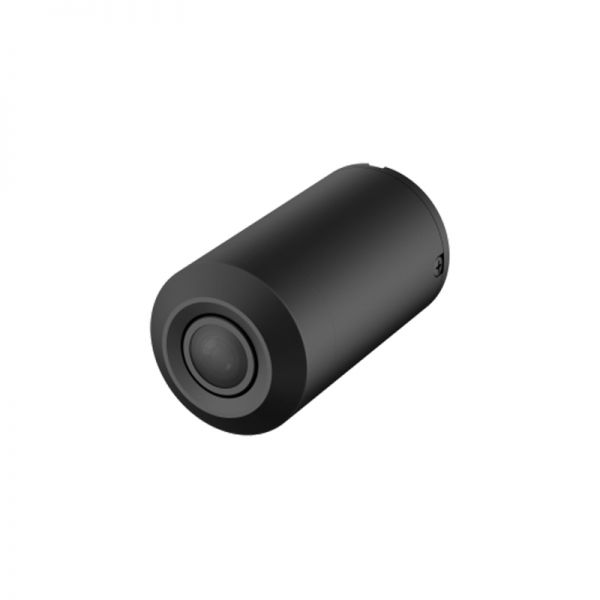

The Dahua IPC-HUM8231-L3 is a 2MP Covert Pinhole Network Camera-Lens Unit designed for discreet and covert surveillance. It offers impressive image quality and advanced features in a compact form, making it ideal for a variety of specialized surveillance needs. This high-performance camera ensures reliable security monitoring with its superior technology and design.

Quick Spec

Resolution 2 MP (1920 x 1080)
Lens Type Pinhole
Minimum Illumination 0.005 Lux @ F2.0
Video Compression H.265, H.264, MJPEG
Network Interface RJ-45 (10/100 Base-T)

Product Features

  • ● High-quality 2MP resolution for clear and detailed images.
  • ● Discreet pinhole lens design for unobtrusive monitoring.
  • ● Advanced video compression technology (H.265).
  • ● Low light performance with 0.005 Lux sensitivity.
  • ● Compact and lightweight design easy to install.

Product Applications

  • ● ATM machine surveillance to covertly monitor transactions and ensure security.
  • ● Retail store surveillance for discreet monitoring of customer activity and preventing theft.
  • ● Office security to unobtrusively monitor employees and protect sensitive areas.

Supported Options

Mounting Bracket MB10-DW
Power Adapter PA-1205-24
Network Cable NC-0150-JS

Compare to Similar Items

Dahua IPC-HUM8231-L3 Dahua IPC-EB5531 Dahua IPC-HF8242F
Resolution 2 MP (1920 x 1080) 5 MP (2048 x 1536) 2.1 MP (1920 x 1080)
Lens Type Pinhole Eyeball Box
Minimum Illumination 0.005 Lux 0.1 Lux 0.002 Lux
Video Compression H.265, H.264, MJPEG H.264, MJPEG H.265, H.264
Network Interface RJ-45 (10/100 Base-T) RJ-45 (10/100 Base-T) RJ-45 (10/100 Base-T)

Get more information

For further details about the Dahua IPC-HUM8231-L3 and its pricing, feel free to contact us via Live Chat or at Contact@huatenmax.com. Check 'Dahua IPC-HUM8231-L3' price and 'IPC-HUM8231-L3 datasheet', buy 'Dahua IPC-HUM8231-L3 Network Camera' with the best price and fast shipping. Free Live Chat support is available.

Specification

IPC-HUM8231-L3 Specifications

Brand Dahua
Model IPC-HUM8231-L3
Camera Type Covert Pinhole Network Camera
Resolution 2MP (1920 x 1080)
Lens Type Pinhole Lens
Lens Size 3.7mm
Image Sensor 1/2.8�� 2 Megapixel progressive CMOS
Minimum Illumination 0.01 Lux/F2.2 (Color)
Day/Night IR Cut Filter
Video Compression H.265, H.264, MJPEG
Frame Rate Main Stream: 1080p (1~25/30fps)
Network Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP
Ingress Protection IP67
Operating Temperature -30��C to +60��C (-22��F to +140��F)
Power Supply DC 12V, PoE (802.3af)
Power Consumption <4W
Storage Temperature -30��C to +60��C (-22��F to +140��F)
Humidity Less than 95% (non-condensing)
Dimensions 12mm x 12mm x 27.12mm (0.47" x 0.47" x 1.16")
Storage Options N/A
