Overview

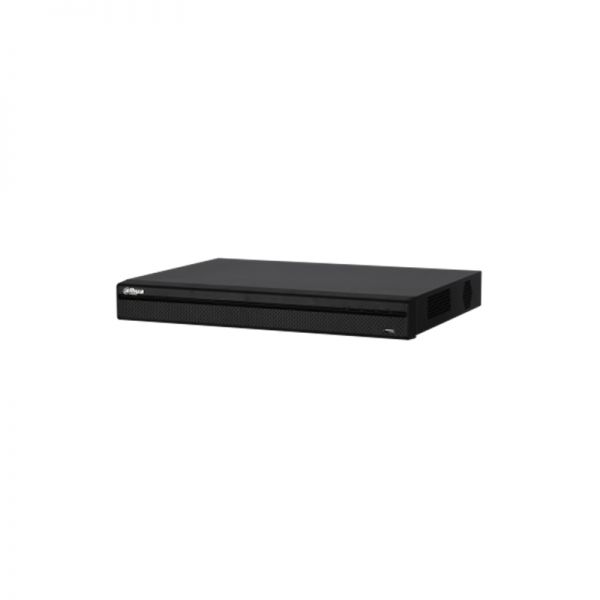

The Dahua XVR5216AN-4KL-X is a robust 16 Channel Penta-brid 4K 1U Digital Video Recorder. Tailored for high-resolution surveillance needs, this DVR supports five video formats, enabling seamless integration with various types of security cameras. With its advanced capabilities and user-friendly interface, it is an ideal choice for both small and large-scale security operations.

Quick Spec

Brand Dahua
Model XVR5216AN-4KL-X
Channels 16
Video Formats Supported Penta-brid (HDCVI/AHD/TVI/CVBS/IP)
Resolution Up to 4K (3840x2160)

Product Features

  • ● Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • ● 4K recording for ultra-clear video quality
  • ● Intelligent Video System (IVS) with advanced analytics
  • ● Smart search functionality for easy video retrieval
  • ● HDMI and VGA simultaneous video output

Product Applications

  • ● Commercial Facilities: Safeguard your business premises with high-definition surveillance in offices, warehouses, and retail stores.
  • ● Residential Security: Enhance home security with 24/7 video recording and remote monitoring capabilities.
  • ● Public Institutions: Monitor schools, hospitals, and government buildings with higher accuracy and detail.

Supported Options

Accessory Model
Hard Drive Dahua HDD-2TB
Power Adapter Dahua PWR-12V
Camera Dahua HDCVI-1210MP

Compare to Similar Items

Model Difference
XVR5116HS-X Supports up to 1080P resolution, lacks 4K support
XVR5216AN-X Same channels but no 4K recording capability
NVR5216-16P-I IP video only, does not support analog formats

Get more information

For further information about the Dahua XVR5216AN-4KL-X and its pricing, please contact us through Live Chat or email at Contact@huatenmax.com. Check Dahua XVR5216AN-4KL-X price and XVR5216AN-4KL-X datasheet. Buy Dahua XVR5216AN-4KL-X Digital Video Recorder with the best price and fast shipping. Free Live Chat support is available.

Specification

XVR5216AN-4KL-X Specifications

Brand Dahua
Model XVR5216AN-4KL-X
Channel Quantity 16 Channels
Video Compression H.264+/H.264
Video Input 16 Channels BNC
Audio Input 4 Channels, RCA
Audio Output 1 Channel, RCA
Recording Resolution 4K, 1080P, 720P
Display Resolution 4K (3840x2160)
Playback Resolution 4K, 1080P, 720P
Stream Type Video, Video & Audio
Ethernet 1 RJ-45 Port (10/100/1000Mbps)
Hard Drive Bays 2 SATA III Ports, up to 10TB each
USB Ports 2 USB 2.0 Ports
RS232 1 Port
RS485 1 Port, for PTZ Control
Power Supply DC 12V/2A
Power Consumption < 15W (Without HDD)
Operating Temperature -10��C ~ +55��C
Dimensions (W x H x D) 375mm x 287mm x 53mm
Net Weight 1.6kg (Without HDD)
