Overview

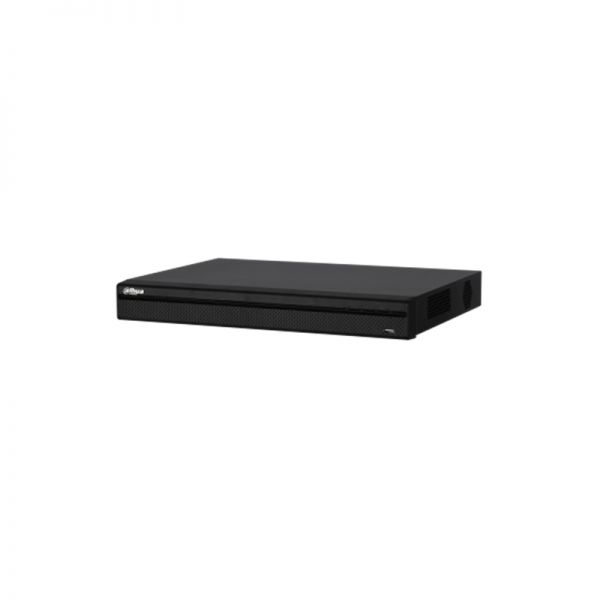

The Dahua XVR7108HE-4K-X is an advanced 8 Channel Penta-brid 4K Mini 1U Digital Video Recorder designed for high-quality surveillance solutions. This reliable and versatile recorder supports a range of camera inputs, ensuring flexibility and comprehensive coverage for various security needs. Ideal for both residential and commercial applications, the Dahua XVR7108HE-4K-X guarantees a seamless surveillance experience with the highest level of detail and clarity.

Quick Spec

Channels 8
Resolution 4K
Video Compression H.265+
Storage Up to 10TB
Remote Access Yes

Product Features

  • ● Penta-brid compatibility: supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • ● Smart H.265+ video compression technology
  • ● Compatible with 4K resolution cameras for ultra-clear video quality
  • ● Remote access and monitoring via mobile app
  • ● Advanced motion detection and alert system

Product Applications

  • ● Home Security: Ideal for keeping an eye on residential properties
  • ● Retail Stores: Perfect for monitoring shop floors and preventing theft
  • ● Office Premises: Ensures safety and surveillance in office environments

Supported Options

Accessory Model
External Hard Disk Dahua HDD1T
Camera Dahua HDW1200M
Power Supply Dahua PFM321D-EN

Compare to Similar Items

Model Differences
Hikvision DS-7108HGHI-F1 Supports 1080p resolution, less storage capacity
AVTech AVC791 Lower resolution, fewer channels
Samsung SDR-85305 No Penta-brid compatibility, lower compression

Get more information

For further information about the Dahua XVR7108HE-4K-X, you can contact us through Live Chat or email us at Contact@huatenmax.com. Check Dahua XVR7108HE-4K-X price and XVR7108HE-4K-X datasheet, buy Dahua XVR7108HE-4K-X with the best price and fast shipping. Free Live Chat is supported.

Specification

XVR7108HE-4K-X Specifications

Brand Dahua
Model XVR7108HE-4K-X
Channels 8 Channel
Compatibility Penta-brid (CVI, TVI, AHD, CVBS, IP)
Resolution Up to 4K
Video Compression H.265+/H.265
Display Split 1/4/8/9
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Playback Multiple functions, including Play, Pause, Stop, Rewind, Fast play, Slow play, and Digital zoom.
Network Interface 1 RJ-45 port (100M)
USB Interface 2 USB 2.0 ports
Audio Input 1 channel, RCA
Audio Output 1 channel, RCA
Internal HDD 1 SATA port, up to 10TB
Power Supply DC12V/2A
Power Consumption ??10W (without HDD)
Operating Conditions -10??C to +55??C (+14??F to +131??F), 10?C90% RH
Dimensions (W??D??H) 260mm ?? 236mm ?? 48mm (10.2" ?? 9.3" ?? 1.9")
Net Weight (without HDD) 1.3kg (2.87lb)
Certifications CE, FCC
Alarm Input 8 channels
Alarm Output 3 channels
