Position：Home / Products / Video Surveillance / Dahua Video Surveillance / Dahua XVR

  • XVR7108E-4KL-B-X
  • XVR7108E-4KL-B-X

XVR7108E-4KL-B-X

Quote | Help
Overview

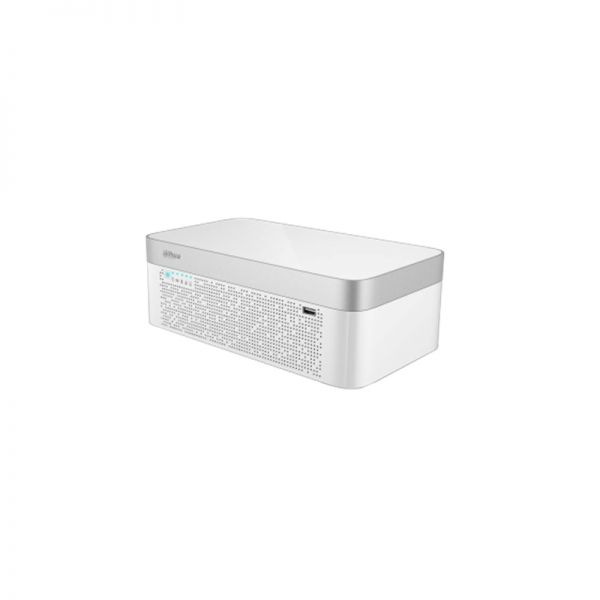

The Dahua XVR7108E-4KL-B-X is an 8 Channel Penta-brid 4K Elegant 1U Digital Video Recorder designed to meet the needs of modern security and surveillance systems. With its sophisticated design and robust capabilities, it caters to a wide range of recording requirements, ensuring high-quality video capture and storage for various environments.

Quick Spec

Brand Dahua
Model XVR7108E-4KL-B-X
Channels 8
Video Compression H.265+/H.265/H.264+/H.264
Resolution 4K

Product Features

  • ● Supports 5 types of signals: HDCVI, AHD, TVI, CVBS, and IP
  • ● Real-time 4K display with HDMI output
  • ● Smart H.265+ codec to reduce bandwidth and storage requirements
  • ● Intelligent Video System (IVS) with perimeter protection and smart search
  • ● Elegant 1U design perfect for rack-mounted installations

Product Applications

  • ● Commercial establishments needing high-definition security monitoring
  • ● Residential surveillance systems for comprehensive home security
  • ● Institutional facilities like schools or hospitals requiring robust video surveillance

Supported Options

Accessory Model
PoE Switch PFS4218-16ET-240
Network Keyboard NKB1000
Surveillance Hard Drive HDD-ST6000VX

Compare to Similar Items

Model Difference
XVR5108HS-4KL-X Lower frame rate and fewer IVS features
XVR7104E-4KL-B-X Supports only 4 channels
XVR7208A-4K-X No intelligent video system (IVS) features

Get more information

For further details about the Dahua XVR7108E-4KL-B-X, feel free to contact us via Live Chat or email at Contact@huatenmax.com. Check Dahua XVR7108E-4KL-B-X price and XVR7108E-4KL-B-X datasheet, buy Dahua XVR7108E-4KL-B-X with the best price and fast shipping. Free Live Chat support is available.

Specification

XVR7108E-4KL-B-X Specifications
Brand Dahua
Model XVR7108E-4KL-B-X
Channels 8
Video Compression H.265+/H.265/H.264+/H.264
Recording Resolution 4K
Audio In/Out 1/1
HDMI Output 4K (3840 x 2160)
VGA Output 1080p
Network Interface 1 RJ-45 Port (1000M)
USB Ports 2 (1 USB 3.0, 1 USB 2.0)
SATA HDDs 1 (Up to 10TB)
Backup Mode USB Device/Network
Power Supply 12V DC/2A
Power Consumption <7W (without HDD)
Operating Temperature -10??C to +55??C
Dimensions (WxDxH) 325mm x 255mm x 55mm
Net Weight 1.6kg (without HDD)
Video Input 8 channels
Video Output 1 HDMI, 1 VGA
Interface Ports 2 USB, 1 RS485
Protocol ONVIF
