Position：Home / Products / Video Surveillance / Dahua Video Surveillance / Dahua XVR

  • XVR5108H-4KL-X-8P
  • XVR5108H-4KL-X-8P

XVR5108H-4KL-X-8P

Quote | Help
Overview

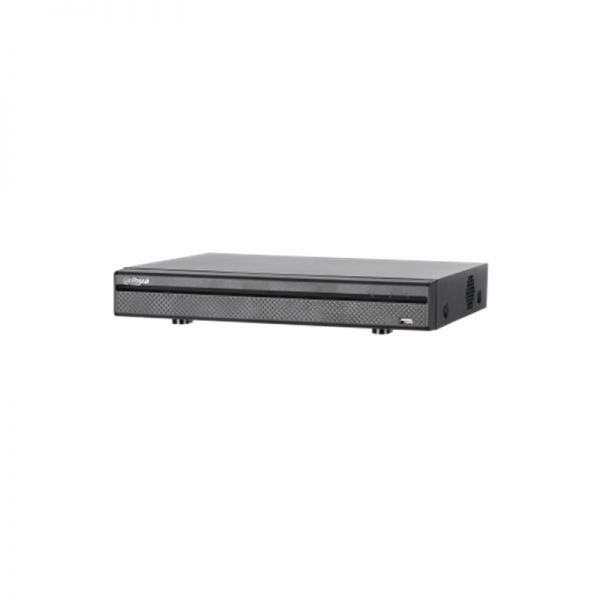

The Dahua XVR5108H-4KL-X-8P is an 8 Channel Penta-brid 4K Mini 1U Digital Video Recorder designed to deliver superior video surveillance performance. Equipped with advanced technologies and versatile compatibility, this DVR ensures optimal security monitoring and extensive storage options, making it highly suitable for various small to medium-scale security systems.

Quick Spec

Channels 8
Resolution 4K
Form Factor Mini 1U
Compression H.265
Storage Interface SATA

Product Features

  • ● Supports 8 channels of analog and IP camera inputs
  • ● 4K resolution for crystal-clear video playback
  • ● Advanced H.265 video compression for higher storage efficiency
  • ● Intelligent Video System (IVS) for improved security
  • ● Support for up to 10TB HDD storage capacity

Product Applications

  • ● Retail stores for comprehensive surveillance
  • ● Residential properties for enhanced home security
  • ● Small offices to monitor employee and visitor activities

Supported Options

HDD Dahua HDD500GB
Camera Dahua IPC-HFW1230S
Power Supply Dahua PFM321D

Compare to Similar Items

Model Difference
Dahua XVR5104C-4KL-X 4 Channels, lower storage capacity
Dahua XVR5116H-4KL-X 16 Channels, larger storage capacity
Dahua XVR5208A-4KL-X Enhanced AI functions, 8 Channels

Get more information

For further information on Dahua XVR5108H-4KL-X-8P, please contact us through Live Chat or Contact@huatenmax.com. Check 'Dahua XVR5108H-4KL-X-8P' price and 'XVR5108H-4KL-X-8P datasheet, buy 'Dahua XVR5108H-4KL-X' with the best price and fast shipping. Free Live Chat is supported.

Specification

XVR5108H-4KL-X-8P Specifications

Brand Dahua
Model XVR5108H-4KL-X-8P
Video Input Channels 8
Supported Video Formats Penta-brid (HDCVI, AHD, TVI, CVBS, IP)
Audio Input 1 Channel, RCA
Audio Output 1 Channel, RCA
Video Output HDMI/VGA
Max Recording Resolution 4K
Compression H.265+/H.265/H.264+/H.264
Network Ports 1 RJ-45 port (10/100 Mbps)
USB Ports 2 USB 2.0
Internal HDD 1 SATA port, up to 10TB capacity
Backup Modes USB Device/Network
Mobile App iDMSS/gDMSS
Power Supply DC12V/2A
Operating Conditions -10??C ~ +55??C
Dimensions 260mm x 224.9mm x 47.6mm
Operating System Embedded LINUX
Case Mini 1U
Protocol Support HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, NTP, DNS, P2P, etc.
Multi-screen Display 1/4/8/9
