Position：Home / Products / Video Surveillance / Dahua Video Surveillance / Dahua XVR

  • XVR5104HE-X1
  • XVR5104HE-X1

XVR5104HE-X1

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

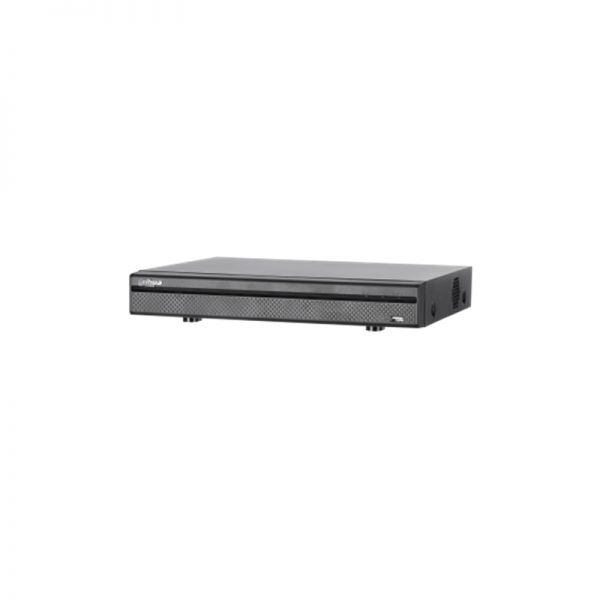

The Dahua XVR5104HE-X1 is a versatile 4 Channel Penta-brid 1080P Mini 1U Digital Video Recorder designed for comprehensive video surveillance. This recorder supports various video formats and offers reliable performance in a compact 1U form factor, making it an ideal solution for small to medium-sized security applications.

Quick Spec

Brand Dahua
Model XVR5104HE-X1
Video Input 4 Channels
Resolution 1080P
Form Factor Mini 1U

Product Features

  • ● Supports 5 signal types: HDCVI, AHD, TVI, CVBS and IP
  • ● Sophisticated motion detection features
  • ● Long transmission distance
  • ● Real-time monitoring with excellent video quality
  • ● Smart H.264+ technology for efficient bandwidth and storage use

Product Applications

  • ● Small retail businesses looking for cost-effective surveillance solutions
  • ● Residential properties requiring comprehensive security coverage
  • ● Warehouses and storage facilities needing long-distance monitoring

Supported Options

Accessory Model
External Hard Drive Dahua HDD-1TB
Camera Dahua HAC-HDW1200EM-A
Power Adapter Dahua PFM900-E

Compare to Similar Items

Model Differences
XVR5104C-X Supports only 4 video formats, lacks smart H.264+ technology
XVR5108H-X 8 Channels, larger form factor
XVR4104HS-X1 Lower resolution at 720P, fewer advanced features

Get more information

For further details about the Dahua XVR5104HE-X1, including pricing and datasheet information, please contact us through Live Chat or email at Contact@huatenmax.com. Check Dahua XVR5104HE-X1 price and XVR5104HE-X1 datasheet; buy Dahua XVR5104HE-X1 with the best price and fast shipping. Free Live Chat support is available.

Specification

XVR5104HE-X1 Specifications

Brand Dahua
Model XVR5104HE-X1
Channels 4
Video Compression H.264, H.264H, H.264B, MJPEG
Max Recording Resolution 1080P
Video Input 4 BNC ports
Video Output 1 HDMI, 1 VGA
Playback 4 channels
Audio Inputs 4 RCA ports
Audio Outputs 1 RCA port
Audio Compression PCM, G.711A, G.711U
Network Interface 1 RJ-45 port (10/100M)
USB Interface 2 USB 2.0 ports
Storage 1 SATA port (up to 6TB)
Power Supply DC 12V/2A
Power Consumption 10W (without HDD)
Operating Temperature -10��C to 55��C (14��F to 131��F)
Dimensions 204.6mm x 204.6mm x 45.6mm (8" x 8" x 1.8")
Gross Weight 1.5kg (3.3lb)
Remote Control IR remote included
Alarm I/O None
