  • Dell 2U R540 4214/8G*1/600G SAS 10K*1/H330/No DVD/750W*1/3.5-12
  • Dell 2U R540 4214/8G*1/600G SAS 10K*1/H330/No DVD/750W*1/3.5-12

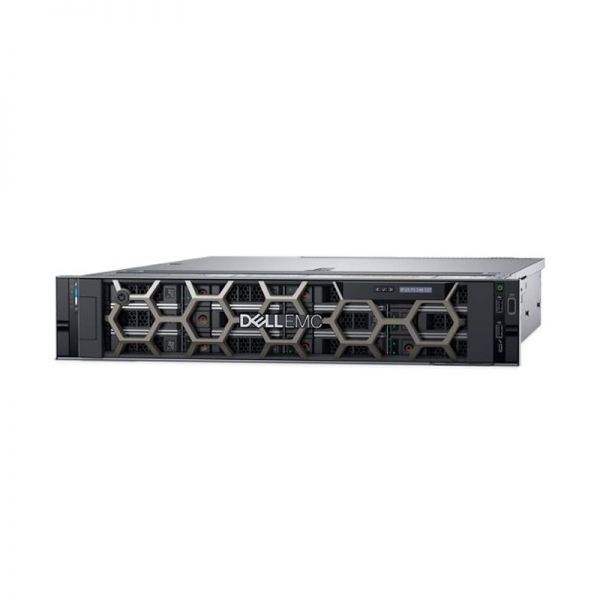

Dell 2U R540 4214/8G*1/600G SAS 10K*1/H330/No DVD/750W*1/3.5-12

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview
The Dell 2U R540 4214 Server is a reliable 2U server designed for small to medium-sized businesses. With a 12 core processor and 24 threads, this server can handle most business applications with ease.

Quick Spec

Table 1 shows the quick spec of Dell 2U R540 4214 Server.

Parameter Value
Processor Intel Xeon Silver 4214 (12 core, 24 thread, 2.20 GHz, 16.5 MB)
Memory 8GB DDR4
Storage 600GB SAS 10K
RAID Controller H330
Power Supply 750W

Product Features

  • 12 core processor for reliable performance
  • 24 threads for efficient multitasking
  • Large memory capacity for running multiple applications simultaneously
  • Fast SAS storage for quick data access
  • Reliable H330 RAID controller for data protection

Product Applications

  • Email and messaging
  • File and print sharing
  • Web serving
  • Database management
  • Virtualization

Supported Options

Table 2 shows the supported options of Dell 2U R540 4214 Server.

Accessory Model
Memory 16GB DDR4
Storage 1TB SAS 10K
Network Adapter Intel X550-T2 Dual Port 10GbE

Compare to Similar Items

Table 3 shows the comparison to similar items of Dell 2U R540 4214 Server.

Model Processor Memory Storage
Dell 2U R540 4216 Server Intel Xeon Silver 4216 (16 core, 32 thread, 2.10 GHz, 22 MB) 8GB DDR4 600GB SAS 10K
Dell 2U R540 4214 Server Intel Xeon Silver 4214 (12 core, 24 thread, 2.20 GHz, 16.5 MB) 8GB DDR4 600GB SAS 10K

Get more information

Do you have any question about the Dell 2U R540 4214 Server?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

DELLR540-22 Specifications
Model DELLR540-22
CPU Dell 2U R540 4214 (12 core, 24 thread, 2.20 GHz, 16.5 MB)
RAM 8G*1 Memory
Hard Drive 600G SAS 10K*1
RAID H330
Optical Drive No DVD
Network Interface Card 4*1GE
Power Supply 750W*1
Form Factor 3.5inch Hard Drive-12
USB Ports Multiple USB 3.0 and 2.0 ports
Expansion Slots Up to 7 PCIe 3.0
Max Memory 3 TB
Max Storage Up to 120TB
RAID Levels 0, 1, 5, 6, 10, 50, 60
Hot Swap Bays 12x 3.5" hot-swap bays
Remote Management iDRAC9 with Lifecycle Controller
Dimensions (H x W x D) 8.73 x 48.23 x 75.37 cm
