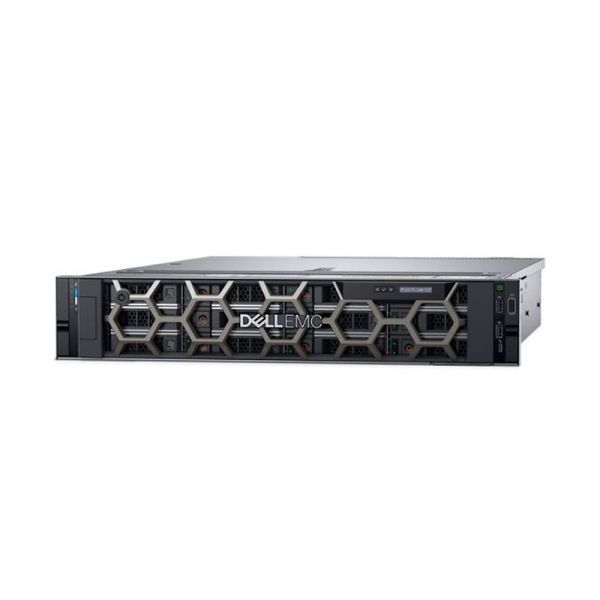

Dell 2U R540 4214/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview
The Dell 2U R540 4214 Server is a versatile 2U server designed for medium to large businesses. With a 12 core processor and 24 threads, this server is ideal for running multiple applications and workloads simultaneously.

Quick Spec

Table 1 shows the quick spec of Dell 2U R540 4214 Server.

Parameter Value
Processor Intel Xeon Silver 4214 (12 core, 24 thread, 2.20 GHz, 16.5 MB)
RAID Controller H330
Optical Drive DVD
Power Supply 750W

Product Features

  • 12 core processor for medium to large business needs
  • 24 threads for multitasking
  • Reliable H330 RAID controller for data protection
  • DVD drive for software installation
  • Fast SAS storage for quick data access

Product Applications

  • Email and messaging
  • Database management
  • Web serving

Supported Options

Table 2 shows the supported options of Dell 2U R540 4214 Server.

Accessory Model
Memory 32GB DDR4
Storage 1TB SAS 10K
Network Adapter Intel X710-T4L Quad Port 10GbE

Compare to Similar Items

Table 3 shows the comparison to similar items of Dell 2U R540 4214 Server.

Model Processor Memory Storage
Dell 2U R540 4216 Server Intel Xeon Silver 4216 (16 core, 32 thread, 2.10 GHz, 22 MB) 8GB DDR4 600GB SAS 10K
Dell 2U R540 4214 Server Intel Xeon Silver 4214 (12 core, 24 thread, 2.20 GHz, 16.5 MB) 8GB DDR4 600GB SAS 10K

Get more information

Do you have any question about the Dell 2U R540 4214 Server?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

DELLR540-16 Specifications
Product Model DELLR540-16
Processor 4214 (12 core, 24 thread, 2.20 GHz, 16.5 MB)
Memory 8G*1
Hard Drive 600G SAS 10K*1
RAID Controller H330
Optical Drive DVD
Power Supply 750W*1
Form Factor 3.5-8
Cache Memory 16.5 MB
Maximum Supported RAM 1.5 TB
Maximum Memory Speed 2933 MHz
Network Interface 4x 1GbE
Expansion Bays 8 x 3.5" SAS/SATA
Expansion Slots 1 x PCIe Gen3 x16, 2 x PCIe Gen3 x8, 1 x PCIe Gen3 x8 (For Storage)
Management iDRAC9 Basic
Operating System Not Included
Dimensions 86.8 x 482.4 x 750.4 mm
Power Consumption 750W
