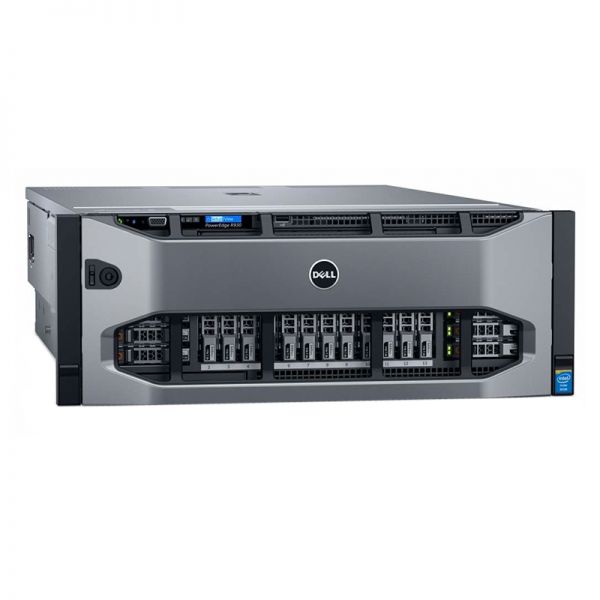

Dell PowerEdge R930 Dual Xeon E7-4830 v4*2/ 128GB (8*16G) 1.2TB SAS H730P Rack Server Specification
|
|
Product Series
|
Dell PowerEdge R930 Server
|
|
Model
|
Dell PowerEdge R930 Dual Xeon E7-4830 v4*2/ 128GB (8*16G) 1.2TB SAS H730P Rack Server
|
|
Customizable
|
Dual Intel® Xeon® E7-4830 v4, Optional Operating System, 128GB Memory, 1.2TB SAS H730P Hard Drive and a 3 year ProSupport Warranty
|
|
Base
|
PE R930 Server MLK, No TPM
|
|
Processor
|
2x Intel Xeon E7-4830 v4 2.0GHz,35M Cache,8.0GT/s QPI 14C/28T,HT,Turbo (115W) DDR4 1:1 MaxMem 1866Hz
|
|
Operating System
|
No Operating System
|
|
Memory
|
128GB
|
|
Hard Drive
|
1.2TB Hard Drive
|
|
Warranty
|
3 Year ProSupport and NBD On-Site Service
|
|
Chipset
|
Intel® C602J
|
|
Storage
|
2.5” SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)
2.5” Dell PowerEdge NVMe Express Flash PCIe SSD
|
|
Drive Bays
|
Up to 24 x 2.5” hot-plug 12Gb/6Gb SAS HDD or SAS/SATA SSD
Up to 8 front-accessible Express Flash NVMe PCIe SSD (PCIe 3.0)
|
|
Slots
|
Up to 10 PCIe 3.0 slots
1 RAID slot
1 NDC slot
|
|
RAID Controllers
|
Internal controllers: PERC H330, PERC H730P
External HBAs (RAID): PERC H830
External HBAs (non-RAID): 12Gbps SAS HBA
|
|
Communications
|
Embedded NICs:
Broadcom® 5720 quad-port 1Gb NDC
Broadcom® 57800 2x10Gb DA/SFP+ + 2x1Gb BT NDC
Broadcom® 57800 2x10Gb BT + 2x1Gb BT NDC
Broadcom® 57840S quad-port 10Gb SFP+ Direct Attach Rack NDC
Intel® I350 quad-port 1GbE NDC
Intel® X520 dual-port 10Gb DA/SFP+, + I350 DP 1GbE, NDC
Intel® X540 10GbE BT dual-port + I350 1Gb BT DP NDC
|
|
Power
|
Hot-plug redundant PSUs: 750W AC, 1100W AC
|
|
Availability
|
Hot-plug hard drives, hot-plug redundant power, hot-plug redundant fans, ECC memory, internal dual SD module
|
|
Graphics Card
|
Matrox® G200 with 8MB memory
|
|
Chassis
|
4U
|
|
Management
|
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade option)
8GB or 16GB vFlash media (upgrade options)
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware® vCenter
Dell OpenManage Connections:
HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
Dell OpenManage Plug-in for Oracle Database Manager
|
|
Rack Support
|
ReadyRails® II, the sliding rail system for the R930, provides tool-less support for 4-post racks with square or unthreaded round mounting holes, including all generations of Dell racks. The sliding rail system also supports tooled mounting in 4-post threaded racks
|
|
Dimensions
|
H: 6.8” (172.6mm)
W: 18.99” (482.4mm)
D: 31.59” (802.3mm) with PSU and bezel
D: 31.01” (787.7mm) with PSU and without bezel
|
