The FortiGate/FortiWiFi 90D Series are compact all-in-one security appliances that deliver Fortinet's Connected UTM. Ideal for remote customer premise equipment (CPE) and retail networks these appliances offer the network security connectivity and performance you need.
Quick Specs

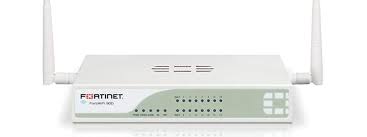

Figure 1 shows the appearance of FWF-90D.
Table 1 shows the Quick Specs.
|
Product Code
|
FWF-90D
|
|
Power Required
|
100–240V AC, 50–60 Hz
|
|
Maximum Current
|
110 V / 1.5 A, 220 V / 0.75 A
|
|
Power Consumption (Average)
|
21
|
|
Power Consumption (Maximum)
|
25 W
|
|
Total Number of Ports
|
16
|
|
USB
|
Yes
|
Product Details
Figure 2 shows the front panel of FWF-90D.
Figure 3 shows the back panel of FWF-90D.
Note:
|
①
|
USB Management Port
|
|
②
|
2×USB Ports
|
|
③
|
14x GE RJ45 Switch Ports /
10x GE RJ45 Switch and 4x RJ45 PoE Ports on PoE Models
|
|
④
|
2x GE RJ45 WAN Ports
|
FWF-90D provides these features:
Install in Minutes with FortiExplorer
The FortiExplorer wizard enables you to easily and quickly set up and configure FortiGate and FortiWiFi platforms with easy-to-follow instructions. The application runs on Windows, Mac OS X desktops and laptops as well as popular mobile devices. Simply connect to the appropriate USB port on the appliance, and be fully protected in minutes.
3G/4G WAN Connectivity
The FortiGate/FortiWiFi 90D Series includes a USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.
Compact and Reliable Form Factor
Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.
Superior Wireless Coverage
A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 90D and provides speedy 802.11n coverage on both 2.4 GHz and 5 GHz bands. The dualband chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.
Compare to Similar Items
Table 2 shows the comparison of FWF-90D.
|
Module
|
FWF-90D
|
FG-90D
|
|
Wireless Interface
|
802.11 a/b/g/n
|
–
|
|
USB Ports (Client / Server)
|
1 / 2
|
1 / 2
|
|
Height x Width x Length (inches)
|
1.72 x 9.2 x 8.78
|
1.72 x 8.5 x 8.78
|
|
Maximum Current
|
110 V / 1.5 A, 220 V / 0.75 A
|
110 V / 1.5 A, 220 V / 0.75 A
|
|
Power Consumption (Average / Maximum)
|
21 / 25 W
|
18 / 22 W
|
|
Internal Storage
|
32 GB
|
32 GB
|
