  • QSFP-40G-SR4-MM850
  • QSFP-40G-SR4-MM850

QSFP-40G-SR4-MM850

Model:QSFP-40G-SR4-MM850 - H3C Other Products
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

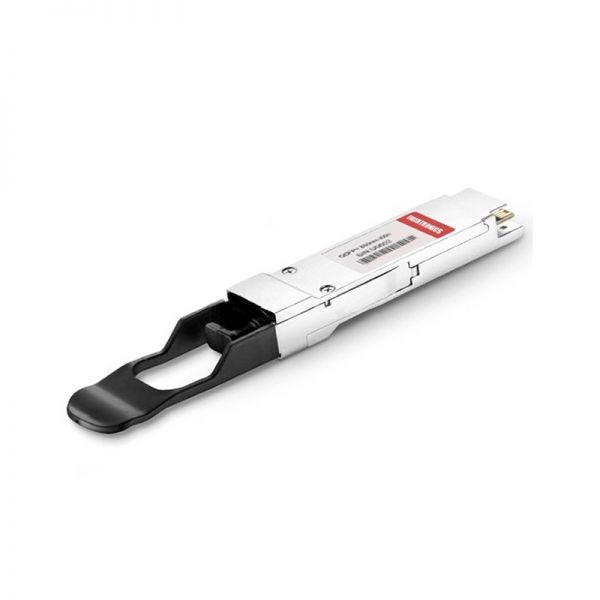

The H3C QSFP-40G-SR4-MM850 is a high-performance QSFP+ 40GBASE optical transceiver module designed to deliver efficient and reliable connectivity. Operating at a wavelength of 850nm, this transceiver supports multi-mode fiber (MMF) connections up to 100 meters. Additionally, it provides flexibility with its 40G to 4*10G support, making it an ideal choice for data centers, high-performance computing networks, and enterprise environments.

Quick Spec

Brand H3C
Model QSFP-40G-SR4-MM850
Wavelength 850nm
Max Distance 100m
Connector Type QSFP+

Product Features

  • ● Supports 40GBASE-SR4 standard
  • ● Operates at a wavelength of 850nm for reliable performance
  • ● Compatible with multi-mode fiber up to 100 meters
  • ● Allows for 40G to 4*10G breakout support
  • ● QSFP+ interface for high-speed connectivity

Product Applications

  • ● Ideal for data center networking solutions requiring 40G connectivity
  • ● Suitable for high-performance computing networks
  • ● Perfect for enterprise environments needing reliable and high-speed data transfer

Supported Options

Accessory Model
Breakout Cable H3C-QSFP-4SFP
Patch Cable H3C-MMF-3M
Transceiver Module H3C-SFP-10G-SR-MM850

Compare to Similar Items

Model Differences
H3C QSFP-40G-ER4 Supports distances up to 40km
H3C QSFP-40G-LR4 Supports single-mode fiber (SMF) up to 10km
H3C QSFP-40G-CSR4 Supports extended distance of 300m on MMF

Get more information

Check H3C QSFP-40G-SR4-MM850 price and QSFP-40G-SR4-MM850 datasheet, buy H3C QSFP-40G-SR4 modules with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact us through Live Chat or by emailing Contact@huatenmax.com.

Specification

QSFP-40G-SR4-MM850 Specifications

Brand H3C
Model QSFP-40G-SR4-MM850
Form Factor QSFP+
Data Rate 40 Gbps
Wavelength 850nm
Reach 100m
Cable Type Multimode Fiber (MMF)
Ports 4 x 10G
Interface 4x10G SR4
Optical Components VCSEL (Vertical-Cavity Surface-Emitting Laser) and PIN photodetectors
Temperature Range 0??C to 70??C (32??F to 158??F)
Power Consumption < 3.5W
MTBF 1,000,000 hours
Compatibility IEEE 802.3ba 40GBASE-SR4, IEEE 802.3ae 10GBASE-SR
Connector MTP/MPO
Hot Swappable Yes
Digital Diagnostic Monitoring (DDM) Yes
Safety Certification IEC 60825-1, FDA 21 CFR 1040.10 and 1040.11
EMC Certification FCC Part 15 Class B, CISPR22:2005/EN55022:2006 +A1:2007 Class B, EN 55024
RoHS Compliance Yes
Warranty 1 Year
