Overview

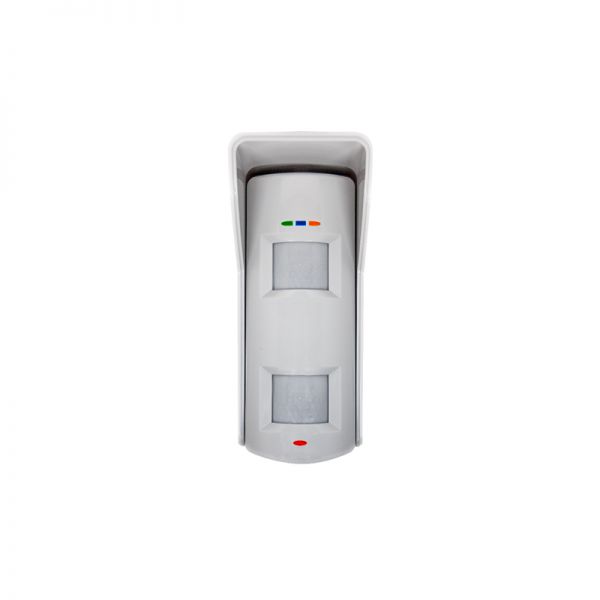

The Hikvision DS-PD2-T10P-WEH(868M) is a high-performance wireless external 10m tri-tech detector designed to enhance security for outdoor environments. Offering precise motion detection and advanced security features, this innovative device is an optimal solution for businesses and residential properties seeking top-notch perimeter protection.

Quick Spec

Operating Frequency 868 MHz
Detection Range 10 meters
Detection Method Tri-technology (PIR, MW, Anti-masking)
Power Supply 9-16V DC
Wireless Communication Encrypted

Product Features

  • ● 10m detection range for optimal perimeter security.
  • ● Tri-technology sensors combining PIR, microwave, and anti-masking.
  • ● Encrypted wireless communication for enhanced data security.
  • ● Weather-resistant design perfect for outdoor use.
  • ● Adjustable sensitivity settings to minimize false alarms.

Product Applications

  • ● Commercial properties needing robust perimeter protection.
  • ● Residential homes looking to secure their external boundaries.
  • ● Public facilities requiring advanced motion detection systems.

Supported Options

Mounting Bracket DS-PDM-Bracket-W
Weather Shield DS-PD2-WS
Battery Pack DS-PD-BP1

Compare to Similar Items

Model Difference
DS-PD2-T12AM 12m detection range, Anti-Masking only
DS-PD2-M10P 10m detection range, PIR and Microwave only
DS-PD1-W10 10m detection range, PIR only

Get more information

Check Hikvision DS-PD2-T10P-WEH(868M) price and DS-PD2-T10P-WEH(868M) datasheet, buy Hikvision DS-PD2-T10P-WEH(868M) with best price and fast shipping. Free Live Chat are supported. For further information about Hikvision DS-PD2-T10P-WEH(868M), contact us through Live Chat or Contact@huatenmax.com.

Specification

DS-PD2-T10P-WEH(868M) Specifications

Brand Hikvision
Model DS-PD2-T10P-WEH(868M)
Product Type Wireless External Tri-Tech Detector
Detection Range 10 meters
Sensing Technology Tri-Tech (PIR, Microwave, Temperature Compensation)
Wireless Frequency 868 MHz
Alarm Output Wireless Signal
Power Supply 3V DC (Lithium Battery)
Battery Life Up to 3 years
Temperature Range -25??C to 60??C (-13??F to 140??F)
Humidity Range Up to 95% RH (non-condensing)
Waterproof Rating IP55
Mounting Height 1.8 to 2.4 meters
Dimensions 88 mm x 82 mm x 256 mm
Anti-Tamper Protection Yes, front and rear tamper protection
Sensitivity Adjustment Yes, adjustable PIR sensitivity
Operating Frequency 868 MHz
LED Indicator Yes, with disable feature
Alarm Indicator Yes
Pet Immunity Yes, up to 20 Kg
