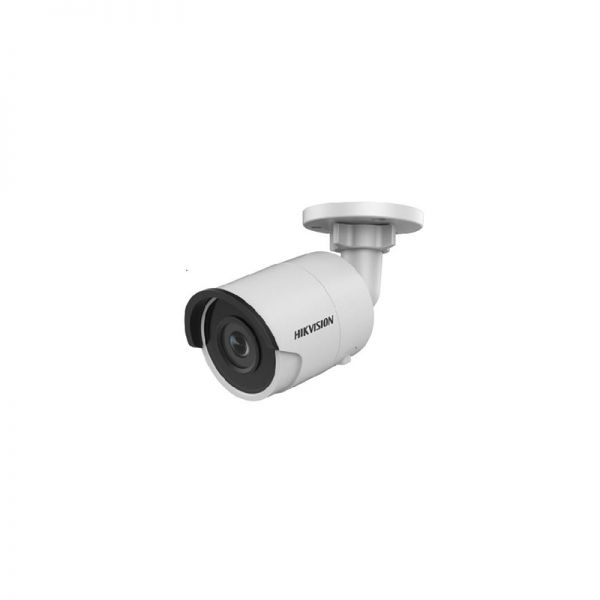

DS-2CD1043G0-I

Model

DS-2CD1043G0-I

Image Sensor

1/3" progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)

Shutter Speed

1/3 s to 1/100, 000 s

Slow Shutter

Yes

Auto-Iris

No

Day &Night

IR cut filter

DNR (Digital Noise Reduction)

3D DNR

WDR (Wide Dynamic Range)

Digital WDR

Angle Adjustment (Bracket)

Pan: 0 to 360, tilt: 0to 180, rotation: 0 to 360

DS-2CD1043G0-I Specification

Camera

Image Sensor

1/3" progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)

Shutter Speed

1/3 s to 1/100, 000 s

Slow Shutter

Yes

Auto-Iris

No

Day &Night

IR cut filter

DNR (Digital Noise Reduction)

3D DNR

WDR (Wide Dynamic Range)

Digital WDR

Angle Adjustment (Bracket)

Pan: 0° to 360°, tilt: 0°to 180°, rotation: 0° to 360°

Lens

Focal length

2.8 mm, 4 mm, 6 mm

Aperture

F2.0

Focus

No

FOV

2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°

4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°

6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°

Lens Mount

M12

IR

IR Range

Up to 30 m

Wavelength

850 nm

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Smart Feature-set

Region of Interest

1 fixed region for main stream and sub-stream


Max. Resolution

2560 × 1440

Main Stream

Max. Frame Rate

50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-stream

Max. Frame Rate

50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)

60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)

Image Enhancement

BLC, 3D DNR

Image Setting

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Auto, scheduled

Network

Network Storage

NAS (NFS, SMB/CIFS)

Alarm Trigger

Motion detection, video tampering alarm, illegal login

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version

5.5.2

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users 3 levels: Administrator, Operator, and User

Client

iVMS-4200, Hik-Connect, iVMS-5200

Web Browser

IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

General

Operating Conditions

-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.4 A, Max: 5 W

PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W

Protection Level

IP67

TVS 2000V lightning protection, surge protection and voltage transient protection

Material

Metal & Plastic

Dimensions

Ø 70 mm × 172.7mm ( 2.7" × 6.8")
