  • DS-2DE3A400BW-DE(F1)(S5)
  • DS-2DE3A400BW-DE(F1)(S5)

DS-2DE3A400BW-DE(F1)(S5)

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

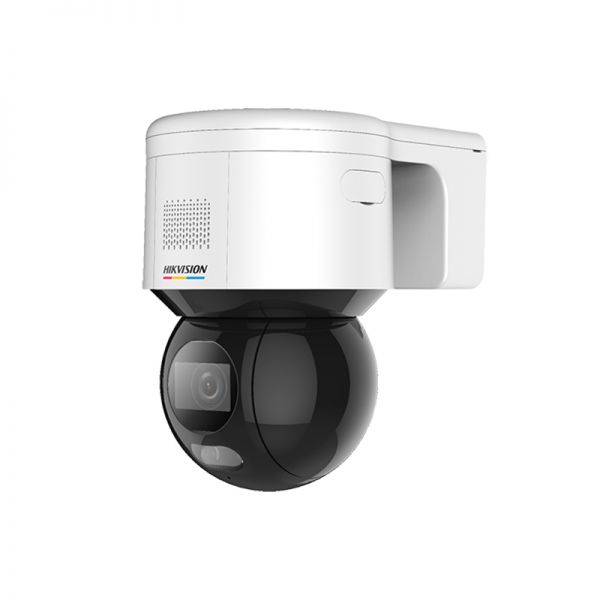

Introducing the Hikvision DS-2DE3A400BW-DE(F1)(S5), a robust 3-inch 4 MP ColorVu Network Speed Dome designed to provide superior image quality and wide area coverage. This advanced camera is part of the Hikvision series, offering unmatched clarity and low-light performance for diverse surveillance needs.

Quick Spec

Resolution 4 MP
Zoom 4x optical
Lens 2.8 mm - 12 mm
Pan Range 360
Power Supply 12 VDC & PoE

Product Features

  • ● High-quality 4 MP resolution for clear and detailed images
  • ● ColorVu technology for full-color imaging even in low-light situations
  • ● 360-degree endless pan rotation for comprehensive area coverage
  • ● 4x optical zoom for detailed viewing at a distance
  • ● Supports both 12 VDC and PoE power supply for flexible installation

Product Applications

  • ● City surveillance projects where capturing clear images of wide areas is crucial
  • ● Retail store security to monitor key areas and track activity in vibrant detail
  • ● Enterprise facilities needing comprehensive monitoring with high-definition video

Supported Options

Wall Mount DS-1602ZJ
Pendant Mount DS-1661ZJ
Corner Mount DS-1276ZJ

Compare to Similar Items

Model Difference
DS-2DE2A404IW-DE3 2 MP resolution, no ColorVu technology
DS-2DE4A425IW-DE 4 MP resolution, 25x optical zoom
DS-2DE4225IW-DE 2 MP resolution, 25x optical zoom

Get more information

For more details, contact us via Live Chat or at Contact@huatenmax.com. Check Hikvision DS-2DE3A400BW-DE(F1)(S5) price and DS-2DE3A400BW-DE(F1)(S5) datasheet, buy Hikvision DS-2DE3A400BW-DE(F1)(S5) series with the best price and fast shipping. Free Live Chat support is available.

Specification

DS-2DE3A400BW-DE(F1)(S5) Specifications

Brand Hikvision
Model DS-2DE3A400BW-DE(F1)(S5)
Camera Type Network Speed Dome
Camera Size 3-inch
Resolution 4 MP
Technology ColorVu
Image Sensor 1/1.8" Progressive Scan CMOS
Minimum Illumination 0.0005 Lux @ (F1.0, AGC ON)
Shutter Speed 1s to 1/30,000s
Day & Night IR cut filter with auto switch
Zoom Ratio 4x Optical, 16x Digital
Lens 2.8-12mm, Motorized
Field of View 100.2��-34.3�� (Horizontal), 54.2��-19.5�� (Vertical)
Focus Auto / Semi-automatic / Manual
PTZ Functions Pan: 0�� to 340��, Tilt: -5�� to 90��
Pan Speed Configurable, max 100��/s
Tilt Speed Configurable, max 50��/s
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Port
Audio Input 1 Mic in/Line in interface
Alarm 1 input, 1 output
Power Supply 12 VDC & PoE (802.3af, class 3)
Operating Conditions -30��C to 60��C (-22��F to 140��F)
