Position：Home / Products / Video Surveillance / Hikvision Video Surveillance / Hikvision Network Cameras

  • DS-2CD2685G0-IZS
  • DS-2CD2685G0-IZS

DS-2CD2685G0-IZS

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com1

Live Chat
Overview

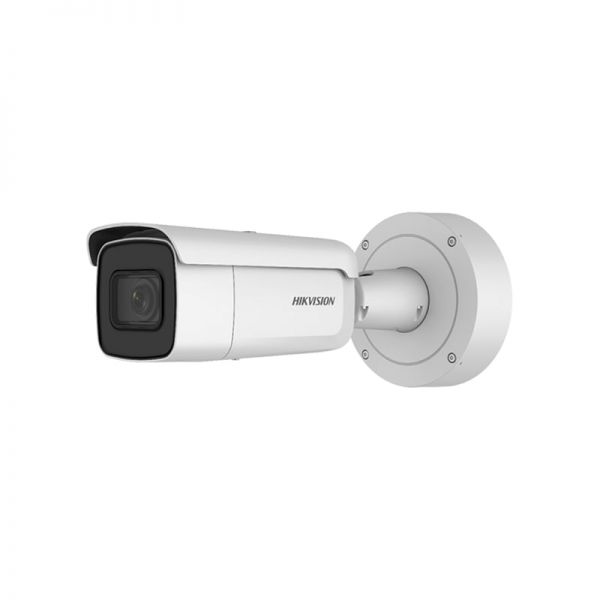

Hikvision DS-2CD2685G0-IZS is the 8 MP(4K) IR Varifocal Bullet Network Camera.

Quick Spec

Table 1 shows the quick spec.

Model

DS-2CD2685G0-IZS

Image Sensor

1/2" Progressive Scan CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)

Shutter time

1/3 s to 1/100,000 s

Slow shutter

Support

Lens

2.8 to 12 mm

Lens Mount

14

Adjustment Range

Pan: 0 to 360, tilt: 0 to 90, rotate: 0 to 360

Day& Night

IR Cut Filter

Wide Dynamic Range

120 dB

Digital noise reduction

3D DNR

Focus

Auto

Product Details

Hikvision DS-2CD2685G0-IZS provides these key features:

1/2" Progressive Scan CMOS

3840 2160 resolution

H.265, H.265+, H.264+, H.264

120dB WDR

BLC/3D DNR/ROI/HLC

IP67, IK10

Powered by Darkfighter

4 behavior analyses and face detection

Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)

Compare to Similar Item

Table 2 shows the comparison.

Model

DS-2CD2H43G0-IZS

DS-2CD2685G0-IZS

Image Sensor

1/3" Progressive Scan CMOS

1/2" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)

Shutter time

1/3 s to 1/100,000 s

1/3 s to 1/100,000 s

Slow shutter

Support

Support

Adjustment Range

Pan: 0 to 355, tilt: 0 to 75, rotate: 0 to 360

Pan: 0 to 360, tilt: 0 to 90, rotate: 0 to 360

Get More Information

Do you have any question about the DS-2CD2685G0-IZS

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

DS-2CD2685G0-IZS Specifications

Brand Hikvision
Model DS-2CD2685G0-IZS
Camera Type Bullet Camera
Resolution 8 MP
Lens Type Varifocal
IR Range Up to 50m
Image Sensor 1/2.5" Progressive Scan CMOS
Max Resolution 3840 �� 2160
Signal System PAL/NTSC
Minimum Illumination Color: 0.014 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
Wide Dynamic Range 120dB
Video Compression H.265+/H.265/H.264+/H.264
Power Supply 12 VDC �� 25%, PoE (802.3af, class 4)
Power Consumption 12 VDC, 0.7 A, Max: 8.64 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, Max: 10 W
Operating Conditions -30��C to 60��C (-22��F to 140��F), Humidity 95% or less (non-condensing)
Ingress Protection IP67
Dimensions Varies (model-specific)
Material Metal
Usage Outdoor
