Overview

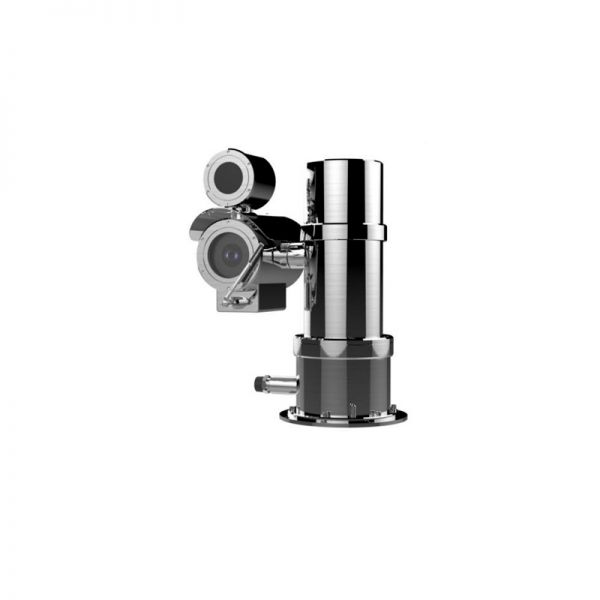

The Hikvision DS-2DY9236I-CWX is a high-performance 9-inch 2MP 36X DarkFighter Explosion Network Position system, designed to provide exceptional image quality and reliability even in challenging environments. With its advanced DarkFighter technology, this product captures clear, detailed images in low-light conditions, making it an ideal choice for a variety of industrial and security applications.

Quick Spec

Brand Hikvision
Model DS-2DY9236I-CWX
Resolution 2MP
Optical Zoom 36X
Technology DarkFighter

Product Features

  • ● High-quality 2MP resolution for clear and detailed images.
  • ● DarkFighter technology for superior low-light performance.
  • ● 36X optical zoom for detailed close-up views.
  • ● Explosion-proof design for use in hazardous environments.
  • ● Network position system for easy remote control and monitoring.

Product Applications

  • ● Industrial monitoring in hazardous areas such as oil refineries.
  • ● Security surveillance in low-light conditions or at night.
  • ● Remote monitoring of critical infrastructure and equipment.

Supported Options

Accessory Model
Explosion-proof Housing EX-HS-01
Mount Bracket MB-MT-02
Power Supply Unit PSU-101

Compare to Similar Items

Model Differences
DS-2DF9236I-AEL Non-explosion proof, same resolution and zoom
DS-2AE4225TI-D Lower resolution (1MP), 25X zoom, no DarkFighter technology
DS-2DY9250IAX-T Higher resolution (5MP), 50X zoom, same DarkFighter technology

Get more information

For further details about the Hikvision DS-2DY9236I-CWX, contact us via Live Chat or email at Contact@huatenmax.com. Check Hikvision DS-2DY9236I-CWX price and DS-2DY9236I-CWX datasheet, buy Hikvision DS-2DY Series with best price and fast shipping. Free Live Chat are supported.

Specification

DS-2DY9236I-CWX Specifications

Brand Hikvision
Model DS-2DY9236I-CWX
Camera Type 9-inch Network Positioning System
Image Sensor 2MP CMOS
Zoom Ratio 36X Optical Zoom
Minimum Illumination 0.001 Lux
Lens 5.7-205.2mm
Explosive Protection Yes
Network Interface 10Base-T/100Base-TX Ethernet
Power Supply AC 24V
Operating Temperature -40??C to 65??C
Ingress Protection IP68
Day/Night Mode IR Cut Filter
Wide Dynamic Range 120dB
Video Compression H.265/H.264
Max Image Resolution 1920 x 1080
Frame Rate 30fps
Infrared Distance Up to 500 meters
Pan/Tilt Range 360?? endless/ -20?? to 90??
Audio Input/Output 1x Audio Input, 1x Audio Output
