DS-2CD3686G2T-IZS

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

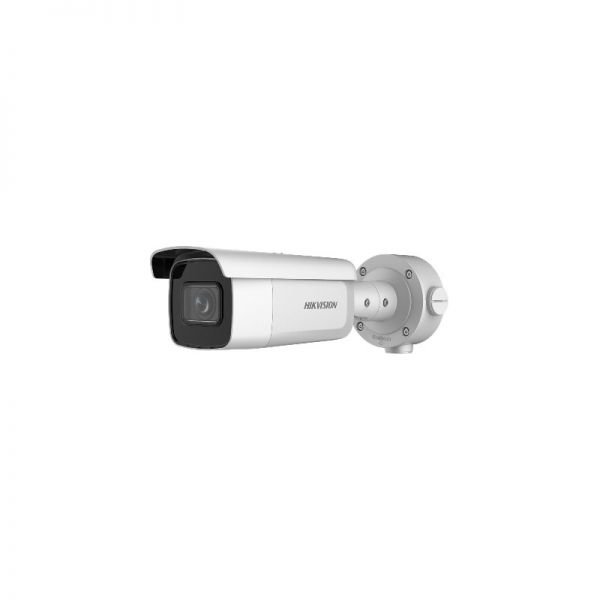

Introducing the Hikvision DS-2CD3686G2T-IZS, an 8 MP AcuSense Varifocal Bullet Network Camera designed for high-performance surveillance. With advanced AcuSense technology, this robust and versatile camera ensures enhanced security and intelligence. Featuring exceptional image quality and flexible installation options, the DS-2CD3686G2T-IZS is ideal for various applications, from commercial properties to urban monitoring.

Quick Spec

Resolution 8 Megapixels
Lens 2.8 to 12 mm Varifocal
IR Range Up to 100 meters
Compression H.265+/H.265/H.264+/H.264
Weatherproof Rating IP67

Product Features

  • ● 8 MP high-resolution images
  • ● Powered by Hikvision AcuSense technology for accurate motion detection
  • ● Motorized varifocal lens for flexible field of view adjustment
  • ● Enhanced low-light performance with Darkfighter technology
  • ● IP67 weatherproof rating for outdoor applications

Product Applications

  • ● Commercial buildings ?C Ensure high levels of security for office complexes and retail spaces.
  • ● Transport hubs ?C Monitor large areas such as airports, train stations, and bus terminals.
  • ● Urban environments ?C Suitable for city surveillance to enhance public safety and security.

Supported Options

Wall Mount Bracket DS-1273ZJ-135
Junction Box DS-1280ZJ-DM21
Ceiling Mount Bracket DS-1271ZJ-110

Compare to Similar Items

Model Difference
DS-2CD2686G2-IZS Fixed lens instead of a varifocal lens
DS-2CD2386G2-ISU/SL Integrated microphone and speaker for real-time communication
DS-2CD2T86G2-2I Extended IR range up to 150 meters

Get more information

For further information about the Hikvision DS-2CD3686G2T-IZS, including pricing and datasheet details, please contact us via Live Chat or at Contact@huatenmax.com. Check Hikvision DS-2CD3686G2T-IZS price and DS-2CD3686G2T-IZS datasheet, buy Hikvision DS-2CD3686G2T-IZS with the best price and fast shipping. Free Live Chat is supported.

Specification

DS-2CD3686G2T-IZS Specifications

Brand Hikvision
Model DS-2CD3686G2T-IZS
Image Sensor 1/1.8" Progressive Scan CMOS
Resolution 8 MP (3840 �� 2160)
Lens 2.8 to 12 mm motorized varifocal lens
Minimum Illumination 0.0018 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F2.0, AGC ON), 0 Lux with IR
Day & Night IR Cut Filter
WDR 120 dB
Digital Noise Reduction 3D DNR
H.265+ Compression Supported
IR Range Up to 80m
Power Supply 12 VDC �� 25%, PoE (802.3af, Class 3)
Power Consumption Max 12W
Operating Conditions -30��C to 60��C (-22��F to 140��F), Humidity 95% or less (non-condensing)
Ingress Protection IP67
Impact Protection IK10
Dimensions Varies by mounting options
Compression Standards H.265, H.264, MJPEG
Audio Compression G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2
Interface 1 RJ45 10M/100M Ethernet interface
Video Bit Rate 32 Kbps to 16 Mbps
