Position：Home / Products / Video Surveillance / Hikvision Video Surveillance / Hikvision Turbo HD Cameras

  • DS-2CE56D0T-IR
  • DS-2CE56D0T-IR

DS-2CE56D0T-IR

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

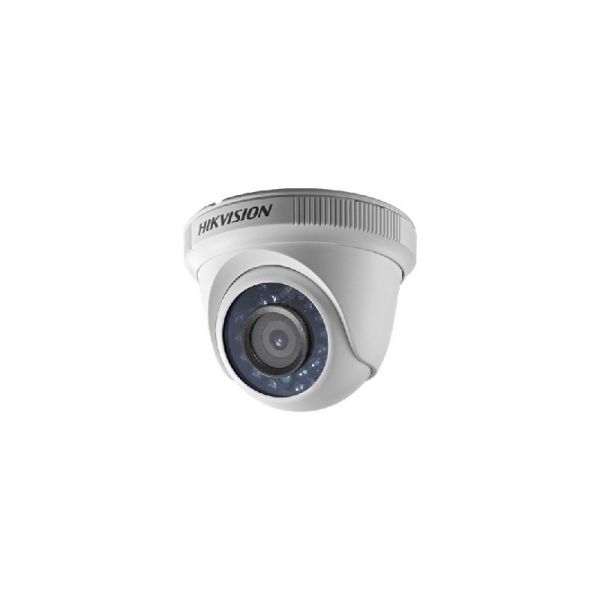

The Hikvision DS-2CE56D0T-IR is a 2 MP Fixed Turret Camera designed to deliver high-quality video surveillance in a compact form. Ideal for both residential and commercial applications, this robust camera provides reliable performance with an array of advanced features.

Quick Spec

Resolution 2 MP
Lens Type Fixed
IR Range Up to 20 meters
Video Output HD-TVI
Operating Temperature -40C to 60C (-40F to 140F)

Product Features

  • ● 2 Megapixel high-resolution video capture
  • ● True Day/Night functionality
  • ● Up to 20 meters IR night vision
  • ● Weatherproof design for outdoor use (IP66)
  • ● HD-TVI output for high-definition video transmission

Product Applications

  • ● Home security systems C monitor entrances, driveways, and backyards
  • ● Office surveillance C ensure workplace safety and monitor critical areas
  • ● Retail store monitoring C prevent theft and monitor customer activity

Supported Options

Wall Mount Hikvision DS-1258ZJ
Junction Box Hikvision DS-1280ZJ-S
Power Adapter Hikvision 12VDC/1A

Compare to Similar Items

Model Difference
Hikvision DS-2CE56C0T-IR 1 MP resolution vs 2 MP on DS-2CE56D0T-IR
Hikvision DS-2CE56D5T-IT3 40 meters IR range vs 20 meters on DS-2CE56D0T-IR
Hikvision DS-2CE56D7T-ITM 120 dB true WDR vs no WDR on DS-2CE56D0T-IR

Get more information

For further information about the Hikvision DS-2CE56D0T-IR and its pricing, please contact us through Live Chat or at Contact@huatenmax.com. Check Hikvision DS-2CE56D0T-IR price and DS-2CE56D0T-IR datasheet, buy Hikvision DS-2CE56D0T-IR with best price and fast shipping. Free Live Chat is supported.

Specification

Hikvision DS-2CE56D0T-IR Specifications
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1920(H) ?? 1080(V)
Minimum Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30) s to 1/50,000 s
Lens 3.6mm (2.8mm, 6mm optional)
Lens Mount M12
Day & Night IR cut filter with auto switch
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
Horizontal Resolution 1080p
Synchronization Internal Synchronization
Signal-to-Noise Ratio More than 52 dB
Video Output 1Vp-p Composite Output (75??/BNC)
Power Supply 12 VDC ??15%
Power Consumption Max. 4 W
IR Range Up to 20m
Operating Conditions -40??C to 60??C (-40??F to 140??F), Humidity 90% or less (non-condensing)
Weatherproof Rating IP66
Dimensions ?110 ?? 93.2 mm (?4.33?? ?? 3.67??)
Material Plastic
