Overview

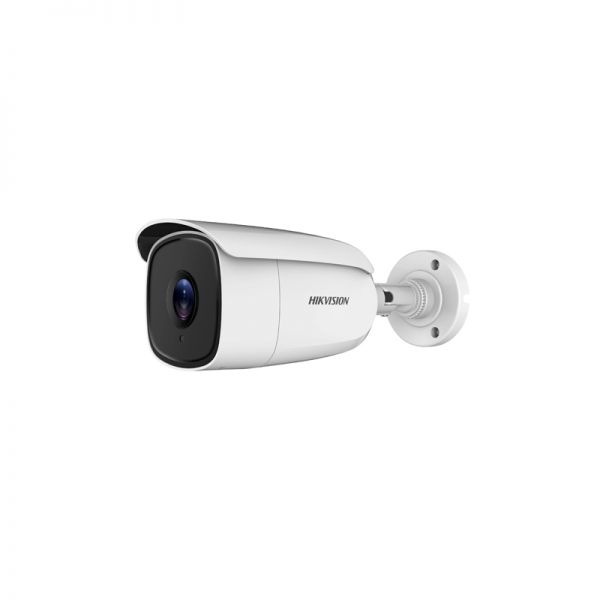

Hikvision DS-2CE18U8T-IT3 is the 4K Ultra-Low Light Bullet Camera.

Quick Spec

Table 1 shows the quick spec.

Model

DS-2CE18U8T-IT3

Image Sensor

8.29 MP high performance CMOS

Effective Pixels

3840 (H) 2160 (V)

Shutter Time

PAL: 1/12.5 s to 1/10,000 s
NTSC: 1/15 s to 1/10,000 s

Lens Mount

M12

Adjustment Range

Pan: 0 to 360; Tilt:0 to 180; Rotate: 0 to 360

Day& Night

IR cut filter with auto switch

Video Frame Rate

PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps

HD Video Output

1 Analog HD output

Synchronization

Internal Synchronization

Product Details

Hikvision DS-2CE18U8T-IT3 provides these key features:

8.29 Megapixel high-performance CMOS

Ultra-low light

3840 2160 resolution

2.8 mm, 3.6 mm, 6 mm fixed focal lens

120 dB true WDR, 3D DNR

EXIR 2.0,smart IR, up to 60m IR distance

IP67

Up the Coax(HIKVISION-C)

Compare to Similar Item

Table 2 shows the comparison.

Model

DS-2CE56D8T-AVPIT3Z

DS-2CE18U8T-IT3

Image Sensor

2 Megapixel high-performance CMOS

8.29 MP high performance CMOS

Effective Pixels

1920(H)*1080(V)

3840 (H) 2160 (V)

Shutter Time

1/25(1/30) s to 1/50,000 s

PAL: 1/12.5 s to 1/10,000 s
NTSC: 1/15 s to 1/10,000 s

Day& Night

IR cut filter with auto switch

IR cut filter with auto switch

Get More Information

Do you have any question about the DS-2CE18U8T-IT3

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

DS-2CE18U8T-IT3 Specification

Camera

Image Sensor

8.29 MP high performance CMOS

Effective Pixels

3840 (H) × 2160 (V)

Shutter Time

PAL: 1/12.5 s to 1/10,000 s

NTSC: 1/15 s to 1/10,000 s

Lens Mount

M12

Adjustment Range

Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360°

Day& Night

IR cut filter with auto switch

Video Frame Rate

PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps

NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps

HD Video Output

1 Analog HD output

Synchronization

Internal Synchronization

Menu

D/N Mode

Auto / Color / B/W

Auto White Balance

Auto/Manual/Natural

BLC

Support

Language

English

General

Operating Conditions

-40 °C - 60 °C (-40 °F - 140 °F)

Humidity 90% or less (non-condensing)

Power Supply

12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.

Weather Proof

IP67

IR Range

Up to 60m

Communication

Up the coax

Protocol: HIKVISION-C(Coaxitron)

Dimension

70 mm × 224.7 mm (2.75" × 8.85" )
