Position：Home / Products / Wireless / HPE Wireless / HPE Aruba Access Points

  • JW795A
  • JW795A

JW795A

Quote | Help
Overview

Featuring the 4x4:4SS MU-MIMO capability, advanced Aruba ClientMatch radio management, and Aruba Beacon technologies, the 310 Series enables an all-wireless digital work environment in a cost-effective manner.

Quick Specs

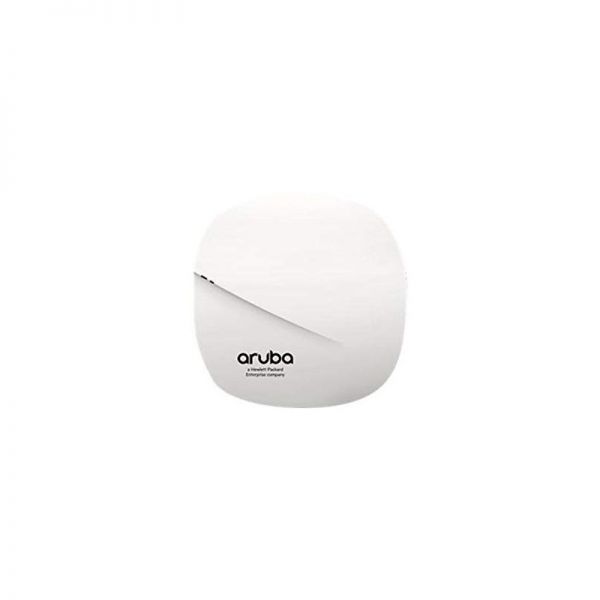

Figure 1 shows the appearance of JW795A.
JW795A

Table 1 shows the Quick Specs.

Product Code

JW795A

Device Type

Wireless access point

Ruggedized Design

Indoor

Frequency Band

2.4 GHz, 5 GHz

Interfaces

1 x 1000Base-T - RJ-45 | 1 x USB 2.0 - Type A | 4 x - RP-SMA

Power Consumption Operational

12.7 Watt

Capacity

Wireless clients per Wi-Fi radio: 255 | BSSIDs per radio: 16

Antenna

External detachable

Product Details

Figure 2 shows the front panel of JW795A.
JW795A front

JW795A provides these features:

Cost-Efficient Wave 2 Access Points for Mid-Market

The Aruba 310 Series Access Points provide fast gigabit data speeds and a superb user experience for mobile devices, Internet of Things (IoT) devices, and applications in high density office environments.

Integrated BLE Beacon to remotely manage battery-powered Aruba Beacons.

A Choice of Operating Modes to Meet Your Unique Management and Deployment Requirements.

Aruba 310 Series Access Points offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding when managed by Aruba Mobility Controllers.

In Aruba Instant mode (Aruba IAP) a single AP automatically distributes the network configuration to other Instant APs. A built-in migration path allows 310 Series Instant APs to become part of a WLAN that is managed by a Mobility Controller.

Provide Simultaneous Data Transmission to Multiple Devices and Improving Network Efficiency

Aruba 310 Series Access Points delivers aggregate 2.1Gbps data rate with 1.7Gbps @ 5GHz and 400Mbps @ 2.4GHz

4x4:4SS SU/MU-MIMO @ 5GHz; and 2x2:2SS SU-MIMO @ 2.4GHz to ensure the highest performance.

The Accessories

Table 2 shows the accessories of JW795A.

Mount Kit

JW046A

AP-220-MNT-W1 Basic Mount Kit:HP Aruba Campus AP Mounting Kits

JW047A

AP-220-MNT-W1W Mt Basic White Kit

Power Adaptor

R3K00A

AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5mm connector

External Antenna

JW009A

AP-ANT-1W 2.4-2.5GHz (4dBi)/4.9-5.875GHz (6dBi) Hi Gain Dual-band Omni-Dir Indoor Antenna

Compare to Similar Items

Table 3 shows the comparison of JW795A.

Module

JW795A

JW805A

Device Type

Wireless access point

Wireless access point

Ruggedized Design

Indoor

Indoor

Frequency Band

2.4 GHz, 5 GHz

2.4 GHz, 5 GHz

Interfaces

1 x 1000Base-T - RJ-45 | 1 x USB 2.0 - Type A | 4 x - RP-SMA

1 x 1000Base-T - RJ-45 | 1 x USB 2.0 - Type A | 4 x antenna - RP-SMA

Power Consumption Operational

12.7 Watt

14.4 Watt

Capacity

Wireless clients per Wi-Fi radio: 255 | BSSIDs per radio: 16

Wireless clients per Wi-Fi radio: 255 | BSSIDs per radio: 16

Antenna

External detachable

External detachable

Get More Information

Do you have any question about the JW795A

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

JW795A Specification

General

Device Type

Wireless access point

Ruggedized Design

Indoor

Width

7.2 in

Depth

7.1 in

Height

1.9 in

Networking

Form Factor

In-ceiling

Connectivity Technology

Wireless

Line Coding Format

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Spread Spectrum Method

OFDM, DSSS

Frequency Band

2.4 GHz, 5 GHz

Performance

Concurrent data rate (5 GHz): 1733 Mbps | Concurrent data rate (2.4 GHz): 400 Mbps | Peak data rate: 2.1 Gbps

Capacity

Wireless clients per Wi-Fi radio: 255 | BSSIDs per radio: 16

Status Indicators

System, wireless

Compliant Standards

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac

Antenna

Antenna

External detachable

Antenna Qty

4

Expansion / Connectivity

Interfaces

1 x 1000Base-T - RJ-45 | 1 x USB 2.0 - Type A | 4 x - RP-SMA

Power

Power Consumption Operational

12.7 Watt

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

122 °F

Humidity Range Operating

5 - 93% (non-condensing)
