Position：Home / Products / Switches / HPE Switches / HPE Aruba Networking Switches

  • JL262A
  • JL262A

JL262A

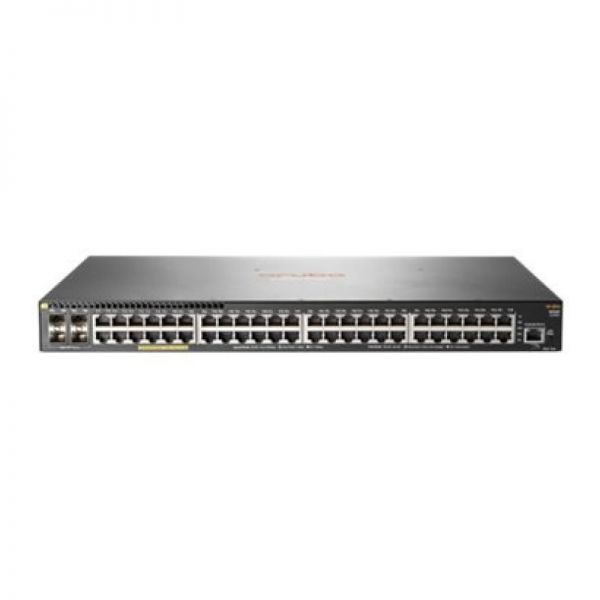

Model:HPE JL262A - Aruba 2930F Switch
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

The Aruba 2930F 48G PoE+ 4SFP Switch, also known as JL262A, is a high-performance and reliable networking solution for enterprise environments. Designed by Aruba, a trusted brand in the IT industry, this switch offers advanced features and capabilities to meet the demanding needs of modern networks.


Quick Spec

Table 1 shows the quick spec of JL262A.

Ports 48 x 10/100/1000
Power over Ethernet (PoE) Yes
SFP Slots 4
Power consumption 459 W (maximum)
Switching capacity 104 Gbps


Product Features

  • ● Powerful and reliable performance
  • ● Support for Power over Ethernet (PoE+)
  • ● Flexibility with SFP slots for uplink connections
  • ● Advanced management capabilities
  • ● High-speed and low-latency switching


Product Applications

  • ● Enterprise network deployments
  • ● Data center and server connectivity
  • ● Voice, video, and data convergence


Compare to Similar Items

Table 2 shows the comparison to similar items of JL262A.

Model Differences
JL261A No PoE support
JL256A 24 ports, no PoE support
JL253A 24 ports, PoE+ support


Get more information

Do you have any questions about the JL262A price?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

JL262A Specifications
Specification Details
Product Model JL262A
Switch Series Aruba 2930F
Ethernet Ports 48 x Gigabit PoE+ RJ-45
SFP Ports 4 x 1G/10G SFP+ uplinks
Power consumption 459 W (maximum)
Heat dissipation 293 BTU/hr (309.1 kJ/hr)
Input voltage 100 - 127 / 200 - 240 VAC, rated
Switching Capacity 104 Gbps
PoE capability 370 W PoE+
Throughput up to 77.4 Mpps
Power Input Internal power supply (100-240V) with dual redundant power supplies option
Dimensions 1.73 x 17.42 x 11.98 in
Operating Temperature 0°C to 55°C
Operating Humidity 15% to 95%, non-condensing
