R8S91A

Overview

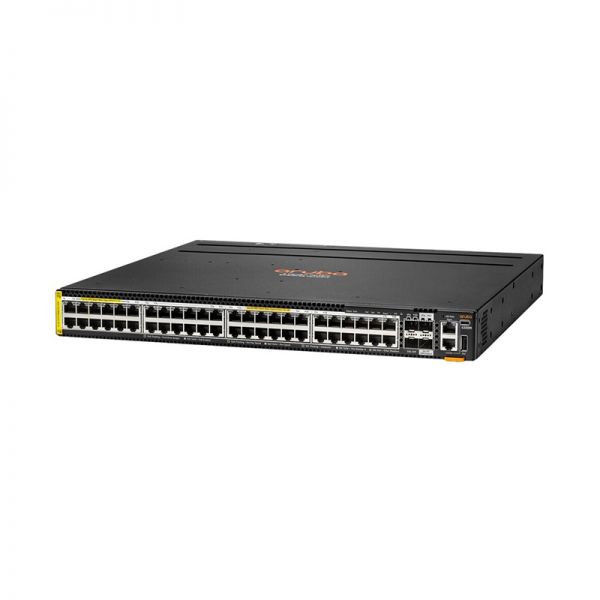

Aruba 6300M 48SR5 CL8/CL6 2p50G 2p10G Switch is the latest addition to the Aruba Switches series. This advanced network switch is designed to meet the ever-increasing demands of modern businesses. With its powerful features and cutting-edge technology, the Aruba 6300M 48SR5 CL8/CL6 2p50G 2p10G Switch provides a reliable and efficient solution for networking needs.

Product Features

The Aruba 6300M 48SR5 CL8/CL6 2p50G 2p10G Switch offers a range of features that ensure optimal performance and connectivity. Some of the key features include:

  • ● High-speed data transmission with 48 ports, including 2x 50G and 2x 10G ports.
  • ● Advanced switching technology for seamless data transfer and enhanced network performance.
  • ● Support for VLAN and QoS, ensuring efficient traffic management and prioritization.
  • ● Robust security features to safeguard sensitive information and protect against cyber threats.
  • ● Easy management through a user-friendly interface, allowing for effortless configuration and monitoring.
  • ● Energy efficient design, minimizing power consumption and reducing environmental impact.

Key Advantages

  • ● Enhanced network performance and reliability.
  • ● Improved data transmission speed.
  • ● Secure and protected network environment.
  • ● Efficient traffic management and prioritization.

Product Applications

The Aruba 6300M 48SR5 CL8/CL6 2p50G 2p10G Switch is suitable for various network environments and can be used in the following scenarios:

  • ● Enterprise networks
  • ● Data centers
  • ● Educational institutions

Configuration and Management

Configuring and managing the Aruba 6300M 48SR5 CL8/CL6 2p50G 2p10G Switch is a seamless process. Its user-friendly interface allows for easy setup and monitoring. It also supports remote management, enabling administrators to efficiently manage multiple switches from a central location.

Get more information

Do you have any questions about the Aruba 6300M 48SR5 CL8/CL6 2p50G 2p10G Switch price?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

R8S91A Specifications

Power consumption With single JL086A PSU:
Idle: 207W
100% Traffic Rate: 283W
With single JL087A PSU:
Idle: 208W
100% Traffic Rate: 282W
With single JL670A PSU:
Idle: 211W
100% Traffic Rate: 283W
Input voltage JL670A PSU: 110V-120V/208V-240V
JL086A PSU: 100V-240V
JL087A PSU: 110V-240V
Ports

48-port Smart Rate 100M**/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port on ports 1‑12, and up to 60W per port on ports 13‑48 (MACsec);
2x 10G/25G/50G* SFP ports;
2x 1G/10G SFP ports (LRM + MACsec);
Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 90W);
1x USB‑C Console Port;
1x RJ Console Port;
1x OOBM port;
1x USB Type A Host port

Notes:
*50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which requires QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.
**100M use on Smart Rate ports is limited to full‑duplex only. For 100M half‑duplex support, use 1G ports on other models.

Latency 1Gbps: 4.24μSec,
10Gbps: 1.50μSec,
25Gbps: 2.91μSec,
50Gbps1: 3.49μSec
Switching capacity 880 Gbps
Stacking capabilities Up to 10 switches per stack

NOTE: CX 6300L switches only stack with other CX 6300L switches
Throughput 535 Mpps
Memory and processor

Quad Core Arm Cortex™ A72 @ 1.8GHz,
8 GB DDR4, 32 GB eMMC

16 MB Shared Packet Buffer Memory

Power supply name 2 field-replaceable, hot-swappable power supply slots
1 minimum power supply required (ordered separately)
Supported PSUs
JL086A
JL087A
JL670A
JL758A
Max PoE Power: 2880W
PoE capability Max PoE Power: 2880W
Weight 6.71 kg (14.8 lbs)
Dimensions 4.4 x 44.2 x 38.5 cm (1.73 x 17.4 x 15.2 in)
