Position：Home / Products / Switches / HPE Switches / HPE Aruba Networking Switches

  • JL658A
  • JL658A

JL658A

Model:JL658A - Aruba 6300M Series Switch
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com1

Live Chat
Overview

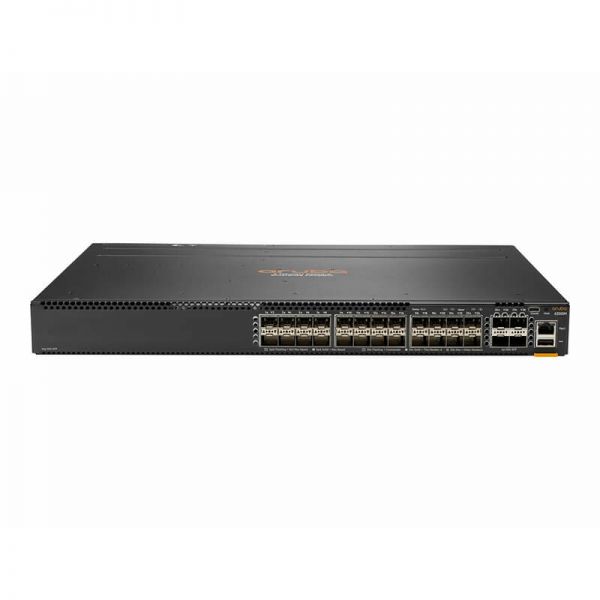

The JL658A from Aruba is a high-speed switch from the 6300M series. Equipped with 24 SFP+ ports and 4 SFP56 ports, it guarantees lightning-fast data transfers across the network.


Quick Spec

Table 1 shows the quick spec of the JL658A.
Product Code JL658A
Manufacturer Aruba
Product Type Switch
Ports 24 SFP+ and 4 SFP56
Series 6300M


Product Features

  • ● High-speed 24 SFP+ and 4 SFP56 ports for lightning-fast data transfers
  • ● Part of the 6300M series known for their reliability and performance
  • ● Developed by Aruba, a trusted name in networking
  • ● Designed for optimal space utilization and minimal power consumption
  • ● Robust construction for a long service life

Product Applications

  • ● Enterprise networks requiring high-speed connectivity
  • ● Data centers looking for reliable, fast data transfers
  • ● Service providers requiring high-performance switches


Supported Options

Table 2 shows the supported options of the JL658A.
Model Accessory
JL083A Aruba X372 54VDC 680W 100-240VAC Power Supply
JL084A Aruba X372 54VDC 1050W 110-240VAC Power Supply
JL363A Aruba 2930M 2-port Stacking Module


Compare to Similar Items

Table 3 shows the comparison to similar items of the JL658A.
Model Differences
JL659A More ports, different form factor
JL657A Lesser ports, different form factor
JL656A More SFP56 ports, same number of SFP+ ports


Get more information

Do you have any question about the JL658A price?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

JL658A Specifications
Product Model Aruba 6300M
Device Type Switch
Ports 24x 1G/10G SFP+ ports; 4x 1G/10G/25G*/50G SFP ports; 1x USB‑C Console Port; 1x OOBM port; 1x USB Type A Host port Notes: *50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which requires QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.
Performance 480 Gbps
Switching Capacity 880 Gbps
Throughput 360 Mpps
Memory and processor Quad Core ARM Cortex™ A72 @ 1.8GHz, 8 GBytes DDR4
32 GBytes eMMC
8 MB Shared Packet Buffer Memory
Latency 1Gbps: 1.99μSec,
10Gbps: 1.49μSec,
25Gbps: 2.85μSec
50Gbps: 2.82μSec
Throughput  654 Mpps
Stacking capabilities  Up to 10 switches per stack
Input voltage  JL085A PSU: 100V‑240V
Power consumption  Idle: 51W
100% Traffic Rate: 85W
Product dimensions (metric)  4.4 x 44.2 x 38.5 cm
Weight  5.11 kg
