JE072B

Model:JE072B - HP 5120 SI Switches
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

HPE FlexNetwork 5120 SI Series switches support stacking, static Layer 3 routing, ACLs and IPv6. This model has 48x 10/100/1000 ports and 4 x GbE SFP ports. The JE072B is part of the HPE FlexNetwork portfolio of campus switches. They are campus switches ideal for medium and large enterprise networks.

Quick Spec

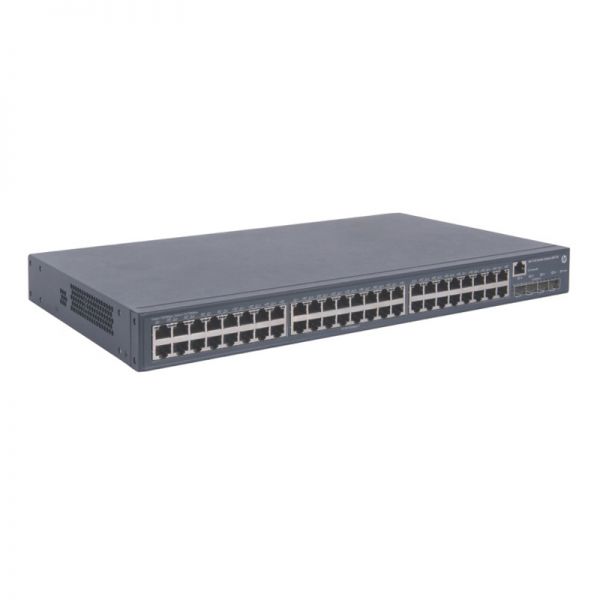

Figure 1 shows the appearance of HPE JE072B.

HPE-JE072B-Appearance

Table 1 shows the quick spec.

Product Code

JE072B

Type

HPE FlexNetwork 5120 48G SI Switch

Ports

 48 x RJ-45 autosensing 10/100/1000 ports
4 x fixed Gigabit Ethernet SFP ports

Throughput

up to 77.4 Mpps

Routing/switching capacity

104 Gbps

Memory and processor

 128 MB SDRAM
Packet buffer size: 1 MB
128 MB flash

Dimensions

17.3 x 10.24 x 1.72 in (43.9 x 26 x 4.37 cm)

Weight

11.02 lb (5 Kg)

Product Details

Figure 2 shows the front panel of HPE JE072B.

HPE-JE072B-Front-Panel

Note:

①

48 × 10/100/1000Base-T autosensing Ethernet

port

②

4 × 1000Base-X SFP port

③

Console port

Figure 3 shows the back panel of HPE JE072B.

HPE-JE072B-Back-Panel

Note:

①

AC-input power receptacle

②

Grounding screw

Compare to Similar Items

Table 2 shows the comparison.

Product Code

JE072B

JE073B

JE074B

Type

HPE FlexNetwork 5120 48G SI Switch

HPE FlexNetwork 5120 16G SI Switch

HPE FlexNetwork 5120 24G SI Switch

Ports
  • ● 48 x RJ-45 autosensing 10/100/1000 ports
  • ● 4 x fixed Gigabit Ethernet SFP ports
  • ● 16 x RJ-45 autosensing 10/100/1000 ports
  • ● 4 x fixed Gigabit Ethernet SFP ports
  • ● 24 x RJ-45 autosensing 10/100/1000 ports
  • ● 4 x fixed Gigabit Ethernet SFP ports

Throughput

up to 77.4 Mpps

up to 29.8 Mpps

up to 41.7 Mpps

Memory
  • ● 128 MB SDRAM
  • ● Packet buffer size: 1 MB
  • ● 128 MB flash

  • ● 128 MB SDRAM
  • ● Packet buffer size: 0.5 MB
  • ● 128 MB flash

  • ● 128 MB SDRAM
  • ● Packet buffer size: 0.5 MB
  • ● 128 MB flash

Get more information

Do you have any question about the JE072B

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

JE072B Specification

Type

HPE FlexNetwork 5120 48G SI Switch

Differentiator

48 x 10/100/1000BASE-T and 4 GbE SFP ports

Ports

· 48 x RJ-45 autosensing 10/100/1000 ports

· 4 x fixed Gigabit Ethernet SFP ports

Memory and processor

· 128 MB SDRAM

· Packet buffer size: 1 MB

· 128 MB flash

Latency

1000 Mb Latency: < 3 µs

Throughput

up to 77.4 Mpps

Routing/switching capacity

104 Gbps

Stacking capabilities

IRF

4 switches

Management features

IMC - Intelligent Management Center

Command-line interface

Web browser

SNMP manager

Input voltage

100 - 240 VAC, rated (depending on power supply chosen)

Operating temperature range

0 to 45°C

Operating humidity range

10 to 90% (noncondensing)

Power consumption

59.8 W (maximum)

Heat dissipation

204 BTU/hr (215.22 kJ/hr)

Minimum dimensions (W x D x H)

17.3 x 10.24 x 1.72 in (43.9 x 26 x 4.37 cm)

Weight

11.02 lb (5 Kg)
