Quick Quote ico
  • 850519-S01
  • 850519-S01

850519-S01

Overview

The HPE ProLiant DL380 Gen9 Server delivers the latest performance and expandability. Reliability, serviceability and near continuous availability, backed by a comprehensive warranty, makes it ideal for any server environment. Deploy the data center standard.HPE 850519-S01,Designed to reduce costs and complexity, leveraging Intel’s latest E5-2600 v4 processors with 21%2 performance gain, plus the latest HPE 2400 MHZ DDR4 SmartMemory supporting 3.0 TB and up to 23%3 performance increase. Supporting 12 Gb/s SAS, 40 Gb NIC with broad range compute options. HPE Persistent Memory, the world’s first NVDIMM optimized on ProLiant, offering unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission critical applications, and can be deployed with confidence.

Quick Spec

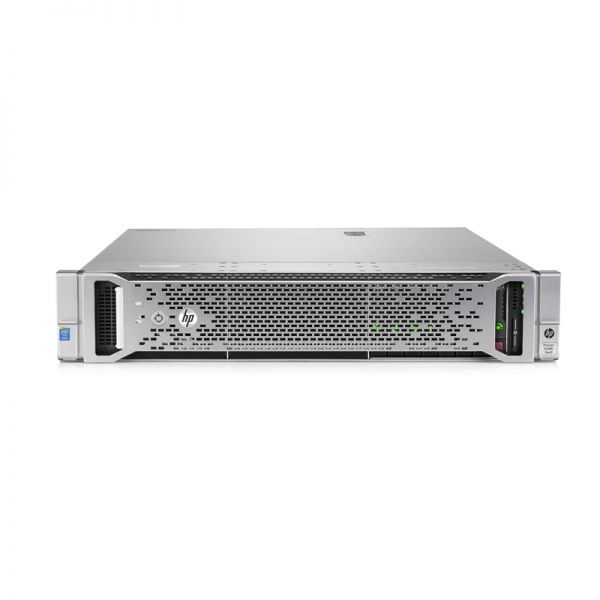

Figure 1 shows the appearance of HPE 850519-S01.

HPE-850519-S01-Front-1

Table 1 shows the quick spec.

Product Code

850519-S01

Processor

  • ● Intel® Xeon® E5-2650 v4 (12 core, 2.2 GHz, 30 MB, 105W)

Number of processors

1

Processor core available

12

Processor cache

30MB

Processor speed

2.2GHz

Form factor (fully configured)

2U

Product dimensions (H x W x D)

3.44 x 17.54 x 26.75 in

Weight

32.6 lb

Product Details

Figure 2 shows the front panel of HPE 850519-S01.

HPE-850519-S01-Front-2

Note:

Quick removal access panel

Universal Media bay. 2 USB 2.0 and VGA standard (8SFF bay optional)

Optional Optical drive. Requires Universal Media bay

Optional 2 SFF HDD, blank shown. Requires Universal Media bay

Drive Bay 2. Blank shown, 8SFF or 6NVMe optional

8 SFF Drive Cage Bay

Power On/Standby button and system power LED button

Health LED

NIC status

UID button

USB 3.0

Serial label pull tag

Bay 3

Bay 2

Bay 1

Figure 3 shows the back panel of HPE 850519-S01.

HPE-850519-S01-Rear

Note:

PCI Slots (Slots 1-3 top to bottom, riser shipped standard)

PCI Slots (Slots 4-6top to bottom, requires second riser card, and second processor)

Optional serial port

Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end)

Power supply Power connection

Power supply Power LED

HPE Flexible Slot Power Supply bay 2 (800w shown)

Power supply Power connection

Power supply Power LED

HPE Flexible Slot Power Supply bay 1 (800w shown)

VGA connector

Embedded 4x1GbE Network Adapter

USB 3.0 connectors (2)

Unit ID LED

Optional FlexibleLOM ports (Shown: 4x1GbE)

The Accessories

Table 2 shows the recommended elements for the HPE 850517-S01.

Product number

Description

872475-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872477-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870753-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872479-B21

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

868818-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875503-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

Compare to Similar Items

Table 3 shows the comparison between HPE 850519-S01 and HPE 793308-B21.

Product Code

850519-S01

793308-B21

Number of processors

1

2

Processor core available

12

8

Processor cache

30MB

20MB L3

Processor speed

2.2GHz

2.0GHz

Get more information

Do you have any question about the HPE 850519-S01 Sever

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

HPE 850519-S01 Specification

Processor

  • Intel® Xeon® E5-2650 v4 (12 core, 2.2 GHz, 30 MB, 105W)

Number of processors

1

Processor core available

12

Processor cache

  • 30MB L3

Processor speed

  • 2.2GHz

Form factor (fully configured)

  • 2U

Form factor chassis

  • Rack

Power supply type

  • 2 HPE 500W flex slot platinum power supplies

Expansion slots

  • 3 PCIe 3.0, 2 full-height/half-length and 1 half-length/full-height slots

Memory, maximum

  • 768 GB

Memory slots

  • 12 DIMM slots

Memory type

  • DDR4 SmartMemory

Included hard drives

  • None included, up to 8 SFF drives supported

Optical drive type

  • None included

System fan features

  • 4 hot-plug fans, redundant

Graphic card

  • Choice of up to 2 double wide GPGPU's, or 3 single wide GPGPU's

Network controller

  • 1 HPE embedded 1Gb Ethernet 4-port 331i adapter

Storage controller

  • 1 HPE Smart Array P440ar/2 GB with Smart Storage Battery

Product dimensions (H x W x D)

3.44 x 17.54 x 26.75 in

Weight

32.6 lb

Infrastructure management

  • iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), HP OneView Advanced (optional), HP Insight Control (optional)
