  • CE5850-48T4S2Q-HI-B
  • CE5850-48T4S2Q-HI-B

CE5850-48T4S2Q-HI-B

Quote | Help
Overview

CE5850-48T4S2Q-HI-B is one of the Huawei Huawei CE5850-48T4S2Q-HI switches. Huawei CE5850-48T4S2Q-HI provides 48 * GE line-speed ports plus 4 * 10 GE and 2 * 40G upstream ports for stacking up to 16 switches. 10 GE and 40G ports enable creation of a non-blocking stack that can extend across geographical distances between data centers. Using the Huawei VRP8 software platform, CE5800 switches support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system). In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. CE5800 switches provide high-density GE access to help enterprises build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches for enterprise campus networks.

Quick Specs

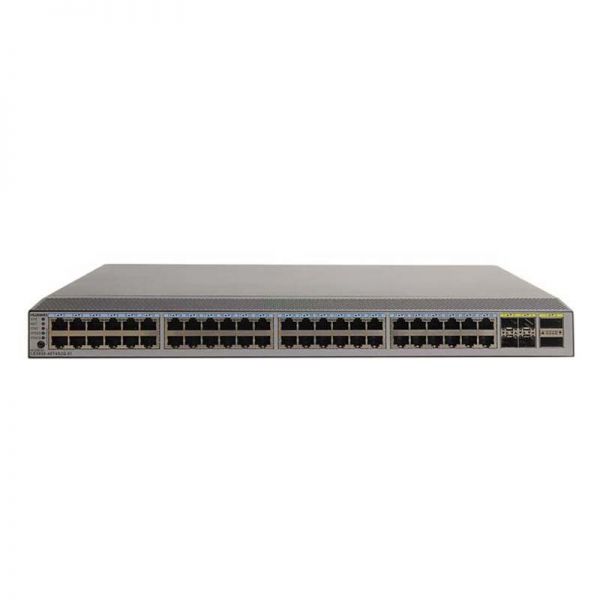

Figure 1 shows the appearance of CE5850-48T4S2Q-HI-B.

CE5850-48T4S2Q-HI-B Appearance

Table 1 shows the Quick Specs.

Product Code

CE5850-48T4S2Q-HI-B

Part Number

02350EYD

Software Version

V100R003C00 and later

Base-T Ports

48

SFP+ Ports

4

QSFP+ Ports

2

Switching Capacity

336 Gbit/s

Forwarding Rate

252 Mpps

Rated voltage range (with power module)

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum power consumption

131W

Airflow

Front-to-back or back-to-front

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

Weight (fully loaded)

8.8 kg (19.4 lb)

Product Details

Figure 2 shows the CE5850-48T4S2Q-HI-B rear view (port side).

CE5850-48T4S2Q-HI-B rear view (port side)

Note:

①

Forty-eight 10/100/1000BASE-T Ethernet electrical ports

②

Four 10GE SFP+ Ethernet optical ports

③

Two 40GE QSFP+ Ethernet optical ports

Figure 3 shows the CE5850-48T4S2Q-HI-B front view (power supply side).

CE5850-48T4S2Q-HI-B front view (power supply side)

Note:

①

Power supply slot 1

②

Fan slot 1

③

Console port

④

ETH management port

⑤

Bar code label

⑥

USB port

⑦

Fan slot 2

⑧

Power supply slot 2

The Modules

Table 2 shows the recommended elements for the CE5850-48T4S2Q-HI-B.

Model

Description

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)

GE Copper Transceiver

SFP-1000BaseT

Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

FAN-40EA

FAN-40EA-F



FAN-40EA-F fan module (front-to-back, air intake on panel)

FAN-40EA-B



FAN-40EA-B fan module (back-to-front, air exhaust on panel)

Compare to Similar Items

Table 3 shows the comparison of CE5850-48T4S2Q-HI-B and CE5850-48T4S2Q-EI-B.

Product Code

CE5850-48T4S2Q-HI-B

CE5850-48T4S2Q-EI-B

Part Number

02350EYD

02350EXY

Software Version

V100R003C00 and later

V100R001C00 and later

Base-T Ports

48

48

SFP+ Ports

4

4

QSFP+ Ports

2

2

Switching Capacity

336 Gbit/s

336 Gbit/s

Forwarding Rate

252 Mpps

252 Mpps

Maximum power consumption

131W

131W

Get more information

Do you have any question about the CE5850-48T4S2Q-HI-B

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

CE5850-48T4S2Q-HI-B Specification

Base-T Ports

 48

SFP+ Ports

 4

QSFP+ Ports

 2

Switching Capacity

336 Gbit/s

Forwarding Rates

252 Mpps

Airflow Design

Front-to-back or back-to-front

Device Virtualization

iStack

Super Virtual Fabric (SVF)

Network Virtualization

M-LAG

TRILL (CE5855 & CE5850)

VM Awareness

Agile Controller

SDN

Open Programmability System (OPS)

Traffic Analysis

NetStream

sFlow

VLAN

Adding access, trunk, and hybrid interfaces to VLANs

Default VLAN

QinQ

MUX VLAN

GVRP

ACL

ingress: 2.25k
egress: 1k

MAC Address Table

maximum: 128k

Dynamic learning and aging of MAC addresses

Static, dynamic, and black hole MAC address entries

Packet filtering based on source MAC addresses

MAC address limiting based on ports and VLANs

ARP (maximum)

16k

IPv4 FIB (maximum)

16k

IP Routing

IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS

IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ (not supported by CE5855)

IPv6 FIB (maximum)

8k

IPv6

IPv6 Neighbor Discovery (ND) (not supported by CE5855)

Path MTU Discovery (PMTU) (not supported by CE5855)

TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6

Multicast FIB (maximum)

4k

Multicast

IGMP, PIM-SM, PIM-DM, MSDP, and MBGP

IGMP snooping

IGMP proxy

Fast leave of multicast member interfaces

Multicast traffic suppression

Multicast VLAN

Reliability

LACP

STP, RSTP, VBST, MSTP

BPDU protection, root protection, and loop protection

Smart Link and multi-instance

DLDP

ERPS (G.8032)

VRRP, VRRP load balancing, and BFD for VRRP

BFD for BGP/IS-IS/OSPF/Static route

QoS

Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority

Actions of ACL, CAR, re-marking, and scheduling

Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR

Congestion avoidance mechanisms, including WRED and tail drop

Traffic shaping

Configuration and Maintenance

Console, Telnet, and SSH terminals

Network management protocols, such as SNMPv1/v2c/v3

File upload and download through FTP and TFTP

BootROM upgrade and remote upgrade

802.3az Energy Efficient Ethernet (EEE)

Hot patches

User operation logs

Zero-Touch Provisioning (ZTP)

Security and Management

802.1x authentication

Command line authority control based on user levels, preventing unauthorized users from using commands

DoS, ARP, and ICMP attack defenses

Port isolation, port security, and sticky MAC

Binding of the IP address, MAC address, interface number, and VLAN ID

Authentication methods, including AAA, RADIUS, and HWTACACS

Remote Network Monitoring (RMON)

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

Weight (fully loaded)

8.8 kg (19.4 lb)

Environmental Parameters

Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m)

Storage temperature: -40°C to 70°C (-40°F to 158°F)

Relative humidity: 5% to 95%, non-condensing

Operating Voltage

AC: 90V to 264V

DC: -38.4V to -72V

Maximum Power Consumption

131W
