AirEngine 5761-11WD

Overview

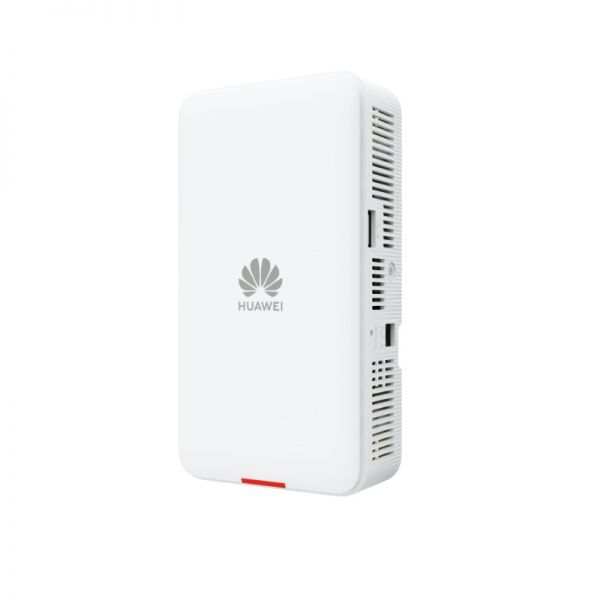

The Huawei AirEngine 5761-11WD is a high-performance, 11ax room-type access point designed to meet the wireless needs of modern enterprises. Featuring a 2 + 2 dual frequency setup, smart antenna technology, USB, and Bluetooth connectivity, this access point ensures robust and efficient network performance in a variety of environments.

Quick Spec

Brand Huawei
Model AirEngine 5761-11WD
Wi-Fi Standard 11ax
Frequency Bands 2.4 GHz and 5 GHz
Connectivity USB, Bluetooth

Product Features

  • ● 11ax wireless standard for faster data rates
  • ● 2 + 2 dual frequency for better coverage
  • ● Smart antenna technology to enhance signal strength
  • ● Built-in USB port for seamless device connectivity
  • ● Bluetooth support for easy device pairing

Product Applications

  • ● Office environments requiring stable and fast wireless connections for multiple devices
  • ● Educational institutions for high-bandwidth applications and seamless connectivity
  • ● Healthcare facilities needing reliable wireless networks for critical applications

Supported Options

Power Adapter HW-AC200
Poe Injector HW-PSE30
Additional Antenna HW-ANT5630

Compare to Similar Items

Model Difference
Huawei AirEngine 5760-11D Basic model with lower data rates
Huawei AirEngine 5771-11WD Advanced model with higher data throughput
Huawei AirEngine 5780-11D Outdoor model with weatherproof features

Get more information

Check Huawei AirEngine 5761-11WD price and AirEngine 5761-11WD datasheet, buy Huawei AirEngine 5761-11WD with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, contact us through Live Chat or Contact@huatenmax.com.

Specification

AirEngine 5761-11WD Specifications

Brand Huawei
Product Name AirEngine 5761-11WD
Wireless Standard 802.11ax
Frequency Bands 2.4 GHz, 5 GHz
Dual Frequency Yes
Smart Antenna Yes
USB Yes
Bluetooth Yes
Data Rate Up to 1.775 Gbps
RF Power 2x16 dBm
Antenna Gain 4.5 dBi (2.4GHz), 5 dBi (5GHz)
Max Users 512
Dimensions (WxDxH) 220x220x48 mm
Operating Temperature -10??C to 50??C
Power Supply AC: 100-240V, DC: 48V
Power Consumption 25W (Max)
Certifications CE, FCC, RoHS
Deployment Indoor
WLAN Port 1x 10/100/1000 Mbps Ethernet Port
Management Web-based, SNMP
