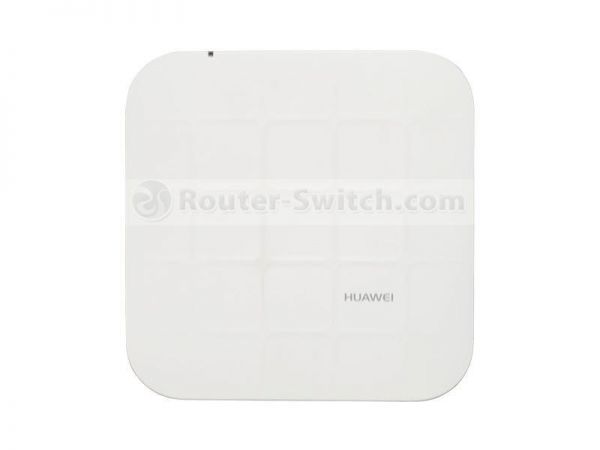

AP7030DE-DC

Product Number

AP7030DE-DC

AC/DC adapter

Yes

Power Input

12V DC ±10%

PoE: −48V DC

Maximum Power Consumption

19W

Operating Temperature

−20°C to 50°C

Antenna Type/Antenna Gain

Dual-band smart antenna/2.4 GHz: 5 dBi, 5 GHz: 5 dBi

Maximum Number of Users

≤ 256

Maximum Transmit Power

25 dBm (combined power)

MIMO: Spatial Streams

3 x 3:3

Radio Protocols

802.11a/b/g/n/ac

Maximum Rate

1.9 Gbit/s

Dimensions (H x W x D)

53 mm x 220 mm x 220 mm

Weight

1.1 kg

①

Default button: Restores factory settings if you hold down the button more than three seconds

②

Console interface

③

GE1: 10M/100M/1,000M interface, connects to the wired Ethernet

④

GE0/PoE: 10M/100M/1,000M interface, connects to the wired Ethernet and supports PoE power supply

⑤

Power input interface: 12V DC

⑥

Security slot: Connects to a security lock and protects the AP against theft

Model

AP7030DE-DC

AP7030DE

AC/DC adapter

Yes

None

Antenna Type/Antenna Gain

Dual-band smart antenna/2.4 GHz: 5 dBi, 5 GHz: 5 dBi

Dual-band smart antenna/2.4 GHz: 5 dBi, 5 GHz: 5 dBi

Maximum Number of Users

≤ 256

≤ 256

Maximum Transmit Power

25 dBm (combined power)

25 dBm (combined power)

MIMO: Spatial Streams

3 x 3:3

3 x 3:3

Radio Protocol

802.11a/b/g/n/ac

802.11a/b/g/n/ac

Maximum Speed

1.9 Gbit/s

1.9 Gbit/s

AP7030DE-DC Specifications

Technical

Dimensions (H × W × D)

2.1 in. x 8.7 in. x 8.7 in. (53 mm x 220 mm x 220 mm)

Weight

2.4 lb. (1.1 kg)

System memory

256 MB DDR3

32 MB Flash

Power

AC/DC adapter

Yes

Power input

DC 12V ± 10%

POE Power: -48V DC.

PoE function IEEE compliant802.3at

Maximum power consumption

19W

Note: Maximum power consumption depends on local laws and regulations

Environment

Operating temperature

-4°F to 122°F (-20°C to 50°C)

Storage temperature

-40°F to 158°F (-40°C to 70°C)

Humidity

5% to 95% (Non-condensing)

Waterproof grade

IP41

Altitude

–60m to 5,000m

Radio specifications

Antenna Type

Built-in dual-band (up to 12 antennas)

Antenna Gain

2.4G: 5 dBi

5G: 5 dBi

Maximum Number of Concurrent Users

≤ 256

Maximum Transmit Power

20 dBm

You can lower transmit power to 20 dB maximum in 1 dB increments

Note: Actual transmit power depends on local laws

Maximum Number of Non-overlapping Channels

2.4 GHz

802.11b/g

·20 MHz: 3

802.11n

·20 MHz: 3

·40 MHz: 1

5 GHz

802.11a

·20 MHz: 5

802.11n

·20 MHz: 5

·40 MHz: 2

802.11ac

·20 MHz: 5

·40 MHz: 2

·80 MHz: 1

Note: The number of non-overlapping channels allowed varies in different countries. For details, see the Country Codes and Channels compliance status

Channel Rates

802.11b: 1, 2, 5.5, and 11 Mbit/s

802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

802.11n data rate (2.4 GHz and 5 GHz): 6.5 Mbit/s to 600 Mbit/s

802.11ac data rate (5 GHz): 6.5 Mbit/s  to 1,300 Mbit/s

Receiver Sensitivity

2.4 GHz

802.11b (CCK)

-97 dBm @ 1 Mbit/s

-92 dBm @ 2 Mbit/s

-93 dBm @ 5.5 Mbit/s

-89 dBm @ 11 Mbit/s

2.4 GHz

802.11g (non-HT20)

-91 dBm @ 6 Mbit/s

-90 dBm @ 9 Mbit/s

-90 dBm @ 12 Mbit/s

-88 dBm @ 18 Mbit/s

-84 dBm @ 24 Mbit/s

-81 dBm @ 36 Mbit/s

-77 dBm @ 48 Mbit/s

-74 dBm @ 54 Mbit/s

2.4 GHz

802.11n (HT20):

-90 dBm @ MCS1

-88 dBm @ MCS2

-82 dBm @ MCS3

-79 dBm @ MCS4

-75 dBm @ MCS5

-73 dBm @ MCS6

-72 dBm @ MCS7

-87 dBm @ MCS8

-86 dBm @ MCS9

-86 dBm @ MCS10

-83 dBm @ MCS11

-79 dBm @ MCS12

-75 dBm @ MCS13

-74 dBm @ MCS14

-73 dBm @ MCS15

-87 dBm @ MCS16

-86 dBm @ MCS17

-86 dBm @ MCS18

-83 dBm @ MCS19

-79 dBm @ MCS20

-75 dBm @ MCS21

-74 dBm @ MCS22

-73 dBm @ MCS23

2.4 GHz

802.11n (HT40):

-86 dBm @ MCS0

-86 dBm @ MCS1

-84 dBm @ MCS2

-80 dBm @ MCS3

-77 dBm @ MCS4

-72 dBm @ MCS5

-70 dBm @ MCS6

-68 dBm @ MCS7

-86 dBm @ MCS8

-86 dBm @ MCS9

-84 dBm @ MCS10

-80 dBm @ MCS11

-77 dBm @ MCS12

-72 dBm @ MCS13

-71 dBm @ MCS14

-70 dBm @ MCS15

-86 dBm @ MCS16

-86 dBm @ MCS17

-84 dBm @ MCS18

-80 dBm @ MCS19

-77 dBm @ MCS20

-72 dBm @ MCS21

-71 dBm @ MCS22

-70 dBm @ MCS23

5 GHz

802.11a (non-HT20)

-91 dBm @ 6 Mbit/s

-90 dBm @ 9 Mbit/s

-89 dBm @ 12 Mbit/s

-86 dBm @ 18 Mbit/s

-83 dBm @ 24 Mbit/s

-80 dBm @ 36 Mbit/s

-75 dBm @ 48 Mbit/s

-74 dBm @ 54 Mbit/s

5 GHz

802.11n (HT20)

-90 dBm @ MCS0

-88 dBm @ MCS1

-86 dBm @ MCS2

-81 dBm @ MCS3

-78 dBm @ MCS4

-74 dBm @ MCS5

-72 dBm @ MCS6

-71 dBm @ MCS7

-89 dBm @ MCS8

-86 dBm @ MCS9

-84 dBm @ MCS10

-80 dBm @ MCS11

-77 dBm @ MCS12

-72 dBm @ MCS13

-70 dBm @ MCS14

-69 dBm @ MCS15

-89 dBm @ MCS16

-86 dBm @ MCS17

-84 dBm @ MCS18

-80 dBm @ MCS19

-77 dBm @ MCS20

-72 dBm @ MCS21

-70 dBm @ MCS22

-69 dBm @ MCS23

5 GHz

802.11n (HT40)

-87 dBm @ MCS0

-85 dBm @ MCS1

-83 dBm @ MCS2

-79 dBm @ MCS3

-75 dBm @ MCS4

-71 dBm @ MCS5

-68 dBm @ MCS6

-67 dBm @ MCS7

-86 dBm @ MCS8

-83 dBm @ MCS9

-81 dBm @ MCS10

-76 dBm @ MCS11

-73 dBm @ MCS12

-69 dBm @ MCS13

-68 dBm @ MCS14

-66 dBm @ MCS15

-86 dBm @ MCS16

-83 dBm @ MCS17

-81 dBm @ MCS18

-76 dBm @ MCS19

-73 dBm @ MCS20

-69 dBm @ MCS21

-68 dBm @ MCS22

-66 dBm @ MCS23

5 GHz

802.11ac (VTH20)

-89 dBm @ MCS0NSS1

-86 dBm @ MCS1NSS1

-84 dBm @ MCS2NSS1

-80 dBm @ MCS3NSS1

-77 dBm @ MCS4NSS1

-73 dBm @ MCS5NSS1

-71 dBm @ MCS6NSS1

-70 dBm @ MCS7NSS1

 -65 dBm @ MCS8NSS1

5 GHz

802.11ac (VTH40)

-86 dBm @ MCS0NSS1

-83 dBm @ MCS1NSS1

-81 dBm @ MCS2NSS1

-77 dBm @ MCS3NSS1

-74 dBm @ MCS4NSS1

-70 dBm @ MCS5NSS1

-68 dBm @ MCS6NSS1

 -67 dBm @ MCS7NSS1

 -63 dBm @ MCS8NSS1

 -60 dBm @ MCS9NSS1

5 GHz

802.11ac (VTH80)

-82 dBm @ MCS0NSS1

-80 dBm @ MCS1NSS1

-78 dBm @ MCS2NSS1

-74 dBm @ MCS3NSS1

-71 dBm @ MCS4NSS1

-66 dBm @ MCS5NSS1

-65 dBm @ MCS6NSS1

-64 dBm @ MCS7NSS1

-59 dBm @ MCS8NSS1

-57 dBm @ MCS9NSS1
