AP6310SN-GN

Product Number

AP6310SN-GN

Dimensions (H x W x D)

150 mm x 130 mm x 35 mm

Power Input

12V DC ±10%

PoE: −48V DC (in compliance with IEEE 802.3af/at)

Maximum Power Consumption

8.3W

Operating Temperature

−10℃ to 50℃

Antenna Type/Antenna Gain

Built-in antenna/2.4 GHz: 2 dBi, 5 GHz: 2.5 dBi

Maximum Number of Users

≤ 128

Maximum Transmit Power

27 dBm

MIMO: Spatial Streams

1 x 1:1

Radio Protocols

802.11b/g/n

Maximum Speed

150 Mbit/s

Net Weight

1.3 lb. (0.6 kg)

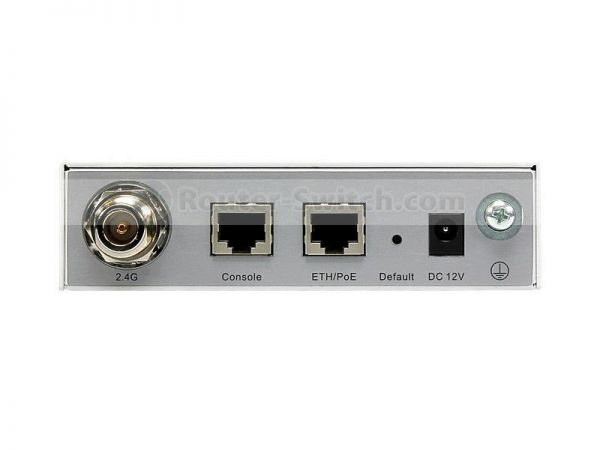

①

N-type radio connector interface

④

Default button: restores factory settings if you hold down the button more than 3s.

②

Console interface

⑤

Power input interface: 12 V DC.

③

ETH/PoE interface: a 10/100/1000M interface, which connects

to the wired Ethernet and supports the PoE power supply.

⑥

Ground point: connects to a ground cable.

Model

Description

CRFSM0201

RF Cable,2m,N50SM-V,COAX50-7.2/2.74B,N50SM-V,RG8 Jumper

CRFSM0301

RF Cable,3m,N50SM-V,COAX50-7.2/2.74B,N50SM-V,RG8 jumper

CRFSM0501

RF Cable,5m,N50SM-XIII,COAX50-8.7/3.55B,N50SM-XIII,1/2 Inch Superflexible Jumper

CRFSM0502

Radio Frequency Cable,5m,N50SM-VIII,SYV50-7/7(0.7),N50SM-VIII,RG8 Jumper

GM-ANT FED-1/2

Coaxial Connector,N,50ohm,Straight/Male, for 1/2" superflexible feeder cable

C0NMCON01

RF Coaxial Connector, Type N,50ohm,Plug,Straight,Male,Nut Installation-Matching RG-8U

A0RFCON04

Coaxial Connector-N-50ohm-Straight-Female-For Cable with Ntype connector-Dual-female

Adapter, Coated with Ternary Alloy

ACN7/8001

Coaxial Connector,N,50ohm,Straight/Male, for 7/8 Inch General Feeder Cable

Models

AP6010SN-GN

AP6310SN-GN

Power Input

12V DC ±10%

PoE: –48V DC (in compliance with IEEE 802.3af/at)

12V DC ±10%

PoE: −48V DC (in compliance with IEEE 802.3af/at)

Maximum Power Consumption

6.5W

8.3W

Operating Temperature

–10℃ to 50℃

−10℃ to 50℃

Antenna Type/Antenna Gain

Built-in antenna/4 dBi

Built-in antenna/2.4 GHz: 2 dBi, 5 GHz: 2.5 dBi

Maximum Transmit Power

23 dBm (combined power)

27 dBm

MIMO: Spatial Streams

2 x 2:2

1 x 1:1

Wireless Protocols

802.11b/g/n

802.11b/g/n

Highest Rate

300 Mbit/s

150 Mbit/s

AP6310SN-GN Specifications

Technical

Dimensions (H × W × D)

1.3 in. x 5.1 in. x 5.9 in. (35 mm x 130 mm x 150 mm)

Weight

1.3 lb. (0.6 kg)

System memory

128 MB DDR2

32 MB flash memory

Power

Power input

DC 12V ±10%

POE power: -48V DC

PoE function complies with IEEE 802.3af and 802.3at

Maximum power consumption

8.3W

Note: Maximum power consumption depends on local laws

Environment

Operating temperature

14^oF to 122^oF (-10^oC to 50^oC)

Storage temperature

-40^oF to 158^oF (-40^oC to 70^oC)

Humidity

5% to 95% (Non-condensing)

Waterproof grade

IP31

Altitude

196.8 ft. to 16,404.1 ft. (-60m to 5,000m)

Radio

Radio Connector Type

N-type (Female)

Antenna Type

Depends on the type of antennas in the indoor antenna system

Maximum Number of Concurrent Users

128

Maximum Transmit Power

27 dBm

You can adjust the transmit power to the maximum of 20 dB in 1 dB steps. Note: Actual transmit power depends on local laws and regulations.

Maximum Number of Non-overlapping Channels

802.11b/g

·20 MHz: 3

802.11n

·20 MHz: 3

·40 MHz: 1

Note: The number of non-overlapping channels allowed varies in different countries. For details, see the Country Codes and Channels compliance status

Channel Rates

802.11b: 1, 2, 5.5, and 11 Mbit/s

802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

802.11n data rate: 2.4 GHz

GI2 = 800 ns

GI = 400 ns

20 MHz (Mbit/s)

40 MHz (Mbit/s)

20 MHz (Mbit/s)

40 MHz (Mbit/s)

6.5 @ MCS10

13.5 @ MCS0

7.2 @ MCS0

15 @ MCS0

13 @ MCS1

27 @ MCS1

14.4 @ MCS1

30 @ MCS1

19.5 @ MCS2

40.5 @ MCS2

21.7 @ MCS2

45 @ MCS2

26 @ MCS3

54 @ MCS3

28.9 @ MCS3

60 @ MCS3

39 @ MCS4

81 @ MCS4

43.3 @ MCS4

90 @ MCS4

52 @ MCS5

108 @ MCS5

57.8 @ MCS5

120 @ MCS5

58.5 @ MCS6

121.5 @ MCS6

65 @ MCS6

135 @ MCS6

65 @ MCS7

135 @ MCS7

72.2 @ MCS7

150 @ MCS7

Note: Modulation Coding Scheme (MCS) index: Determines the spatial flow quantity, modulation, coding rate, and data rate

GI Indicates the period in nanoseconds the radio listens between packets

Receiver Sensitivity

802.11b (CCK)

·-97 dBm @ 1 Mbit/s

·-92 dBm @ 2 Mbit/s

·-92 dBm @ 5.5 Mbit/s

·-90 dBm @ 11 Mbit/ss

802.11g (Non-HT20)

·-92 dBm @ 6 Mbit/s

·-91 dBm @ 9 Mbit/s

·-90 dBm @ 12 Mbit/s

·-87 dBm @ 18 Mbit/s

·-83 dBm @ 24 Mbit/s

·-80 dBm @ 36 Mbit/s

·-76 dBm @ 48 Mbit/s

·-74 dBm @ 54 Mbit/s

802.11n (HT20)

·-92 dBm @ MCS0/8

·-89 dBm @ MCS1/9

·-86 dBm @ MCS2/10

·-82 dBm @ MCS3/11

·-79 dBm @ MCS4/12

·-74 dBm @ MCS5/13

·-73 dBm @ MCS6/14

·-71 dBm @ MCS7/15

802.11n (HT40)

·-89 dBm @ MCS0/8

·-86 dBm @ MCS1/9

·-83 dBm @ MCS2/10

·-79 dBm @ MCS3/11

·-76 dBm @ MCS4/12

·-72 dBm @ MCS5/13

·-70 dBm @ MCS6/14

-68 dBm @ MCS7/15
