AP6010DN-AGN-USA

Overview

Huawei AP6010DN-AGN-USA Access Point boosts the coverage and quality of WLAN connections for delay-sensitive services and high-bandwidth applications, such as VoWLAN and multimedia streaming. Offering both high capacity and pervasive coverage, Huawei AP6010 series APs work best in simple building structures with open/semi-open wireless environments that have a high density of users needing quality wireless services scenarios that include enterprise offices, campuses, hospitals, large shopping malls and exhibition centers. AP6010DN-AGN-USA provides AC/DC adapter (US), United States dedicated.

Quick Specs

Figure 1 shows the appearance of the AP6010DN-AGN-USA.

AP6010DN-AGN-USA Appearance

Table 1 shows the quick specs.

Product Number

AP6010DN-AGN-USA

Power Input

12V DC ±10%

PoE: –48V DC (in compliance with IEEE 802.3af/at)

Maximum Power Consumption

10.2W

Operating Temperature

–10℃ to 50℃

Antenna Type/Antenna Gain

Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi

Maximum Number of Users

≤ 128

Maximum Transmit Power

23 dBm (combined power)

MIMO: Spatial Streams

2 x 2:2

Wireless Protocols

802.11a/b/g/n

Highest Rate

600 Mbit/s

Dimensions (H × W × D)

180 mm x 180 mm x 50 mm

Weight

0.8 lb. (0.4 kg)

Product Details

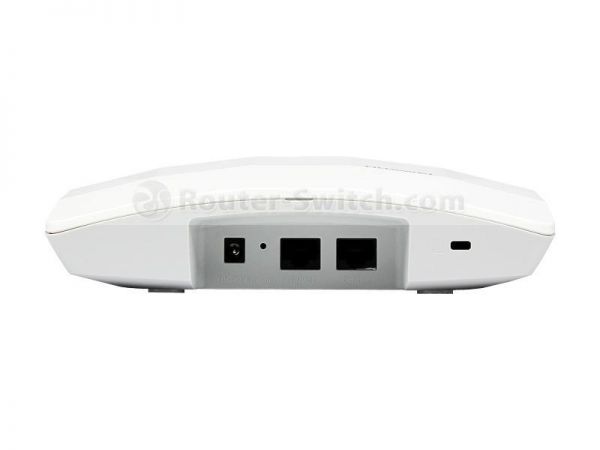

Figure 2 shows the ports of AP6010DN-AGN-USA.

AP6010DN-AGN-USA Ports

Note:

Power input interface: 12 V DC.

Default button: restores factory settings if you hold down the button more than 3s.

ETH/PoE interface: a 10/100/1000M interface, which connects to the wired Ethernet and supports PoE power supply.

Console interface.

Lock interface: protects the AP against theft.

☆ Different power adapters are delivered with the AP products according to standards in the countries or regions where the AP products are delivered. These countries and regions are identified by the barcode on an AP's nameplate, including:

USA (the AP is sold only in the U.S)

☆ To be powered by other devices, the GE/PoE port need a Huawei Power Adapter - W0ACPSE14.

Compare to Similar Items

Table 2 shows the comparison of AP2010DN and AP6010DN-AGN-USA.

Models

AP2010DN

AP6010DN-AGN-USA

Power Input

PoE power supply in compliance with IEEE 802.3af/at

12V DC ±10%

PoE: –48V DC (in compliance with IEEE 802.3af/at)

Maximum Power Consumption

5.5W

10.2W

Operating Temperature

0°C to +40°C

–10℃ to 50℃

Antenna Type/Antenna Gain

Built-in antenna/2.4 GHz: 2 dBi, 5 GHz: 2.5 dBi

Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi

Maximum Transmit Power

19 dBm?(combined power)

23 dBm (combined power)

MIMO: Spatial Streams

2 x 2:2

2 x 2:2

Wireless Protocols

802.11a/b/g/n

802.11a/b/g/n

Highest Rate

300 Mbit/s

600 Mbit/s

Get more information

Do you have any question of Huawei AP6010DN-AGN-USA access point

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

AP6010DN-AGN-USA Specification

Power Input

12V DC ±10%

PoE: –48V DC (in compliance with IEEE 802.3af/at)

Maximum Power Consumption

10.2W

Operating Temperature

–10℃ to 50℃

Antenna Type/Antenna Gain

Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi

Maximum Number of Users

≤ 128

Maximum Transmit Power

23 dBm (combined power)

MIMO: Spatial Streams

2 x 2:2

Wireless Protocols

802.11a/b/g/n

Highest Rate

600 Mbit/s

Dimensions (H × W × D)

180 mm x 180 mm x 50 mm

Weight

0.8 lb. (0.4 kg)
